Phase 4 Analog Drive
About the Phase 4 Analog Drive PCB
Phase 4 Analog Drive is an open source PCB design by raffcorreia, published on GitHub under the MIT license. It is a 2-layer board measuring 85 × 45 mm, with 17 components from 11 distinct parts.
Other key parts include the MC74HC4066ADTR2G and 74LVC1G66LT05ARCQ. By type, the board carries 10 resistors, 3 capacitors, 2 ICs and 2 connectors.
From the project
REST API and local touch UI for invasive control of Samsung CJ791 monitors by electrically emulating the front-panel JOG button. Uses an inline hardware mod on the JOG harness and DDC/CI for feedback, status, and supported monitor functions like input detection and power control.
samsung-jog-api is a hardware-and-software project to make a Samsung CJ791 monitor locally programmable by electrically emulating its front-panel JOG control, exposing that behavior through a local REST API, and hosting a touch-first local control interface on a Raspberry Pi-based control deck.

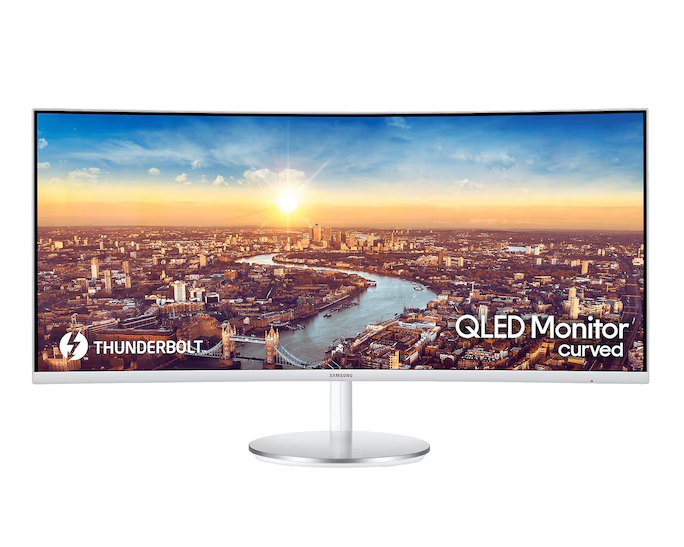

This repository is organized around the Samsung LC34J791WTNXZA / CJ791 hardware in my setup. Related Samsung monitors with a similar multi-jog front-panel board may be adaptable, but the measurements and assumptions here are specific to this unit unless noted otherwise.
Main components on the Phase 4 Analog Drive
Phase 4 Analog Drive bill of materials (BOM)
17 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC74HC4066ADTR2G onsemi | TSSOP-14_4.4x5mm_P0.65mm | U1 |
| 1 | 74LVC1G66LT05ARCQ GR | SOT-23-5 | U2 |
| 1 | PinHeader_1x03_P2.54mm MONITOR_DRIVE Generic | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | PinHeader_1x07_P2.54mm HOST_CTRL Generic | PinHeader_1x07_P2.54mm_Vertical | J2 |
| 2 | GRM188R71C104KA01D 100n Murata | C_0603_1608Metric | C1, C2 |
| 1 | GRM188R61A105KA61D 1u Murata | C_0603_1608Metric | C3 |
| 1 | TBD_AFTER_PROTOTYPE 30k Measured target | R_0603_1608Metric | R1 |
| 1 | TBD_AFTER_PROTOTYPE 10k Measured target | R_0603_1608Metric | R2 |
| 1 | TBD_AFTER_PROTOTYPE 3.3k Measured target | R_0603_1608Metric | R3 |
| 2 | TBD_AFTER_PROTOTYPE 22k Measured target | R_0603_1608Metric | R4, R6 |
| 5 | RC0603FR-07100KL 100k Yageo | R_0603_1608Metric | R7, R8, R9, R10, R11 |
Phase 4 Analog Drive design files
The KiCad project lives in the raffcorreia/samsung-jog-api repository on GitHub; these links point at the commit this page was built from.
Phase 4 Analog Drive: common questions
How big is the Phase 4 Analog Drive PCB?
The Phase 4 Analog Drive measures 85 × 45 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Phase 4 Analog Drive?
17 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Phase 4 Analog Drive design files?
From the raffcorreia/samsung-jog-api repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Phase 4 Analog Drive design in my own project?
Yes, under the terms of its MIT license, which raffcorreia chose for the repository.
