D3 Face
About the D3 Face PCB
D3 Face is an open source PCB design by rascimatec, published on GitHub. It is a 2-layer board measuring 100 × 70 mm, with 31 components from 6 distinct parts.
Other key parts include the MAX7219. By type, the board carries 12 capacitors, 6 ICs, 6 LEDs, 6 resistors and 1 connector.

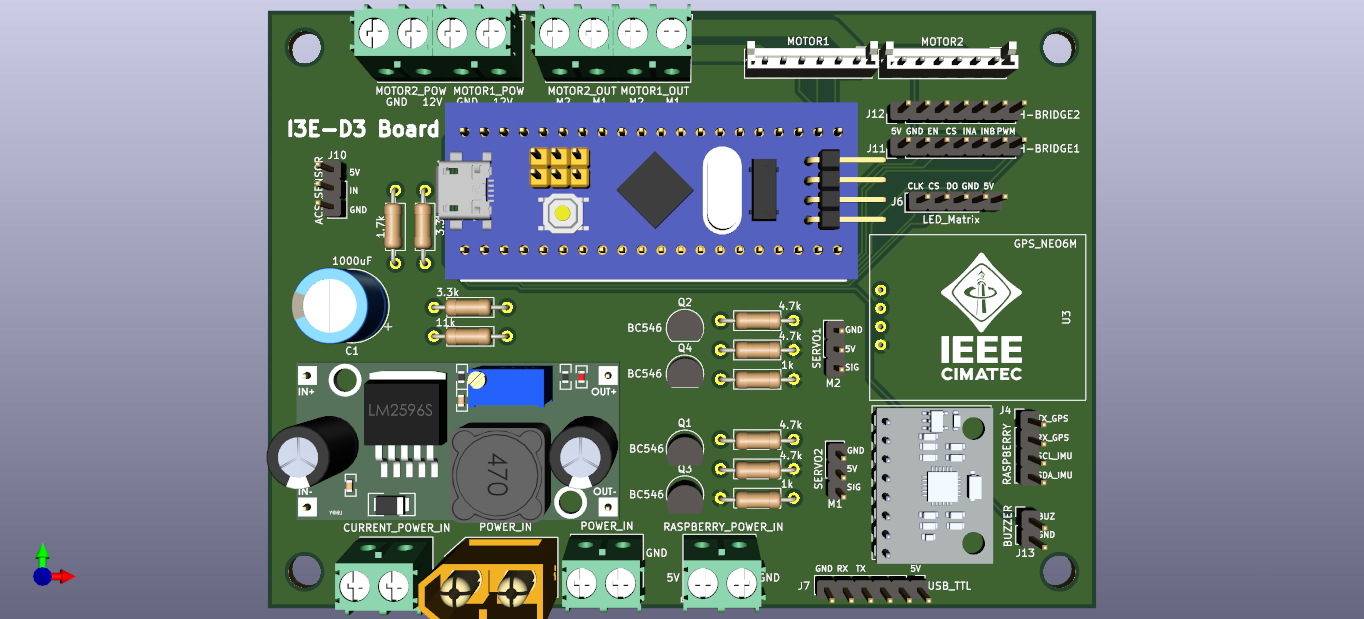

From the project
I3E-D3 Electronics
Main components on the D3 Face
D3 Face bill of materials (BOM)
31 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | MAX7219 | DIP-24_W7.62mm_Socket_LongPads | U1, U2, U3, U4, U5, U6 |
| 1 | Conn_01x05_Male | PinHeader_1x05_P2.54mm_Horizontal | J1 |
| 6 | Matrix_LED_8x8 | Matrix_LED_8x8 | LED1, LED2, LED3, LED4, LED5, LED6 |
| 6 | 0.1u | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1, C2, C3, C7, C8, C9 |
| 6 | 10u | CP_Radial_D4.0mm_P2.00mm | C4, C5, C6, C10, C11, C12 |
| 6 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4, R5, R6 |
D3 Face design files
The KiCad project lives in the rascimatec/i3e-d3_Electronics repository on GitHub; these links point at the commit this page was built from.
D3 Face: common questions
How big is the D3 Face PCB?
The D3 Face measures 100 × 70 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the D3 Face?
31 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the D3 Face design files?
From the rascimatec/i3e-d3_Electronics repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the D3 Face design in my own project?
The repository has no license, so all rights stay with rascimatec. Use it as a reference, and ask the author before reusing the design.
