Dvi sock

raybello·KICAD-PCBs·Pico-DVI-Sock-master/dvi-sock.kicad_pcb

Dvi sock PCB layout, top view — open source board by raybello

About the Dvi sock PCB

Dvi sock is an open source PCB design by raybello, published on GitHub. It is a 2-layer board measuring 25.3 × 22.5 mm, with 13 components from 8 distinct parts.

By type, the board carries 8 resistors and 5 connectors.

From the project

Repository for KICAD PCB Designs

You surface mount solder the Raspberry end of your Pico on top of this board (thanks to the castellations on Pico's header footprints). This gives you an HDMI-shaped socket at the opposite end to the micro USB socket, which you can drive DVI-D video through. The remaining Pico pins can still have headers inserted, so that the board can be inserted into a breadboard.

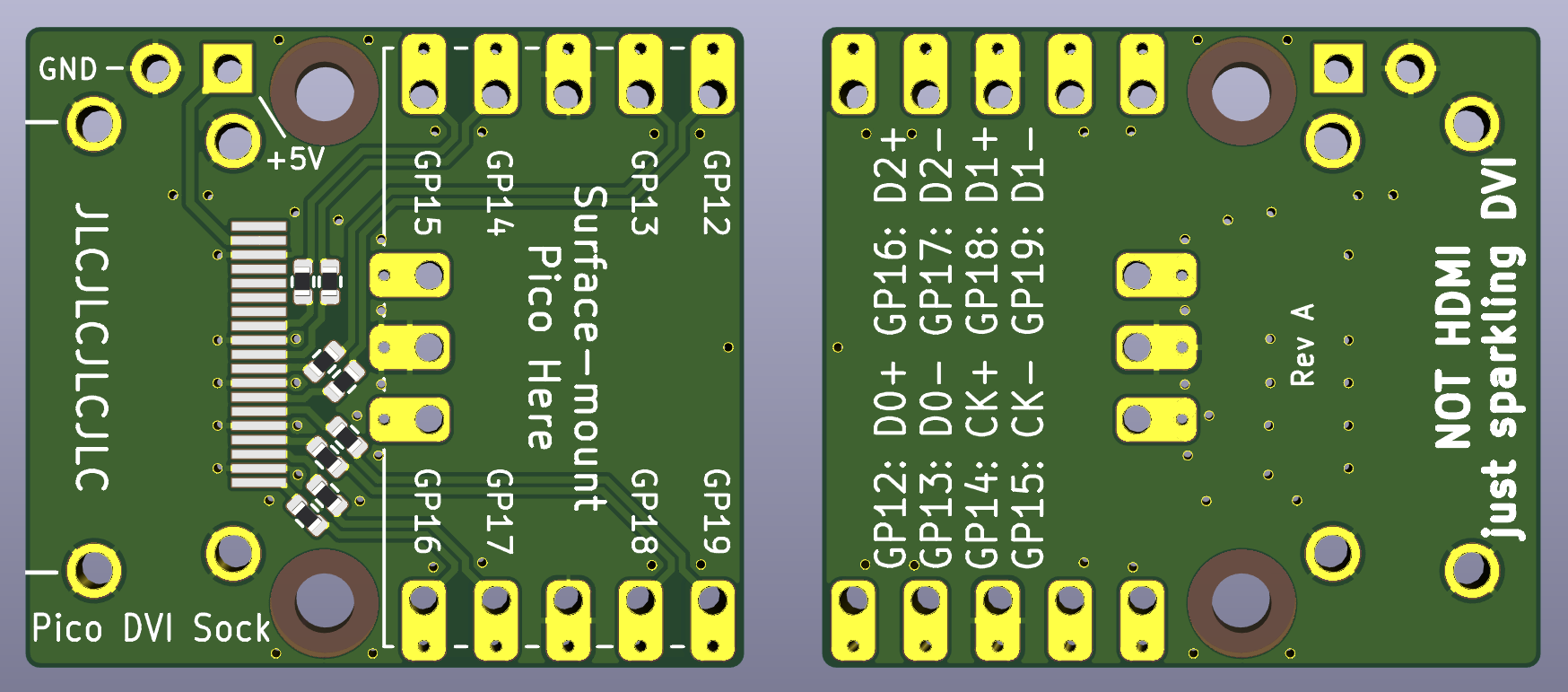

Dvi sock, from the project README
From the project README

Dvi sock bill of materials (BOM)

13 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
Conn_01x05
J1, J2
1
CONN_01X07
Conn_01x03
J3
1
CONN_02X07_ODD_EVEN
NOT_HDMI_A
J4
1
2.54mm_2p_nofit
J5
1
3.24K
270
R1
1
10K
270
R2
4
270
R3, R4, R7, R8
2
4K7
270
R5, R6

Dvi sock design files

The KiCad project lives in the raybello/KICAD-PCBs repository on GitHub; these links point at the commit this page was built from.

Dvi sock: common questions

How big is the Dvi sock PCB?

The Dvi sock measures 25.3 × 22.5 mm, has 2 copper layers and is 1 mm thick.

How many components are on the Dvi sock?

13 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Dvi sock design files?

From the raybello/KICAD-PCBs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Dvi sock design in my own project?

The repository has no license, so all rights stay with raybello. Use it as a reference, and ask the author before reusing the design.
