Led Torch
About the Led Torch PCB
Led Torch is an open source PCB design by Reon-02, published on GitHub. It is a 2-layer board measuring 57.4 × 26.4 mm, with 4 components from 4 distinct parts.
By type, the board carries 1 battery holder, 1 switch, 1 diode and 1 resistor.
From the project
This project is a compact LED torch PCB designed as part of the PCB Design with KiCad - Updated for KiCad 9 Udemy course.
This project is a compact LED torch PCB designed as part of the PCB Design with KiCad - Updated for KiCad 9 Udemy course.

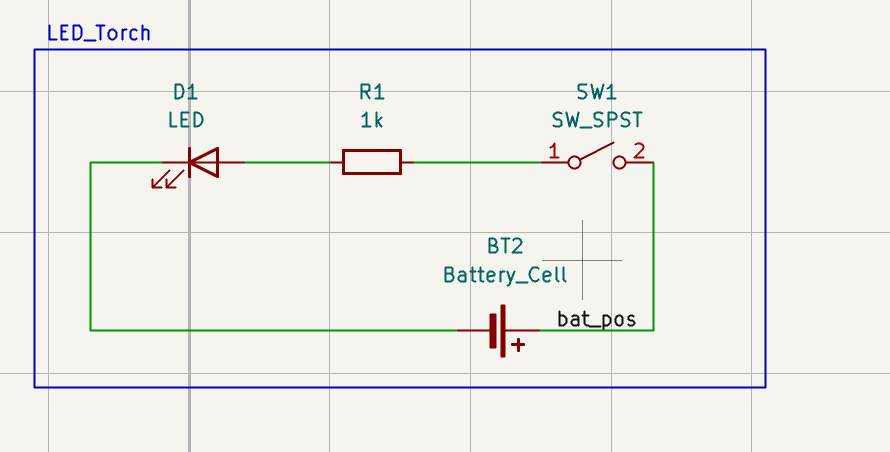

The circuit uses a single battery cell to power an LED through a current-limiting resistor and an SPST switch.
This project was recreated in KiCad as part of my practical PCB design learning process.
- Single-cell battery - SPST ON/OFF switch - 1 kΩ current-limiting resistor - 5 mm LED
Led Torch bill of materials (BOM)
4 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Battery Cell | BatteryHolder_Keystone_1058_1x2032 | BT1 |
| 1 | SW_SPST | SW_TH_Tactile_Omron_B3F-100x | SW1 |
| 1 | LED | LED_D5.0mm | D1 |
| 1 | 1k | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
Led Torch design files
The KiCad project lives in the Reon-02/PCB-Design-with-KiCad-Udemy repository on GitHub; these links point at the commit this page was built from.
Led Torch: common questions
How big is the Led Torch PCB?
The Led Torch measures 57.4 × 26.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Led Torch?
4 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Led Torch design files?
From the Reon-02/PCB-Design-with-KiCad-Udemy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Led Torch design in my own project?
The repository has no license, so all rights stay with Reon-02. Use it as a reference, and ask the author before reusing the design.
