2332 2364-ROM Adapter
About the 2332 2364-ROM Adapter PCB
2332 2364-ROM Adapter is an open source PCB design by RetroStack, published on GitHub under the MIT license. It is a 2-layer board measuring 19.3 × 51.2 mm, with 14 components from 10 distinct parts.
Other key parts include the 27512 and 74LS04. By type, the board carries 8 jumpers, 3 ICs, 2 connectors and 1 resistor.
From the project

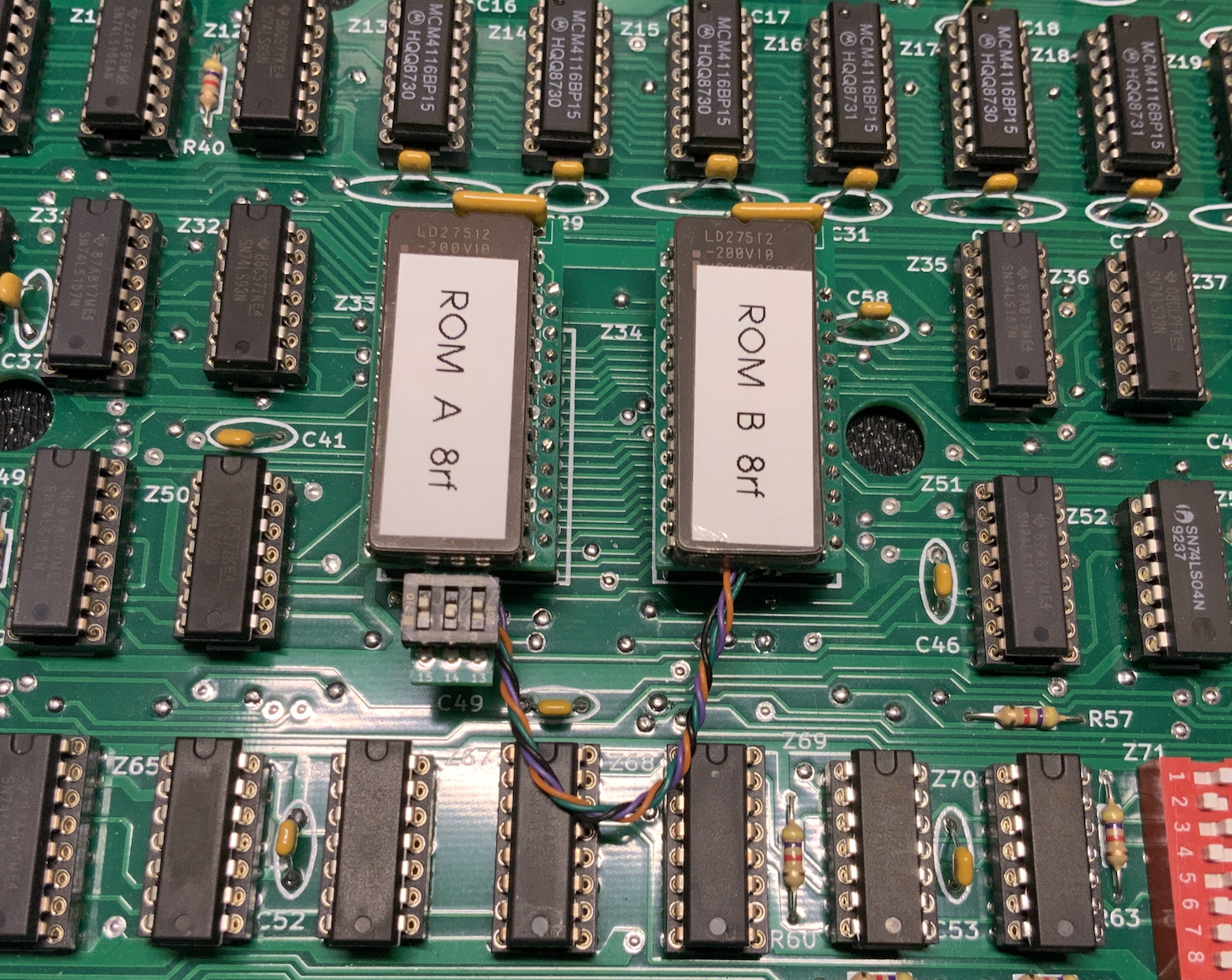

Compact and universal 2332 and 2364 ROM adapter
This repository provides an adapter for 2332 and 2364 ROMs for vintage computers. With an optional hidden inverter chip on the bottom, all versions of these boards can be emulated. The adapter was designed to have the smallest possible footprint while still using through-hole components for a vintage look. It includes an optional detachable selector board for DIP switches or jumpers. Without the detachable selector board, solder jumpers can be used instead. The provided pads on the bottom allow for synchronized address selection across multiple adapters. The entire project is available under…
Main components on the 2332 2364-ROM Adapter
2332 2364-ROM Adapter bill of materials (BOM)
14 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_02x12_Counter_Clockwise | DIP-24_W15.24mm | U1 |
| 1 | 27512 | DIP-28_W15.24mm | U2 |
| 1 | 74LS04 | SOIC-14_3.9x8.7mm_P1.27mm | U3 |
| 1 | Conn_02x03_Odd_Even | DIPJumper_3 | J1 |
| 1 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical | J2 |
| 3 | SolderJumper_2_Open | SolderJumper_2_Open_RoundedPad | JP1, JP2, JP3 |
| 3 | Switch for 2332! | SolderJumper-3_P1.3mm_Bridged12_RoundedPad1.0x1.5mm_NumberLabels | JP4, JP5, JP7 |
| 1 | SolderJumper_2_Bridged | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP6 |
| 1 | SolderJumper_3_Open | SolderJumper-3_P1.3mm_Open_RoundedPad1.0x1.5mm_NumberLabels | JP8 |
| 1 | R_Network03 | R_Array_SIP4 | RN1 |
2332 2364-ROM Adapter design files
The KiCad project lives in the RetroStack/2332_2364-ROM_Adapter repository on GitHub; these links point at the commit this page was built from.
2332 2364-ROM Adapter: common questions
How big is the 2332 2364-ROM Adapter PCB?
The 2332 2364-ROM Adapter measures 19.3 × 51.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 2332 2364-ROM Adapter?
14 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the 2332 2364-ROM Adapter design files?
From the RetroStack/2332_2364-ROM_Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 2332 2364-ROM Adapter design in my own project?
Yes, under the terms of its MIT license, which RetroStack chose for the repository.
