About the Stratum macropad PCB

Stratum macropad is an open source PCB design by ReuTheCoder, published on GitHub. It is a 2-layer board measuring 77 × 100 mm, with 30 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 9 relays, 9 LEDs, 9 diodes, 1 IC, 1 connector and 1 switch.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Personal macropad creation made for the Hack Club Stardance Challenge by following the "HackPad V5" mission.

- 5 Different Layers: Main, Productivity, Design, Scientific and Media. The keys and rotary encoder change functions on each mode - The OLED that displays current layer, settings menu and a transition animation - RGB Backlights change color on each layer - A sleep and brightness control in settings - Rotary encoder volume control

The 5 layers will likely be updated as I use the macropad and see what does and does not work. A future idea I have in mind is adding VIA support for quick macro functionality edits.

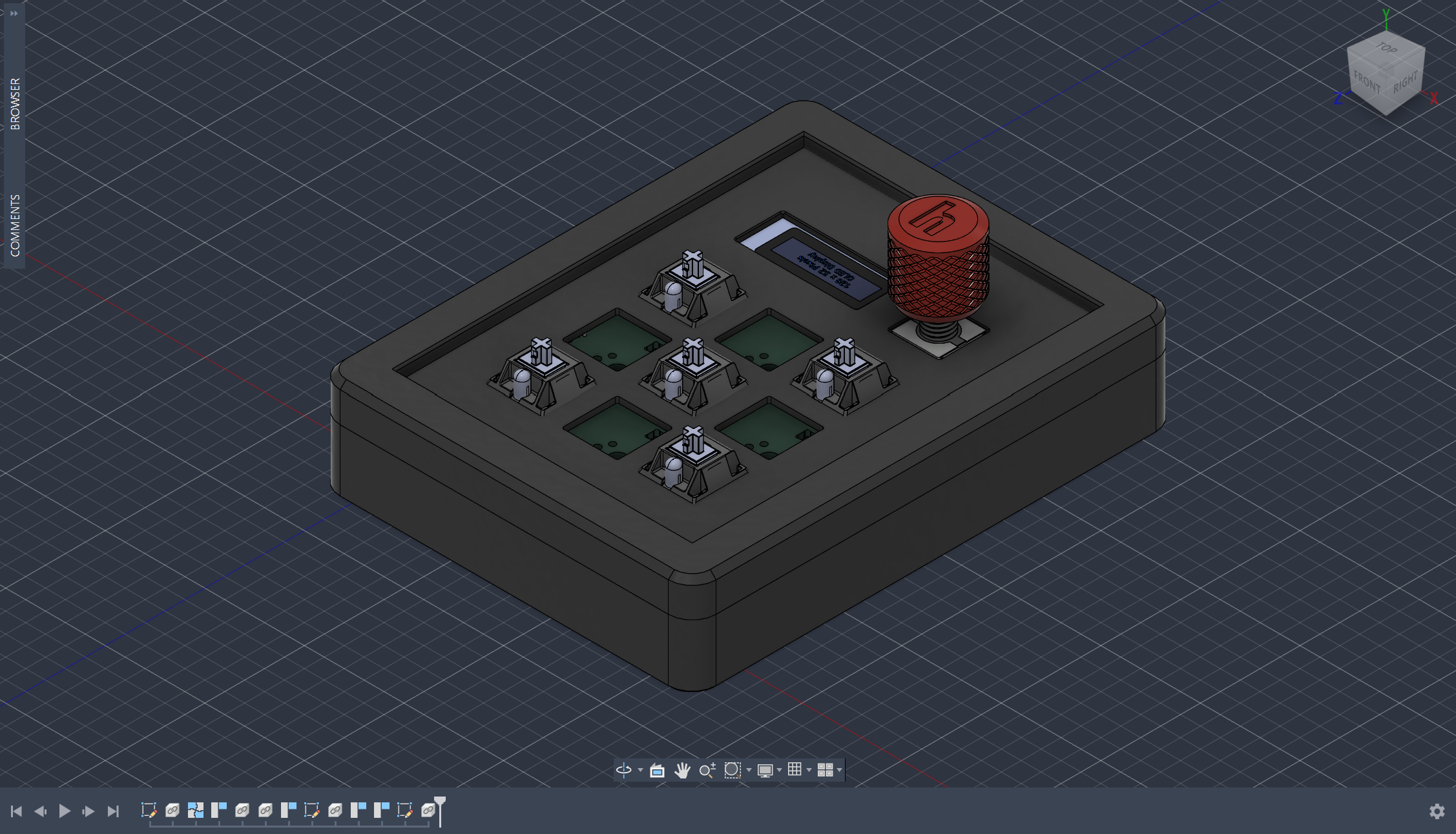

Stratum macropad, from the project README — From the project README

Main components on the Stratum macropad

MOUDLE-SEEEDUINO-XIAO

Stratum macropad bill of materials (BOM)

30 components, 6 distinct parts.

Qty	Part	Footprint	Refs
1	MOUDLE-SEEEDUINO-XIAO	XIAO-Generic-Hybrid-14P-2.54-21X17.8MM	U1
1	OLED_DISPLAY	SSD1306-0.91-OLED-4pin-128x32	J1
9	SW_Push_45deg	SW_Cherry_MX_1.00u_PCB	K1, K2, K3, K4, K5, K6, K7, K8 +1
1	RotaryEncoder_Switch	RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm	SW1
9	SK6812MINI-E	SK6812MINI-E_fixed	LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +1
9	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +1

Stratum macropad design files

The KiCad project lives in the ReuTheCoder/stratum-macropad repository on GitHub; these links point at the commit this page was built from.

Layoutpcb/Macropad_Stratum.kicad_pcb
Schematicpcb/Macropad_Stratum.kicad_sch

Stratum macropad: common questions

How big is the Stratum macropad PCB?

The Stratum macropad measures 77 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stratum macropad?

30 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stratum macropad design files?

From the ReuTheCoder/stratum-macropad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stratum macropad design in my own project?

The repository has no license, so all rights stay with ReuTheCoder. Use it as a reference, and ask the author before reusing the design.
