Hp logic analyzer termination adapter

rhalkyard·hp-logic-analyzer-termination-adapter

Hp logic analyzer termination adapter PCB layout, top view — open source board by rhalkyard

About the Hp logic analyzer termination adapter PCB

Hp logic analyzer termination adapter is an open source PCB design by rhalkyard, published on GitHub. It is a 2-layer board measuring 49.2 × 58.4 mm, with 57 components from 6 distinct parts.

By type, the board carries 36 resistors, 18 capacitors, 2 connectors and 1 jumper.

It belongs with the test & measurement designs in this gallery.

From the project

DIY clone of HP 01650-63203 logic analyzer termination adapter

The PCB in this repo is a quick and dirty clone of the HP 01650-63203 termination adapter, used for direct connection of a 40-pin pod cable to a dedicated test port, providing a passive termination network to minimise loading on the device under test. By adding a cheap set of hookup leads and minigrabbers, it can also serve as a DIY replacement for the probe pods that are so frequently missing from analzyers that crop up on the used market.

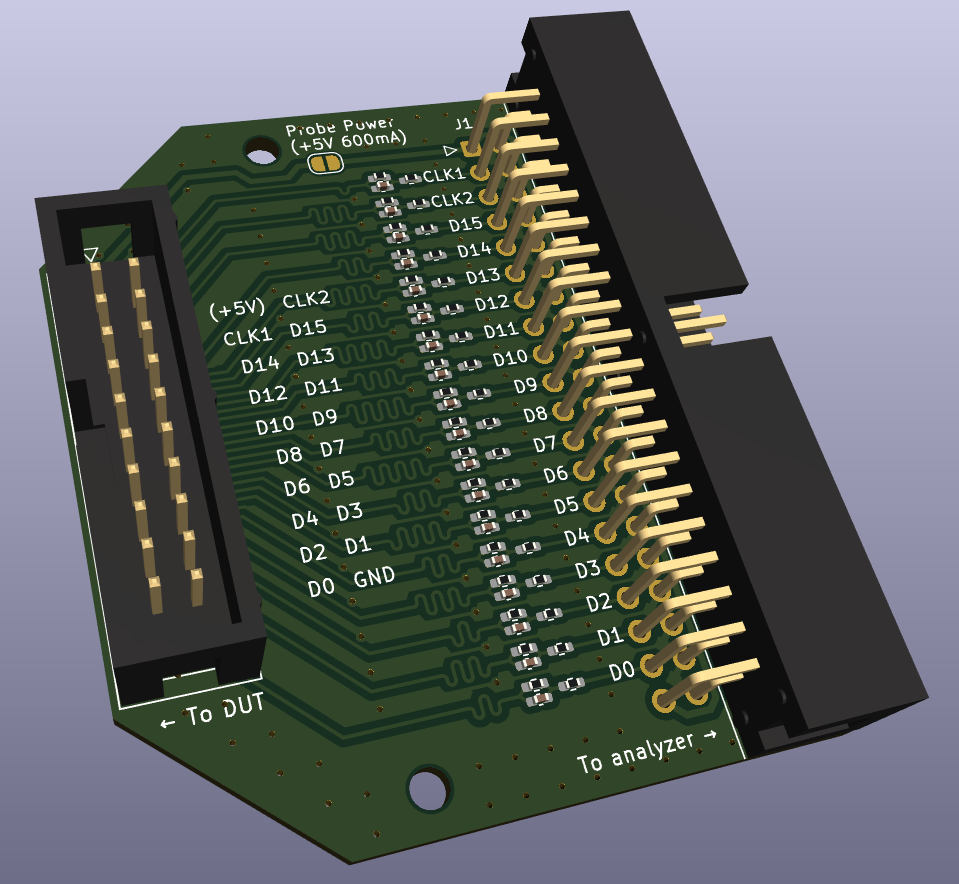

Hp logic analyzer termination adapter, from the project README
From the project README

Hp logic analyzer termination adapter bill of materials (BOM)

57 components, 6 distinct parts.

QtyPartRefs
1
BHR-40-HUA
Conn_02x20_Odd_Even
J1
1
302-S201
Conn_02x10_Odd_Even
J2
1
SolderJumper_2_Open
JP1
18
8pF
C1, C2, C3, C4, C5, C6, C7, C8 +10
18
255R
R1, R2, R3, R4, R5, R6, R7, R8 +10
18
90K9
R19, R20, R21, R22, R23, R24, R25, R26 +10

Hp logic analyzer termination adapter design files

The KiCad project lives in the rhalkyard/hp-logic-analyzer-termination-adapter repository on GitHub; these links point at the commit this page was built from.

Hp logic analyzer termination adapter: common questions

How big is the Hp logic analyzer termination adapter PCB?

The Hp logic analyzer termination adapter measures 49.2 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hp logic analyzer termination adapter?

57 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hp logic analyzer termination adapter design files?

From the rhalkyard/hp-logic-analyzer-termination-adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Hp logic analyzer termination adapter design in my own project?

The repository has no license, so all rights stay with rhalkyard. Use it as a reference, and ask the author before reusing the design.
