PMW3360DM-T2QU
About the PMW3360DM-T2QU PCB
PMW3360DM-T2QU is an open source PCB design by rhssk, published on GitHub under the MIT license. It is a 2-layer board measuring 23.4 × 28.7 mm, with 13 components from 10 distinct parts.
Other key parts include the PMW3360DM-T2QU and TLV70019_SOT23-5. By type, the board carries 6 resistors, 4 capacitors, 2 ICs and 1 connector.
From the project

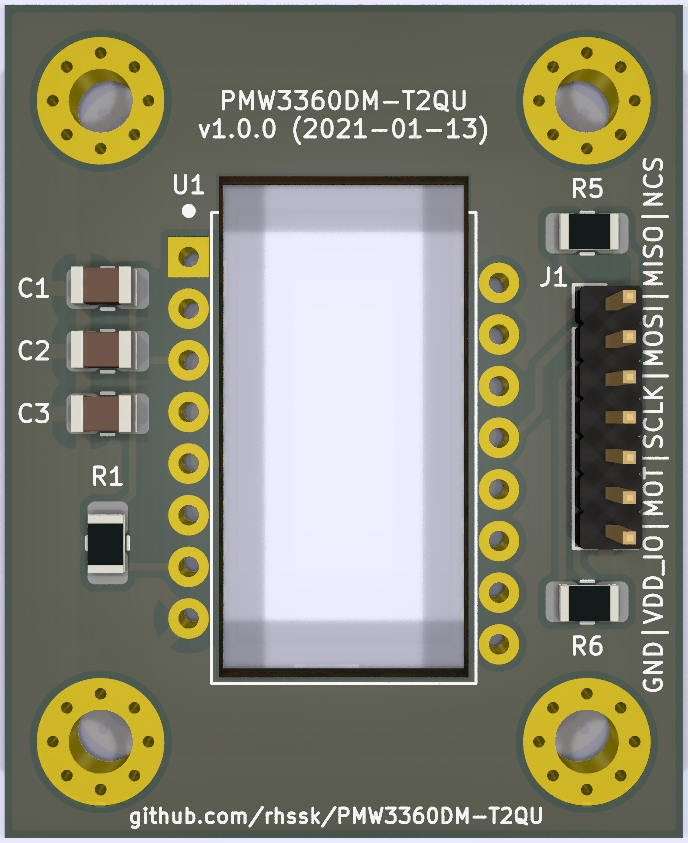

PCB design for Pixart PMW3360DM-T2QU
Main components on the PMW3360DM-T2QU
PMW3360DM-T2QU bill of materials (BOM)
13 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PMW3360DM-T2QU | PMW3360DM-T2QU | U1 |
| 1 | TLV70019_SOT23-5 | SOT-23-5 | U2 |
| 1 | MCU | PinHeader_1x07_P1.27mm_Vertical | J1 |
| 1 | 0.1uF | C_0805_2012Metric | C1 |
| 2 | 1uF | C_0805_2012Metric | C2, C4 |
| 1 | 4.7uF | C_0805_2012Metric | C3 |
| 3 | 10K | R_0805_2012Metric | R1, R5, R6 |
| 1 | 39 | R_0805_2012Metric | R2 |
| 1 | 130 | R_0805_2012Metric | R3 |
| 1 | NL | R_0805_2012Metric | R4 |
PMW3360DM-T2QU design files
The KiCad project lives in the rhssk/PMW3360DM-T2QU repository on GitHub; these links point at the commit this page was built from.
- Layoutboard.kicad_pcb
- Schematicboard.kicad_sch
PMW3360DM-T2QU: common questions
How big is the PMW3360DM-T2QU PCB?
The PMW3360DM-T2QU measures 23.4 × 28.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PMW3360DM-T2QU?
13 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the PMW3360DM-T2QU design files?
From the rhssk/PMW3360DM-T2QU repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PMW3360DM-T2QU design in my own project?
Yes, under the terms of its MIT license, which rhssk chose for the repository.
