DS2 Addon
About the DS2 Addon PCB
DS2 Addon is an open source PCB design by RileyMcCarthy, published on GitHub. It is a 2-layer board measuring 47 × 25.4 mm, with 17 components from 5 distinct parts.
Other key parts include the ADS122U04. By type, the board carries 12 capacitors, 4 resistors and 1 IC.
From the project
Tensile testing machine

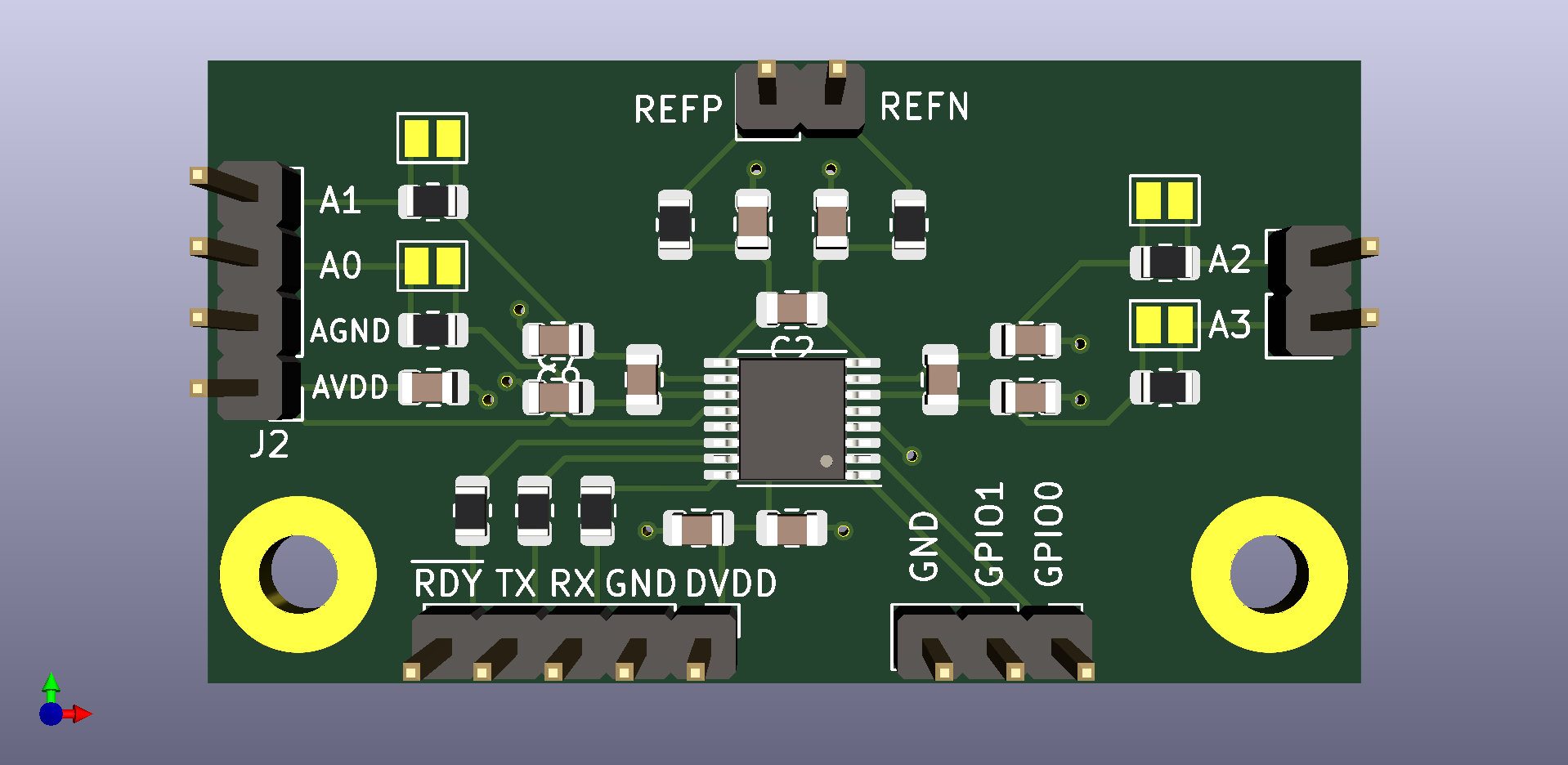

The DS2 Addon is a piggyback board for the DS2 force gauge. It conditions the strain-gauge signal and presents an analog voltage that the firmware reads through the ADS122U04 ADC, giving the machine its force measurement.
- Interfaces the DS2 force gauge's strain-gauge bridge to the EdgeBoard. - Feeds the analog force signal to the ADS122U04 ADC (driven by IOADS122U04` in the firmware). - Provides the force-path measurement used for live readouts, limit enforcement, and stress calculation.
Main components on the DS2 Addon
DS2 Addon bill of materials (BOM)
17 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADS122U04 | TSSOP-16_4.4x5mm_P0.65mm | U1 |
| 9 | X | C_0805_2012Metric | C1, C2, C3, C7, C8, C9, C10, C11 +1 |
| 3 | 0.1uF | C_0805_2012Metric | C4, C5, C6 |
| 3 | 47R | R_0805_2012Metric | R3, R4, R5 |
| 1 | 10k | R_0805_2012Metric | R10 |
DS2 Addon design files
The KiCad project lives in the RileyMcCarthy/MaD repository on GitHub; these links point at the commit this page was built from.
DS2 Addon: common questions
How big is the DS2 Addon PCB?
The DS2 Addon measures 47 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DS2 Addon?
17 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the DS2 Addon design files?
From the RileyMcCarthy/MaD repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the DS2 Addon design in my own project?
The repository has no license, so all rights stay with RileyMcCarthy. Use it as a reference, and ask the author before reusing the design.
