MaD Edge PCB layout, top view — open source board by RileyMcCarthy

About the MaD Edge PCB

MaD Edge is an open source PCB design by RileyMcCarthy, published on GitHub. It is a 4-layer board measuring 144.1 × 93.4 mm, with 164 components from 59 distinct parts.

Other key parts include the ISO6742DWR, UCC12040DVER, ISO6731DWR, NSI50010YT1G and ISO6741DWR. By type, the board carries 47 ICs, 32 resistors, 29 capacitors, 24 connectors, 23 diodes and 5 jumpers.

It belongs with the robotics & motion designs in this gallery.

From the project

Tensile testing machine

The EdgeBoard is the main controller PCB for the MaD tensile tester. It hosts the Parallax Propeller 2 microcontroller and carries all of the machine's I/O.

- Propeller 2 microcontroller (the firmware in Firmware/MaDCore runs here). - Servo / stepper driver interface for the motion axis. - Encoder input for position feedback. - Endstops and the door interlock / ESD safety chain. - SD card (tests run autonomously from G-code stored here). - Host USB-to-serial link (2,000,000 baud) for the control app. - Header for the DS2 Addon force-gauge interface.

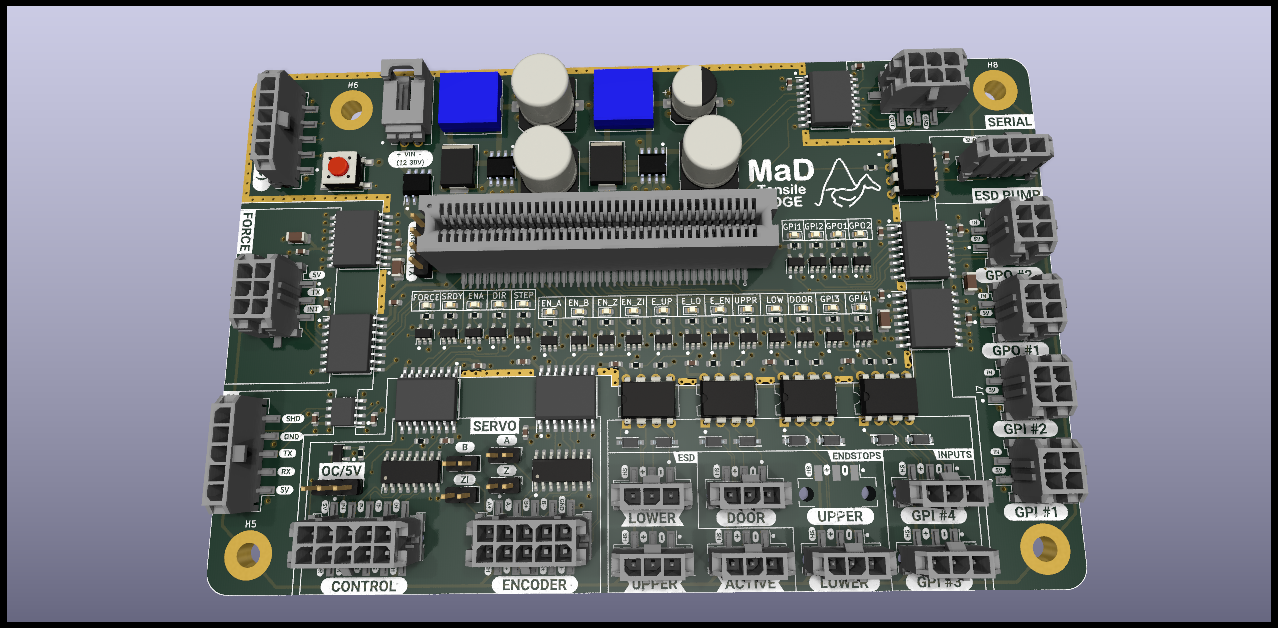

MaD Edge, from the project README
From the project README

Main components on the MaD Edge

ISO6742DWRUCC12040DVERISO6731DWRNSI50010YT1GISO6741DWRISO6721BDRISO6740DWRXL1509-5.0E1XL1509-3.3E1APM4953KC-TRG6N137VO2631SN74LVC1G14DBVTAM26LS31CDAM26LS32CD

MaD Edge bill of materials (BOM)

164 components, 59 distinct parts.

QtyPartRefs
2
ISO6742DWR
IC1, IC2
2
UCC12040DVER
IC3, IC4
1
ISO6731DWR
IC5
8
NSI50010YT1G
IC6, IC7, IC8, IC9, IC10, IC11, IC12, IC13
1
ISO6741DWR
IC14
1
ISO6721BDR
IC15
1
ISO6740DWR
ISO6740FDWR
IC16
1
XL1509-5.0E1
XL1509-5V
U1
1
XL1509-3.3E1
XL1509-3.3V
U2
1
APM4953KC-TRG
APM4953
U3
1
6N137
U4
4
VO2631
U5, U6, U7, U8
21
SN74LVC1G14DBVT
SN74LVC1G14DBV
U9, U10, U11, U12, U13, U14, U15, U16 +13
1
AM26LS31CD
U24
1
AM26LS32CD
AM26LV32xD
U25
1
MMBT3904-TP
NPN
Q1
1
DNP
Debug
J1
1
0705530106
Main_Power
J2
1
450-00309
P2_EDGE_MODULE_SOCKET
J3
1
0430450618
436500321
J4
Show 39 more
QtyPartRefs
1
0430450415
GPO_2
J5
1
0430450415
GPO_1
J6
1
0430450415
GPI_2
J7
1
0430450415
GPI_1
J8
1
0430450615
Force
J9
1
0436500321
ChargePump
J10
1
0436500321
ESDUpper
J11
1
0436500321
ESDLower
J12
1
0436500321
ESDActive
J13
1
0436500321
ENDUpper
J14
1
0436500321
ENDLower
J15
1
0436500321
Door
J16
1
0436500321
GPI_3
J17
1
0436500321
GPI_4
J18
1
0436500521
NavKey
J19
1
0430451015
Encoder
J20
1
0430451015
ServoCtrl
J21
1
DNP
GPIO_EXT_1
J22
1
0436500521
ServoSerial
J23
1
DNP
GPIO_EXT_2
J24
1
~
TTL-SINK
JP1
1
~
A_GND
JP2
1
~
B_GND
JP3
1
~
Z_GND
JP4
1
~
ZI_GND
JP5
1
~
RESET
SW1
2
SS36-E3/57T
SS36
D1, D2
21
LTST-C190KGKT
LED
D3, D4, D5, D6, D7, D8, D9, D10 +13
1
SRP1038A-470M
68uH/3A
L1
1
SLO1365H470MTT
47uH/3A
L2
2
EEH-ZS1E471P
470uF
C1, C2
1
25SVPF180M
180uF
C3
1
25SVPF330M
330uF
C4
4
CL31A106MAHNNNE
10uF
C5, C6, C16, C17
21
CL05A104KA5NNNC
0.1uF
C7, C8, C9, C10, C11, C12, C13, C14 +13
9
~
1K
R1, R2, R3, R4, R5, R6, R7, R8 +1
21
~
220R
R9, R10, R11, R12, R13, R14, R15, R16 +13
1
~
43K
R24
1
~
390R
R38

MaD Edge design files

The KiCad project lives in the RileyMcCarthy/MaD repository on GitHub; these links point at the commit this page was built from.

MaD Edge: common questions

How big is the MaD Edge PCB?

The MaD Edge measures 144.1 × 93.4 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the MaD Edge?

164 components, from 59 distinct parts. The full bill of materials is listed on this page.

Where can I download the MaD Edge design files?

From the RileyMcCarthy/MaD repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MaD Edge design in my own project?

The repository has no license, so all rights stay with RileyMcCarthy. Use it as a reference, and ask the author before reusing the design.
