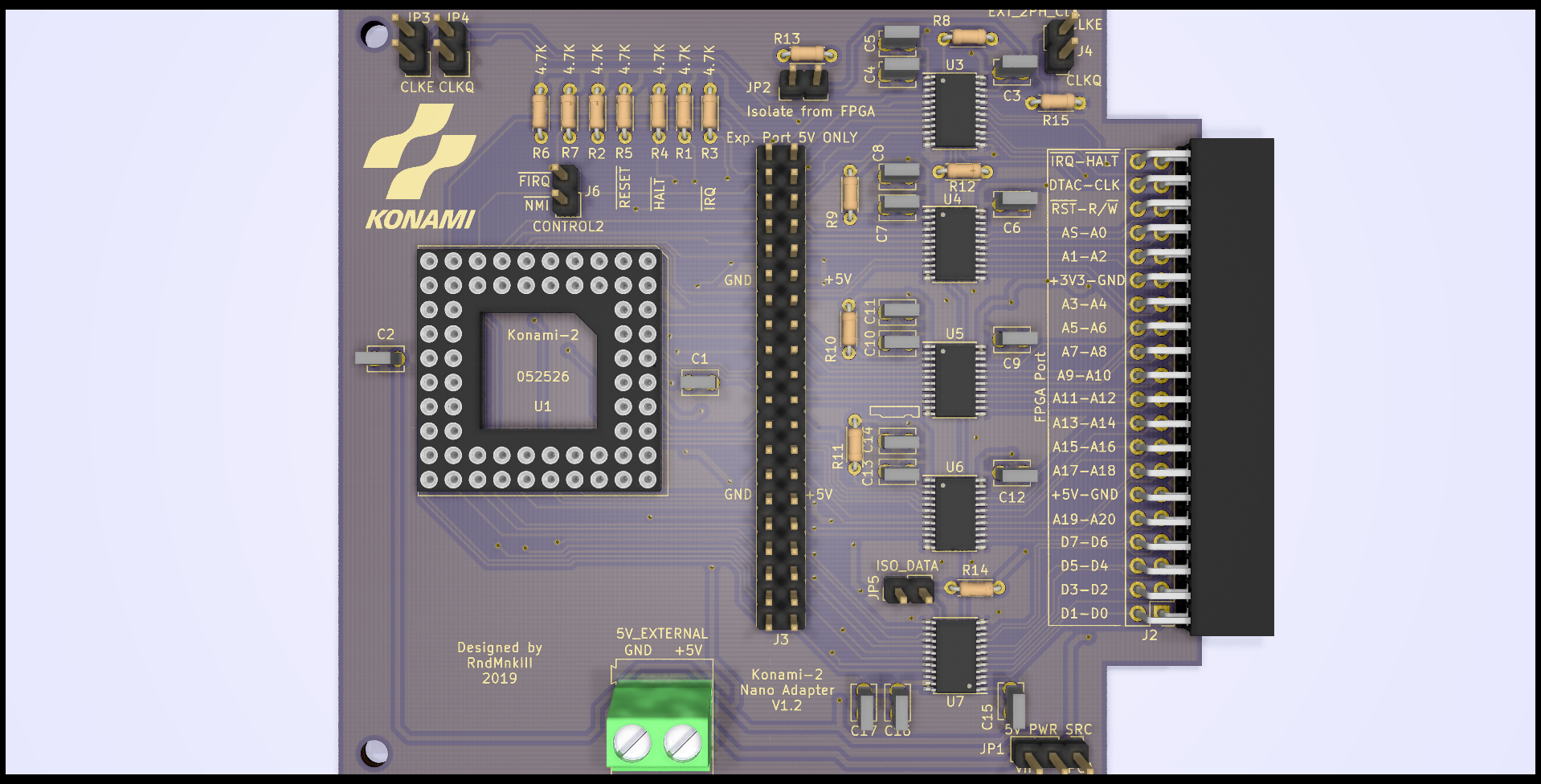

Konami-2 DE10-Nano adapter V 1.1
About the Konami-2 DE10-Nano adapter V 1.1 PCB
Konami-2 DE10-Nano adapter V 1.1 is an open source PCB design by RndMnkIII, published on GitHub. It is a 2-layer board measuring 92.2 × 83.8 mm, with 48 components from 17 distinct parts.
Other key parts include the Konami-2 and SN74LVC8T245PWR. By type, the board carries 17 capacitors, 15 resistors, 6 ICs, 5 connectors and 5 jumpers.
From the project
Hello everyone, I created this repository to share it with other people interested in preserving Konami's arcade boards in the form of core for FPGA. All the material I collect as well as my own developments will be uploaded to the repository. I would like the authorship of the m
Hello everyone, I created this repository to share it with other people interested in preserving Konami's arcade boards in the form of core for FPGA. All the material I collect as well as my own developments will be uploaded to the repository. I would like the authorship of the material to be recognized if someone considers it useful for their own developments.
Main components on the Konami-2 DE10-Nano adapter V 1.1
Konami-2 DE10-Nano adapter V 1.1 bill of materials (BOM)
48 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Konami-2 | KONAMI-2_64_PGA | U1 |
| 5 | SN74LVC8T245PWR | TSSOP-24_SN74LVC8T245PWR | U3, U4, U5, U6, U7 |
| 1 | 5V_EXTERNAL | TerminalBlock_Altech_AK300-2_P5.00mm | J1 |
| 1 | FPGA Port | Pin_Header_Straight_2x20_Pitch2.54mm | J2 |
| 1 | Expansion Port 5V ONLY | Pin_Header_Straight_2x20_Pitch2.54mm | J3 |
| 1 | EXT. 2 PHASE CLK | Pin_Header_Straight_1x02_Pitch2.54mm | J4 |
| 1 | CONTROL2 | Pin_Header_Straight_1x02_Pitch2.54mm | J6 |
| 1 | 5V PWR SRC | Pin_Header_Straight_1x03_Pitch2.54mm | JP1 |
| 1 | Isolate from FPGA | Pin_Header_Straight_1x02_Pitch2.54mm | JP2 |
| 1 | CLKE | Pin_Header_Straight_1x02_Pitch2.54mm | JP3 |
| 1 | CLKQ | Pin_Header_Straight_1x02_Pitch2.54mm | JP4 |
| 1 | Isolate Data from FPGA | Pin_Header_Straight_1x02_Pitch2.54mm | JP5 |
| 12 | 0.1uF | C_Polyester_D3.8mm_W2.6mm_P2.50mm | C1, C2, C3, C4, C6, C7, C9, C10 +4 |
| 5 | 1uF | C_Polyester_D3.8mm_W2.6mm_P2.50mm | C5, C8, C11, C14, C17 |
| 12 | 4.7K | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 +4 |
| 1 | 1K | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R12 |
| 2 | 10K | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R14, R15 |
Konami-2 DE10-Nano adapter V 1.1 design files
The KiCad project lives in the RndMnkIII/Konami_arcade repository on GitHub; these links point at the commit this page was built from.
Konami-2 DE10-Nano adapter V 1.1: common questions
How big is the Konami-2 DE10-Nano adapter V 1.1 PCB?
The Konami-2 DE10-Nano adapter V 1.1 measures 92.2 × 83.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Konami-2 DE10-Nano adapter V 1.1?
48 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the Konami-2 DE10-Nano adapter V 1.1 design files?
From the RndMnkIII/Konami_arcade repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Konami-2 DE10-Nano adapter V 1.1 design in my own project?
The repository has no license, so all rights stay with RndMnkIII. Use it as a reference, and ask the author before reusing the design.
