TemperatureDisplay

RobThree·TemperatureDisplay·pcb/Temperature Display.kicad_pcb

TemperatureDisplay PCB layout, top view — open source board by RobThree

About the TemperatureDisplay PCB

TemperatureDisplay is an open source PCB design by RobThree, published on GitHub under the MIT license. It is a 2-layer board measuring 25.7 × 34.4 mm, with 4 components from 3 distinct parts.

It belongs with the displays & leds, sensors and iot & wireless designs in this gallery.

From the project

Measures temperature and humidity using a GXHT30 and displays this information on an SSD1306 OLED display. Offers a HTTP endpoint to read values as JSON, also outputs values on serial.

Uses an Wemos D1 mini with a GXHT30 I²C temperature & humidity sensor and a SSD1306 I²C 0.96" OLED display.

This project supports OTA updates, uses the WiFi manager to configure the WiFi and provides a REST API to get the temperature and humidity as JSON. The readings (and display) are updated every 2 seconds (by default, configurable) and also output to serial.

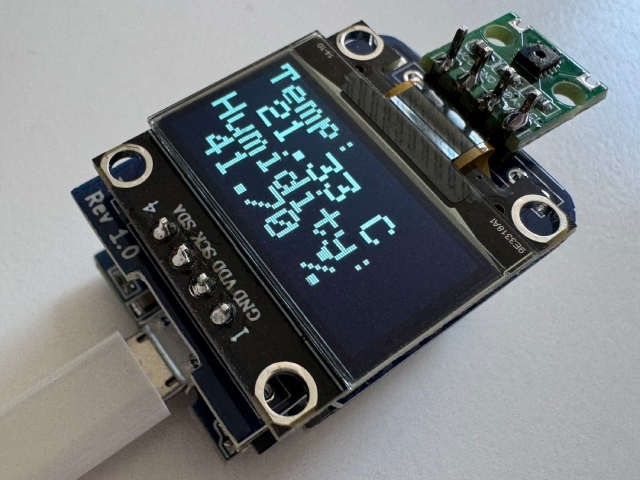

TemperatureDisplay, from the project README
From the project README

TemperatureDisplay bill of materials (BOM)

4 components, 3 distinct parts.

QtyPartRefs
1
SSD1306
J1
1
GXHT30
J2
2
Connector_Generic:Conn_01x08
P1, P2

TemperatureDisplay design files

The KiCad project lives in the RobThree/TemperatureDisplay repository on GitHub; these links point at the commit this page was built from.

TemperatureDisplay: common questions

How big is the TemperatureDisplay PCB?

The TemperatureDisplay measures 25.7 × 34.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TemperatureDisplay?

4 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the TemperatureDisplay design files?

From the RobThree/TemperatureDisplay repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TemperatureDisplay design in my own project?

Yes, under the terms of its MIT license, which RobThree chose for the repository.
