Faebrylyzer
About the Faebrylyzer PCB
Faebrylyzer is an open source PCB design by rubenbaldewsing, published on GitHub under the MIT license. It is a 4-layer board measuring 45 × 14.5 mm, with 35 components from 19 distinct parts.
Other key parts include the C113281, C233771, C236655 and C476253. By type, the board carries 13 resistors, 9 capacitors, 7 diodes and 4 ICs.
It belongs with the test & measurement designs in this gallery.

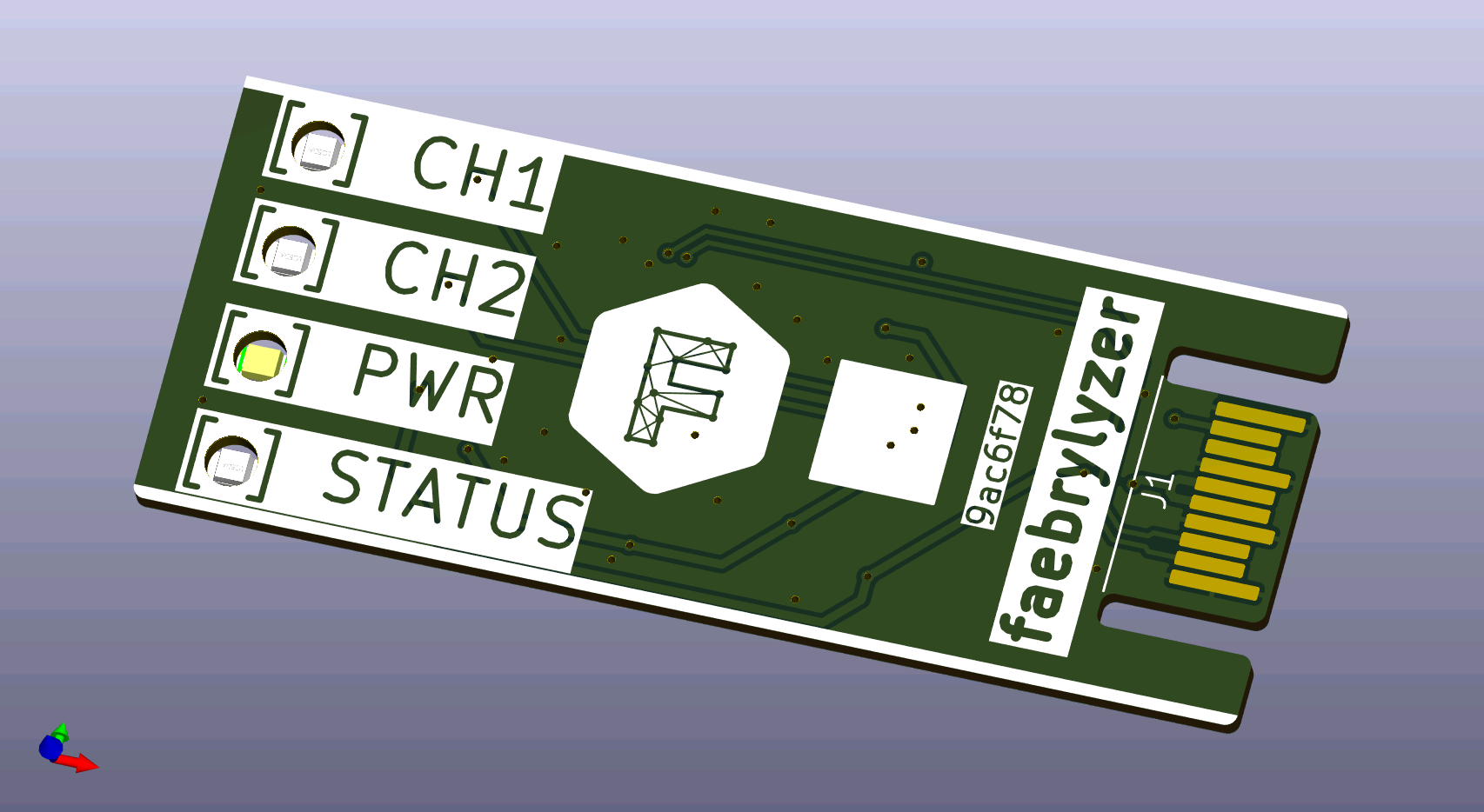

From the project
faebrylyzer is an 8 channel logic analyser compatible with the fx2lafw firmware and is designed to be integrated as a module into other projects.
8 channel logic analyser compatible with the fx2lafw firmware
faebrylyzer is an 8 channel logic analyser compatible with the fx2lafw firmware. It is designed to be integrated as a module into other projects (e.g. a factory test rig). This project is build with the open-source EDA faebryk.
See here for the instructions on how to install and edit this project.
If you want to build the physical output of this project you can find the build instructions here.
Main components on the Faebrylyzer
Faebrylyzer bill of materials (BOM)
35 components, 19 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C113281 SNx4LVC541A | TSSOP-20_L6.5-W4.4-P0.65-LS6.4-BL | U1 |
| 1 | C233771 EEPROM | UDFN-8_L3.0-W2.0-P0.50-TL | U2 |
| 1 | C236655 LDO 3.3V 237.5mA - 262.5mA Vin max 5V Iq | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR | U3 |
| 1 | C476253 CBM9002A_56ILG | QFN-56_L8.0-W8.0-P0.50-BL-EP | U4 |
| 1 | MountingSlot | MountingSlot | H1 |
| 1 | C70590 Crystal | CRYSTAL-SMD_4P-L2.0-W1.6-BL-A | XTAL1 |
| 3 | 3.05V | LED-SMD_L3.2-W1.3-RD_GREEN-MHT151UGCT | D1, D2, D6 |
| 1 | C907859 | SOD-323_L1.7-W1.3-LS2.5-BI | D3 |
| 1 | C2128 1.3V | SOD-123FL_L2.8-W1.8-LS3.7-RD | D4 |
| 1 | 3.15V | LED-SMD_L3.2-W1.3-RD_MHT151WDT | D5 |
| 1 | — | SOD-323_L1.8-W1.3-LS2.5-BI | D7 |
| 6 | C12530 15pF 50V C0G Samsung Electro-Mechanics | C0402 | C1, C2, C3, C4, C5, C9 |
| 2 | C1548 15pF 50V C0G | C0402 | C6, C7 |
| 1 | C52923 1µF 25V X5R | C0402 | C8 |
| 5 | 100Ω | R0402 | R1, R2, R3, R4, R9 |
| 4 | C270393 ResistorArray | RES-ARRAY-SMD_0402-8P-L2.0-W1.0-BL | R5, R6, R14, R15 |
| 2 | C162977 ResistorArray | RES-ARRAY-SMD_8P-L2.0-W1.0-BL_CN24XXXX | R7, R8 |
| 1 | 1kΩ | R0402 | R22 |
| 1 | 200Ω | R0402 | R23 |
Faebrylyzer design files
The KiCad project lives in the rubenbaldewsing/faebrylyzer repository on GitHub; these links point at the commit this page was built from.
Faebrylyzer: common questions
How big is the Faebrylyzer PCB?
The Faebrylyzer measures 45 × 14.5 mm, has 4 copper layers and is 0.97128 mm thick.
How many components are on the Faebrylyzer?
35 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Faebrylyzer design files?
From the rubenbaldewsing/faebrylyzer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Faebrylyzer design in my own project?
Yes, under the terms of its MIT license, which rubenbaldewsing chose for the repository.
