Cherryblossom pad

Rudraa-25·cherryblossom-pad·pcb/macropad.kicad_pcb

Cherryblossom pad PCB layout, top view — open source board by Rudraa-25

About the Cherryblossom pad PCB

Cherryblossom pad is an open source PCB design by Rudraa-25, published on GitHub. It is a 2-layer board measuring 66 × 99.8 mm, with 26 components from 4 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 12 switches, 12 diodes, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

this is my custom 12 key macropad project for the hack club hackpad. it use a seeed xiao rp2040 and got 12 switch and a small oled display. i design the case in cad and the pcb in kicad. also when [...]

this is my custom 12 key macropad project for the hack club hackpad. it use a seeed xiao rp2040 and got 12 switch and a small oled display. i design the case in cad and the pcb in kicad. also when [...]

check out BOOM.csv for the full bill of materials with pricing!

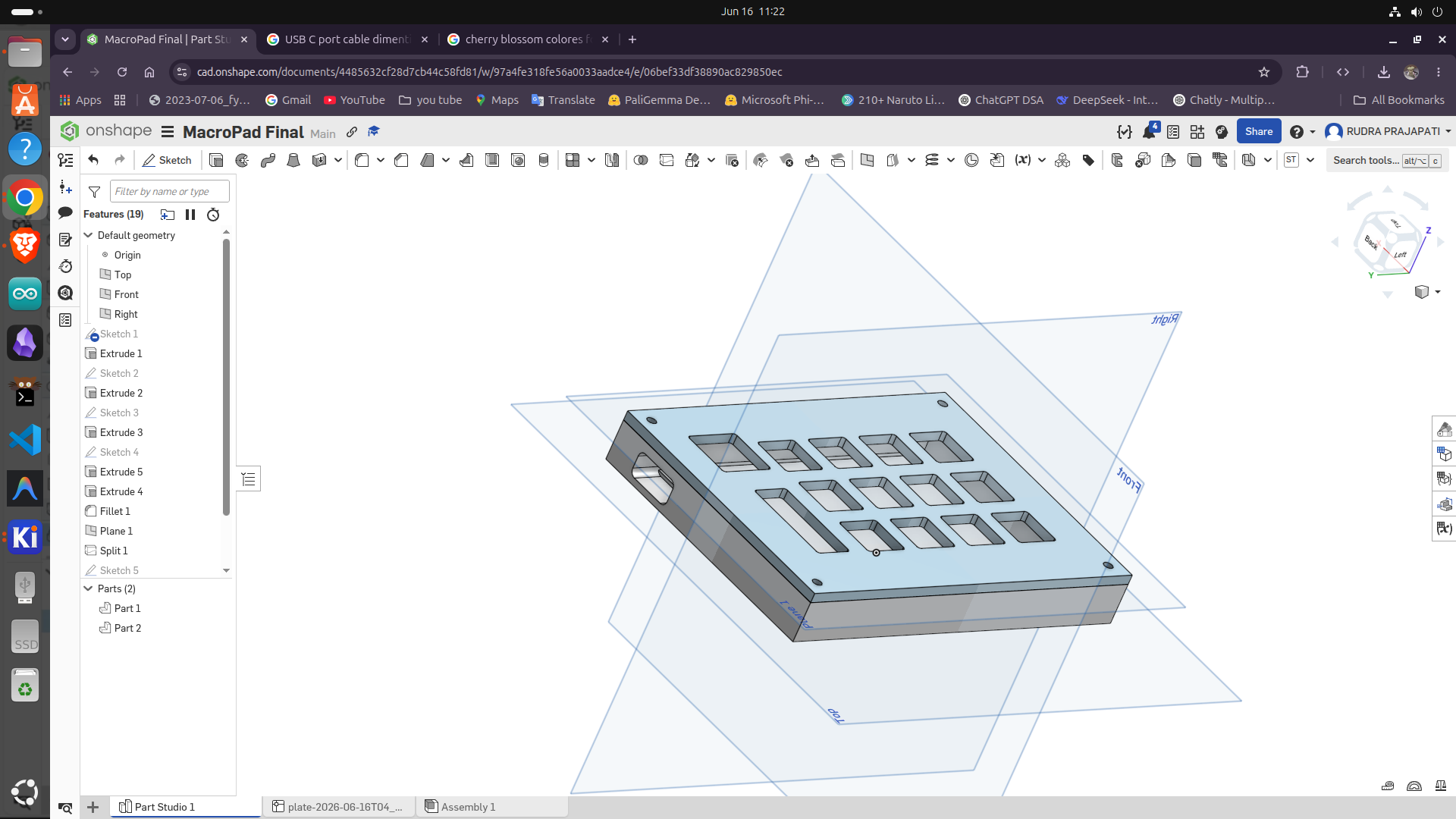

Cherryblossom pad, from the project README — From the project README

Main components on the Cherryblossom pad

MOUDLE-SEEEDUINO-XIAO

Cherryblossom pad bill of materials (BOM)

26 components, 4 distinct parts.

Qty	Part	Footprint	Refs
1	MOUDLE-SEEEDUINO-XIAO	XIAO-Generic-Hybrid-14P-2.54-21X17.8MM	U1
1	0.91 OLED display	SSD1306-0.91-OLED-4pin-128x32	J1
12	SW_Push	SW_Cherry_MX_1.00u_PCB	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4
12	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +4

Cherryblossom pad design files

The KiCad project lives in the Rudraa-25/cherryblossom-pad repository on GitHub; these links point at the commit this page was built from.

Layoutpcb/macropad.kicad_pcb
Schematicpcb/macropad.kicad_sch

Cherryblossom pad: common questions

How big is the Cherryblossom pad PCB?

The Cherryblossom pad measures 66 × 99.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Cherryblossom pad?

26 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Cherryblossom pad design files?

From the Rudraa-25/cherryblossom-pad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Cherryblossom pad design in my own project?

The repository has no license, so all rights stay with Rudraa-25. Use it as a reference, and ask the author before reusing the design.
