Rc car receiver

rudranshgoel1·rc-car·PCB/rc_car_receiver/rc_car_receiver.kicad_pcb

Rc car receiver PCB layout, top view — open source AVR/Arduino board by rudranshgoel1

About the Rc car receiver PCB

Rc car receiver is an open source AVR/Arduino PCB design by rudranshgoel1, published on GitHub. It is a 2-layer board measuring 54 × 74 mm, with 4 components from 4 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. By type, the board carries 3 connectors and 1 module.

From the project

- 4 Arrow Keys for controlling the car - Arduino Nano for the Main MCU - L298N Motor Driver - DC Motors + Wheels - Custom PCB Art (really cool) - Custom case

- 4 Arrow Keys for controlling the car - Arduino Nano for the Main MCU - L298N Motor Driver - DC Motors + Wheels - Custom PCB Art (really cool) - Custom case

link to full 3d thing- https://cad.onshape.com/documents/55362c062752c5dd0b9c506b/w/202d1c84392a58531153413c/e/98ba119ae289950db80c791d?renderMode=0&uiState=6a291872275c9443df0429f0

A special thanks to Anay and Shadow who are helping me to make my projects better. Love them so much!

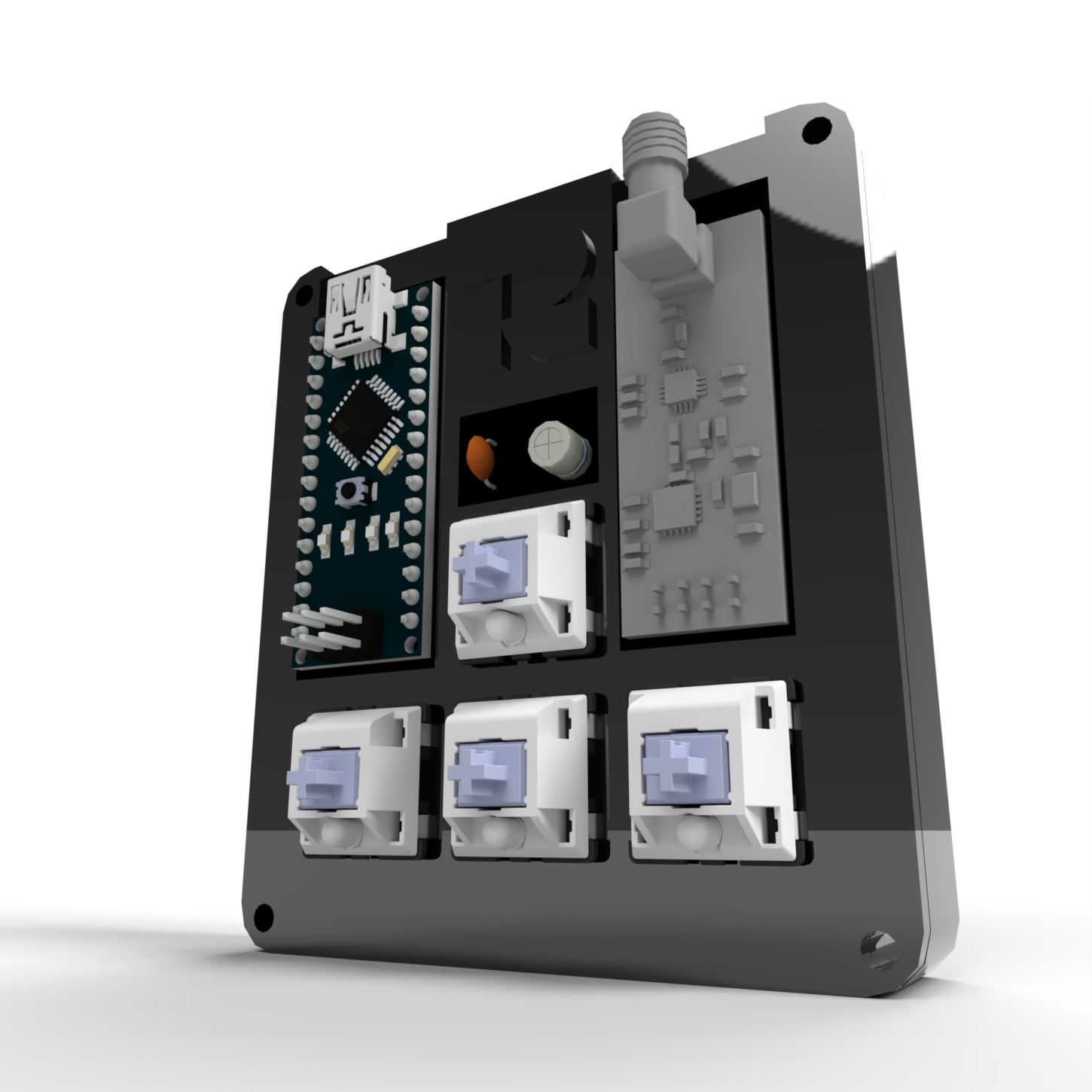

Rc car receiver, from the project README
From the project README

Main components on the Rc car receiver

Arduino_Nano_v3.x

Rc car receiver bill of materials (BOM)

4 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Arduino_Nano_v3.x
A1
1
Power for L298N
J1
1
L298N Motor Driver
J2
1
nRF24L01
J4

Rc car receiver design files

The KiCad project lives in the rudranshgoel1/rc-car repository on GitHub; these links point at the commit this page was built from.

Rc car receiver: common questions

What microcontroller does the Rc car receiver use?

The Rc car receiver is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Rc car receiver PCB?

The Rc car receiver measures 54 × 74 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rc car receiver?

4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rc car receiver design files?

From the rudranshgoel1/rc-car repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rc car receiver design in my own project?

The repository has no license, so all rights stay with rudranshgoel1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rc car receiver without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
