CJ125 Wide O2
About the CJ125 Wide O2 PCB

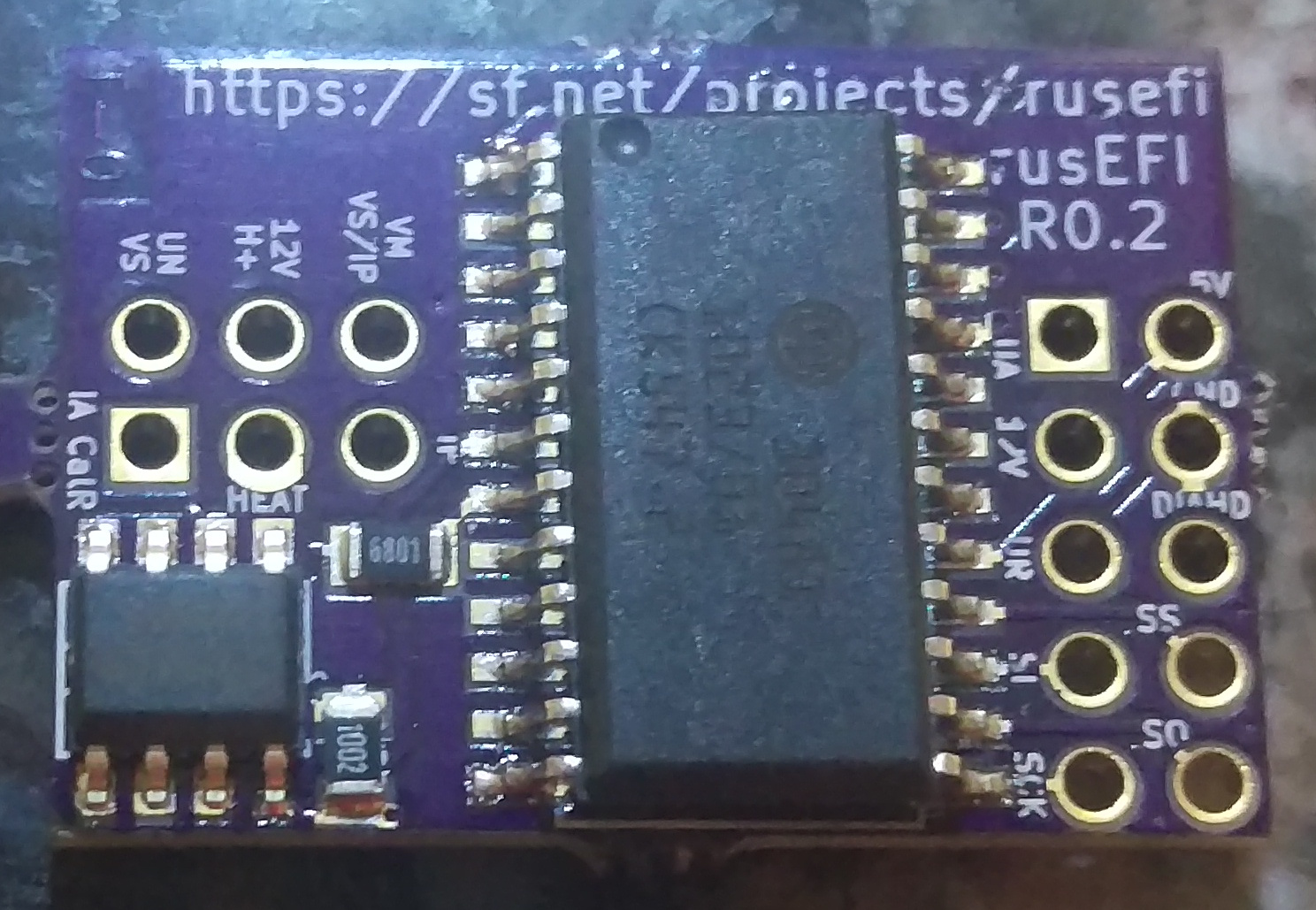

CJ125 Wide O2 is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 18.2 × 34.3 mm, with 39 components from 30 distinct parts.
Other key parts include the CJ125. By type, the board carries 22 resistors, 9 capacitors, 2 connectors, 2 diodes, 1 IC and 1 transistor.
From the project
In this repo we archive rusEfi-related abandoned hardware files
2019 status: known to work, but documentation is very limited :(
On this board UR and UA do NOT have build-in resistor dividers.
There is an opinion that for open air UA divider is required.
Main components on the CJ125 Wide O2
CJ125 Wide O2 bill of materials (BOM)
39 components, 30 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CJ125 | SOIC-24_7.5x15.4mm_Pitch1.27mm | U1 |
| 1 | FDS2734 | SO8E_ST | Q1 |
| 1 | CONN_02X03 | Socket_Strip_Straight_2x03 | P4 |
| 1 | CONN_02X05 | Socket_Strip_Straight_2x05 | P8 |
| 2 | TEST | R_0603 | W1, W2 |
| 1 | LED-RED | LED_0805_2012Metric | D1 |
| 1 | LED-GRN | LED_0603_1608Metric | D2 |
| 1 | 1000PF 1000pF | C_0805_2012Metric | C1 |
| 3 | 0.033UF 0.033uF | C_0805_2012Metric | C2, C6, C8 |
| 1 | 0.1UF DNP | C_0805_2012Metric | C3 |
| 1 | 0.1UF 0.1uF | C_0805_2012Metric | C4 |
| 1 | 220PF 220pf | C_0805_2012Metric | C5 |
| 1 | 0.1UF 0.1uF | C_0603_1608Metric | C7 |
| 1 | 0.01UF 0.033uF | C_0603_1608Metric | C9 |
| 4 | 10K 10k | R_0805_2012Metric | R1, R5, R7, R16 |
| 1 | 21K6 21k6 | R_0805_2012Metric | R2 |
| 1 | 160 0R | R_0805_2012Metric | R3 |
| 1 | 61.9 | R_0805_2012Metric | R4 |
| 1 | 6.8K 6.8k | R_0805_2012Metric | R6 |
| 1 | 1k | R_0805_2012Metric | R8 |
Show 10 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 82.5 | R_0805_2012Metric | R9 |
| 1 | 117.5 220 | R_0805_2012Metric | R10 |
| 1 | 4.7K 5.11k | R_0805_2012Metric | R11 |
| 1 | 100K 100k | R_0603_1608Metric | R12 |
| 1 | 100K 100k | R_0805_2012Metric | R13 |
| 1 | 470K 511k | R_0805_2012Metric | R14 |
| 2 | 1k | R_0603_1608Metric | R15, R22 |
| 2 | 6.8k | R_0805_2012Metric | R17, R19 |
| 2 | 10k | R_0805_2012Metric | R18, R20 |
| 1 | 4.7k | R_0805_2012Metric | R21 |
