Common Rail MC33816 board

rusefillc·rusefi-self-fork·hardware/Common_Rail_MC33816/Common_Rail_MC33816.kicad_pcb

Common Rail MC33816 board layout, top view — open source board by rusefillc

Simulate this board

About the Common Rail MC33816 board

Common Rail MC33816 board is an open source PCB design by rusefillc, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 101.6 × 119.6 mm, with 183 components from 40 distinct parts.

Other key parts include the MC33816. By type, the board carries 55 capacitors, 45 resistors, 38 diodes, 15 test points, 13 connectors and 12 transistors.

From the project

https://rusefi.com/forum/viewtopic.php?f=4&t=1337

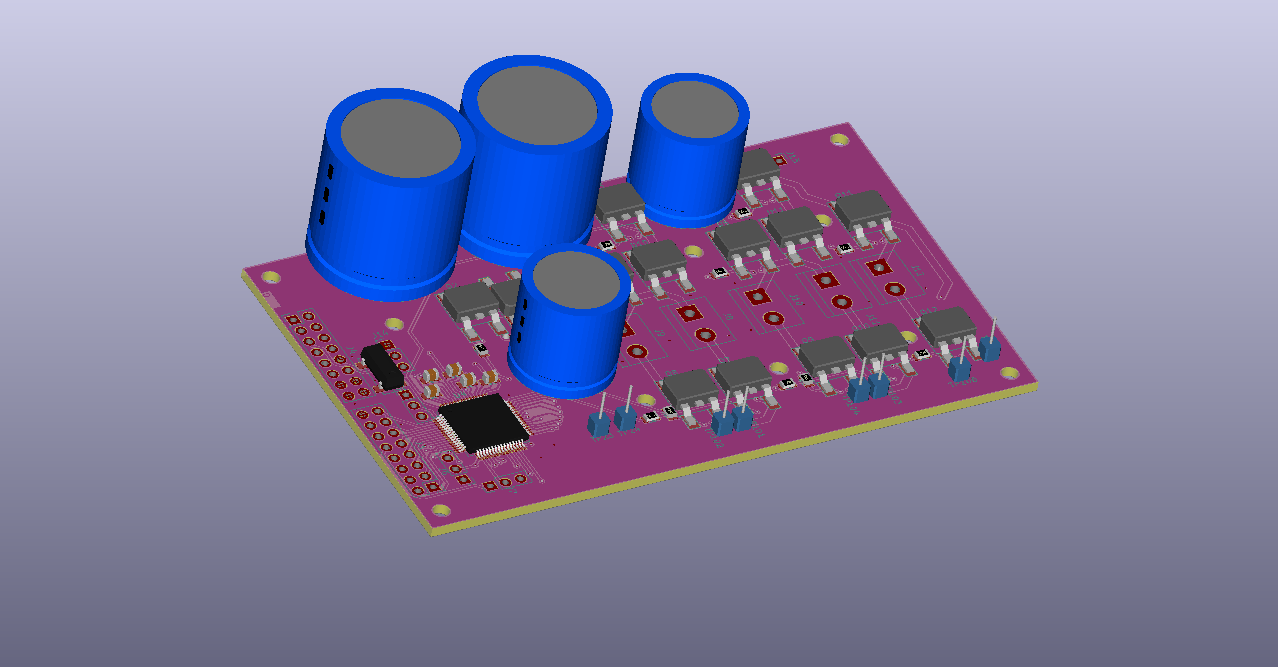

Common Rail MC33816 board, from the project README — From the project README

Main components on the Common Rail MC33816 board

Common Rail MC33816 board bill of materials (BOM)

183 components, 40 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	MC33816	HTQFP-64-1EP_10x10mm_Pitch0.5mm_ThermalPad_for_MC33816	U4
1	BUK9230-100B	TO-252-2	Q1
11	BUK9230-100B	TO-252-2	Q2, Q3, Q4, Q5, Q6, Q7, Q8, Q9 +3
1	1MHZ 1MHz	Crystal_SMD_SeikoEpson_MC306-4pin_8.0x3.2mm	Y1
1	1MHZ 1MHz	Oscillator_SMD_Diodes_FN-4Pin_7.0x5.0mm	Y2
2	CONN_02X08	Pin_Header_Straight_2x08_Pitch2.54mm	J3, J4
4	CONN_01X03	Pin_Header_Straight_1x03_Pitch2.54mm	J5, J6, J7, J14
5	INJ_Term	TerminalBlock_bornier-2_P5.08mm	J8, J9, J10, J11, J12
1	CONN_01X01	Pin_D1.4mm_L8.5mm_W2.8mm_FlatFork	J15
1	CONN_01X02 Conn_01x02	TerminalBlock_bornier-2_P5.08mm	J20
15	CONN_01X01	Pin_D0.7mm_L6.5mm_W1.8mm_FlatFork	TP2, TP3, TP4, TP5, TP6, TP7, TP8, TP23 +7
23	LED_Small	LED_0805_2012Metric	D1, D2, D3, D4, D5, D6, D7, D8 +15
1	FFD10UP20S	TO-252-2	D9
2	SBR10200CTL	TO-252-2	D10, D11
6	STPS2H100UY	D_SMB	D12, D13, D14, D15, D16, D17
5	5.7V	D_MicroMELF_Handsoldering	D30, D35, D36, D37, D38
1	STTH802G STTH802G-TR	TO-263-2	D34
1	6UH 6uH	744710610-Inductor	L1
1	10UH 10uH	IHLP6767GZER100M01	L2
4	100NF 100nF	C_0805	C1, C3, C5, C7

Show 20 more

Qty	Part	Footprint	Refs
4	10NF 10nF	C_0805	C2, C4, C6, C18
4	0.1UF 0.1uF	C_0805	C8, C10, C11, C13
1	1UF 1uF	C_0805	C9
1	4.7UF 4.7uF	C_0805	C12
2	1000UF 1000uF	CP_Radial_D22.0mm_P10.00mm_SnapIn	C14, C15
2	220NF 220nF	C_0805	C16, C17
11	1000PF 1000pF	C_0805	C19, C35, C36, C37, C38, C55, C56, C57 +3
2	390UF 390uF	CP_Radial_D16.0mm_P7.50mm	C21, C22
6	330PF 330pF	C_0805	C23, C24, C28, C59, C60, C73
2	0.22UF 0.22uF	C_0805	C25, C27
1	470PF 470pF	C_0805	C26
5	0.33UF 0.33uF	C_0805	C39, C40, C41, C42, C64
10	4700PF 4700pF	C_0805	C43, C44, C45, C46, C47, C48, C49, C50 +2
22	1k	R_0805	R1, R2, R3, R4, R5, R6, R7, R8 +14
2	5.1R	R_0805	R9, R10
12	10R	R_0805	R11, R13, R14, R15, R16, R17, R18, R19 +4
4	0R010	R_1206_HandSoldering	R12, R21, R22, R26
2	10k	R_0603_1608Metric	R38, R44
1	1k	R_0805_2012Metric	R42
2	0R010	R_1206_3216Metric_Pad1.42x1.75mm_HandSolder	R43, R45

Common Rail MC33816 board design files

The KiCad project lives in the rusefillc/rusefi-self-fork repository on GitHub; these links point at the commit this page was built from.

Common Rail MC33816 board: common questions

How big is the Common Rail MC33816 board?

The Common Rail MC33816 board measures 101.6 × 119.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Common Rail MC33816 board?

183 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Common Rail MC33816 board design files?

From the rusefillc/rusefi-self-fork repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Common Rail MC33816 board design in my own project?

Yes, under the terms of its GPL-3.0 license, which rusefillc chose for the repository.
