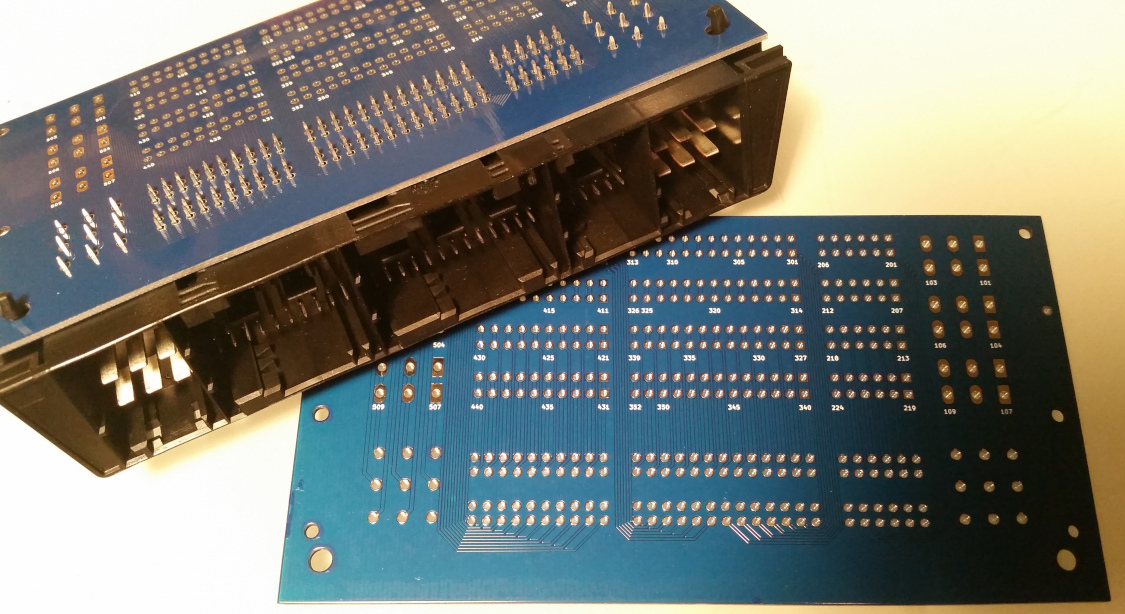

134pin 7-967288-1
About the 134pin 7-967288-1 PCB
134pin 7-967288-1 is an open source PCB design by rusefillc, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 139.7 × 73.7 mm, with 38 components from 12 distinct parts.
It belongs with the dev boards & breakouts designs in this gallery.
134pin 7-967288-1 bill of materials (BOM)
38 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 10 | Conn_01x03 | PhoenixContact_MSTBA_2,5_3-G-5,08_1x03_P5.08mm_Horizontal | J1, J2, J12, J13, J27, J28, J29, J34 +2 |
| 1 | CONN_02X08 Conn_01x03 | PhoenixContact_MSTBA_2,5_3-G-5,08_1x03_P5.08mm_Horizontal | J3 |
| 1 | CONN_02X08 Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J4 |
| 3 | CONN_01X03 Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J5, J6, J7 |
| 4 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J8, J9, J10, J11 |
| 1 | CONN_01X03 Conn_01x03 | PhoenixContact_MSTBA_2,5_3-G-5,08_1x03_P5.08mm_Horizontal | J14 |
| 1 | CONN_01X01 Conn_01x13 | PinHeader_1x13_P2.54mm_Vertical | J15 |
| 6 | Conn_01x13 | PinHeader_1x13_P2.54mm_Vertical | J16, J17, J18, J19, J21, J22 |
| 1 | CONN_01X02 Conn_01x13 | PinHeader_1x13_P2.54mm_Vertical | J20 |
| 8 | Conn_01x10 | PinHeader_1x10_P2.54mm_Vertical | J23, J24, J25, J26, J30, J31, J32, J33 |
| 1 | Conn_01x01 | TestPoint_Keystone_5000-5004_Miniature | J37 |
| 1 | 134pin_7-967288-1_KC5 | 7-967288-1_134-pin-connector | P1 |
134pin 7-967288-1 design files
The KiCad project lives in the rusefillc/rusefi-self-fork repository on GitHub; these links point at the commit this page was built from.
134pin 7-967288-1: common questions
How big is the 134pin 7-967288-1 PCB?
The 134pin 7-967288-1 measures 139.7 × 73.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 134pin 7-967288-1?
38 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 134pin 7-967288-1 design files?
From the rusefillc/rusefi-self-fork repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 134pin 7-967288-1 design in my own project?
Yes, under the terms of its GPL-3.0 license, which rusefillc chose for the repository.
