REF1790-NDS-Trainer-Toolkit
About the REF1790-NDS-Trainer-Toolkit PCB
REF1790-NDS-Trainer-Toolkit is an open source NXP PCB design by RWeick, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 53.1 × 60 mm, with 33 components from 19 distinct parts.
Its main chip is the LPC2142FBD64, from the NXP family. Other key parts include the K6R4016V1D-UC10 and ACTEL ProASIC Plus APA075-F. By type, the board carries 12 resistors, 10 capacitors, 3 ICs, 2 connectors, 1 transistor and 1 crystal.
From the project

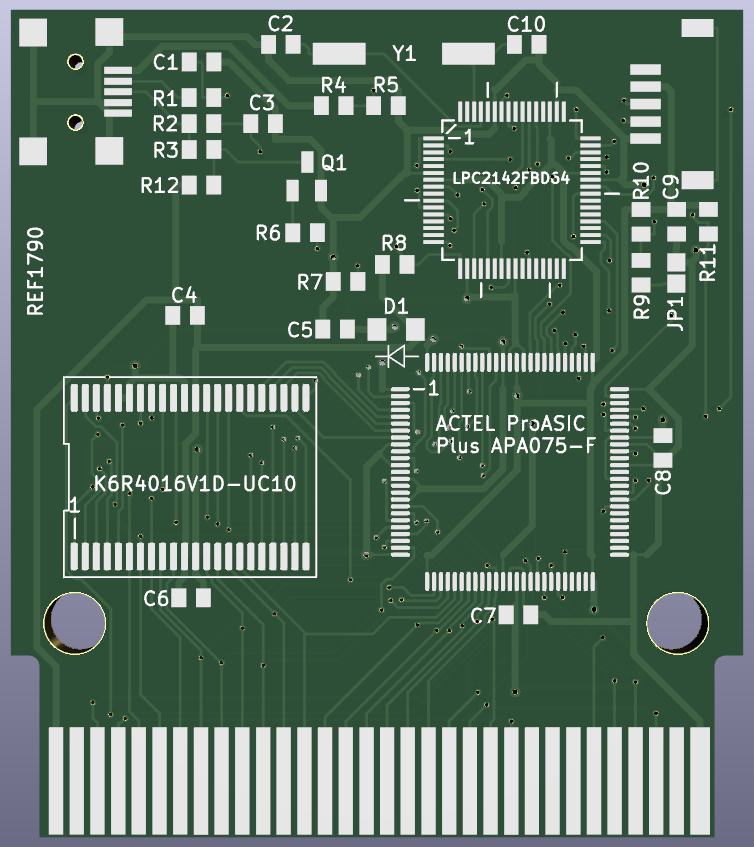

The full schematic and gerbers for the Nintendo DS Trainer Toolkit by Datel
Main components on the REF1790-NDS-Trainer-Toolkit
REF1790-NDS-Trainer-Toolkit bill of materials (BOM)
33 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | K6R4016V1D-UC10 | K6R4016V1D-UC10 | U1 |
| 1 | ACTEL ProASIC Plus APA075-F | GBA AR Max FPGA | U2 |
| 1 | LPC2142FBD64 | LPC2142 | U3 |
| 1 | 1F - BC847B | Transistor | Q1 |
| 1 | 12 MHz Crystal | Crystal Clock | Y1 |
| 1 | LPC2142 Programming Connector | LPC Programming Port | J1 |
| 1 | System_Edge_Connector | Edge Connector | J2 |
| 1 | Through Hole | Through Hole | Hole1 |
| 1 | Jumper_2_Open | Jumper Pads | JP1 |
| 1 | USB_B_Mini | USB_Mini_B | USB1 |
| 1 | DIODE | Diode | D1 |
| 4 | 10pF 0805 | SMD Cap and Res | C1, C2, C3, C10 |
| 6 | 100nF 0805 | SMD Cap and Res | C4, C5, C6, C7, C8, C9 |
| 2 | 33 Ohm 0805 | SMD Cap and Res | R1, R2 |
| 1 | 1.5k Ohm 0805 | SMD Cap and Res | R3 |
| 1 | 51k Ohm 0805 | SMD Cap and Res | R4 |
| 3 | 100k Ohm 0805 | SMD Cap and Res | R5, R6, R8 |
| 3 | 10k Ohm 0805 | SMD Cap and Res | R7, R10, R11 |
| 2 | 1k Ohm 0805 | SMD Cap and Res | R9, R12 |
REF1790-NDS-Trainer-Toolkit design files
The KiCad project lives in the RWeick/REF1790-NDS-Trainer-Toolkit repository on GitHub; these links point at the commit this page was built from.
- LayoutREF1790.kicad_pcb
- SchematicREF1790.kicad_sch
REF1790-NDS-Trainer-Toolkit: common questions
What microcontroller does the REF1790-NDS-Trainer-Toolkit use?
The REF1790-NDS-Trainer-Toolkit is built around the LPC2142FBD64, from the NXP family.
How big is the REF1790-NDS-Trainer-Toolkit PCB?
The REF1790-NDS-Trainer-Toolkit measures 53.1 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the REF1790-NDS-Trainer-Toolkit?
33 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the REF1790-NDS-Trainer-Toolkit design files?
From the RWeick/REF1790-NDS-Trainer-Toolkit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the REF1790-NDS-Trainer-Toolkit design in my own project?
Yes, under the terms of its GPL-3.0 license, which RWeick chose for the repository.
Can I test firmware for the REF1790-NDS-Trainer-Toolkit without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
