Hackpad v1

s-ajay-2010·hackpad-v1·production/pcb/hackpad-v1.kicad_pcb

Hackpad v1 PCB layout, top view — open source board by s-ajay-2010
Simulate this board

About the Hackpad v1 PCB

Hackpad v1 is an open source PCB design by s-ajay-2010, published on GitHub. It is a 2-layer board measuring 10.3 × 57.6 mm, with 5 components from 3 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 4 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Its just my first step into hardware and I've made a small keyboard(kinda) which can control music and volume.

This is my first hardware project where I've made a mini keyboard with 3 switches which can control the music playing like , , and rotary switch for and .

for the actual 3-d model's STEP files, check here ## Instalation guide Check qmk's guide for firmware flashing. For firmware folder check here

And as for the pcb part just open it on kicad and edit it or you can just export the gerber files and print them out.

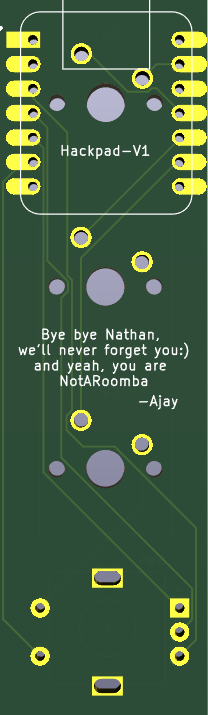

Hackpad v1, from the project README
From the project README

Main components on the Hackpad v1

MOUDLE-SEEEDUINO-XIAO

Hackpad v1 bill of materials (BOM)

5 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
3
SW_Push
SW1, SW2, SW3
1
RotaryEncoder_Switch
SW4

Hackpad v1 design files

The KiCad project lives in the s-ajay-2010/hackpad-v1 repository on GitHub; these links point at the commit this page was built from.

Hackpad v1: common questions

How big is the Hackpad v1 PCB?

The Hackpad v1 measures 10.3 × 57.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad v1?

5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hackpad v1 design files?

From the s-ajay-2010/hackpad-v1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hackpad v1 design in my own project?

The repository has no license, so all rights stay with s-ajay-2010. Use it as a reference, and ask the author before reusing the design.
