LEDBoard 4x4 16bit

s-light·LEDBoard_4x4_16bit

LEDBoard 4x4 16bit PCB layout, top view — open source board by s-light

About the LEDBoard 4x4 16bit PCB

LEDBoard 4x4 16bit is an open source PCB design by s-light, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 39.5 × 39.5 mm, with 33 components from 24 distinct parts.

Other key parts include the TLC5971PWPR. By type, the board carries 16 diodes, 5 capacitors, 4 ICs, 4 resistors and 3 connectors.

It belongs with the displays & leds designs in this gallery.

From the project

LEDBoard with 4x4 Nichia SMD-LEDs with controller for individual 16bit-channel control

a LED-Matrix Board that can be combined seamlessly to bigger areas. It uses the TI TLC5971 Constant-Current LED-Driver Chip with 16bit dimming resolution.

The original LED-footprint was for Nichia NSSM032A RGB-LED. Back in 2017 on of the brightest low power SMD LEDs in this size - They are only available as full reel directly from Nichia.

so there is a second branch with the LED-Type changed to Nichia NSSM124D - these are available as cut-tape from an distributor.

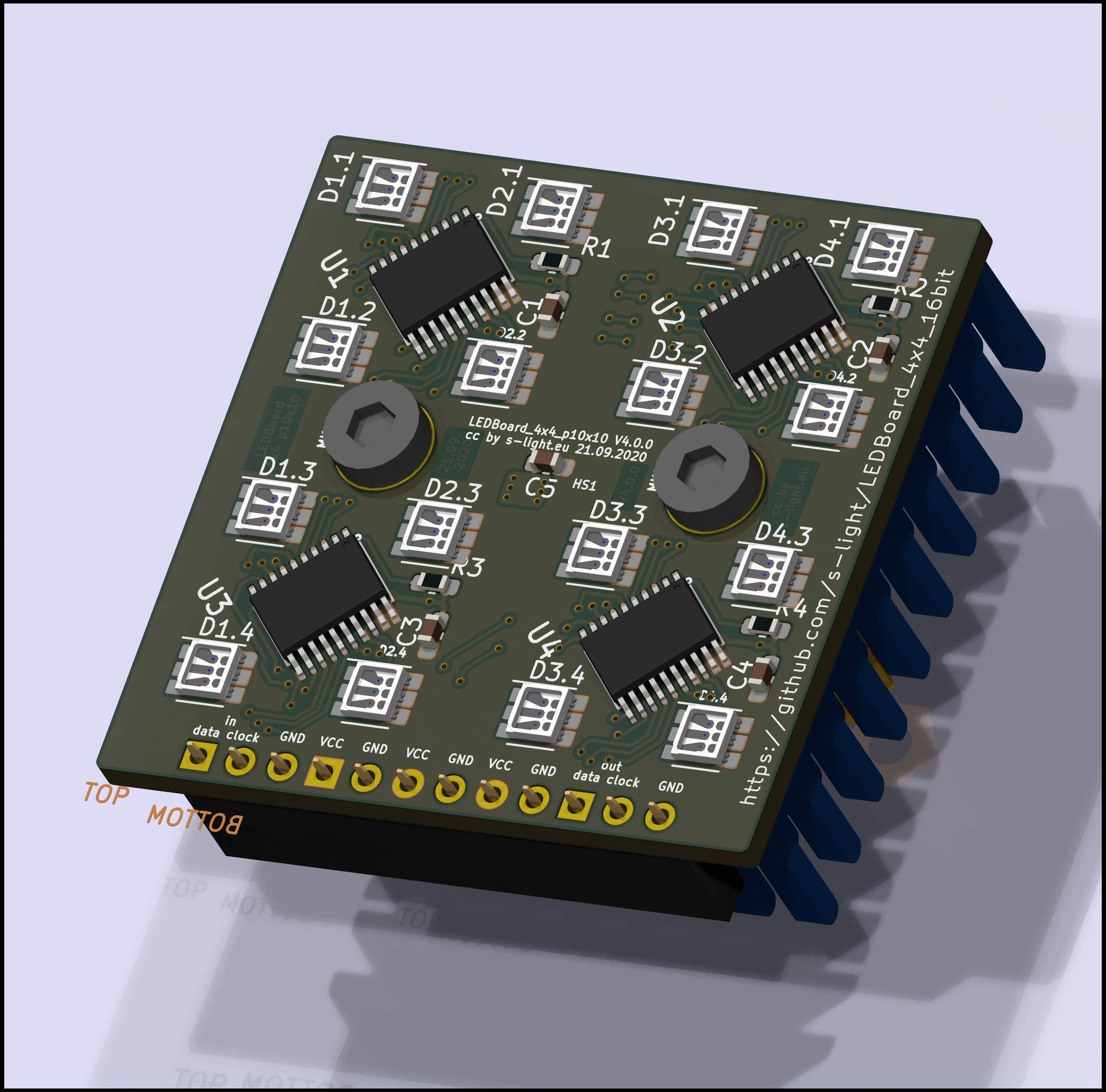

LEDBoard 4x4 16bit, from the project README
From the project README

Main components on the LEDBoard 4x4 16bit

TLC5971PWPR

LEDBoard 4x4 16bit bill of materials (BOM)

33 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
TLC5971PWPR
U1, U2, U3, U4
1
signal_in
J1
1
power
J2
1
signal_out
J6
1
Heatsink
HS1
1
LED_1.1
D1.1
1
LED_1.2
D1.2
1
LED_1.3
D1.3
1
LED_1.4
D1.4
1
LED_2.1
D2.1
1
LED_2.2
D2.2
1
LED_2.3
D2.3
1
LED_2.4
D2.4
1
LED_3.1
D3.1
1
LED_3.2
D3.2
1
LED_3.3
D3.3
1
LED_3.4
D3.4
1
LED_4.1
D4.1
1
LED_4.2
D4.2
1
LED_4.3
D4.3
Show 4 more
QtyPartRefs
1
LED_4.4
D4.4
4
100NF
100nF
C1, C2, C3, C4
1
81-GRM188R60J476ME5D
47uF 6.3V
C5
4
71-CRCW06032K70FKEB
2k7 1%
R1, R2, R3, R4

LEDBoard 4x4 16bit design files

The KiCad project lives in the s-light/LEDBoard_4x4_16bit repository on GitHub; these links point at the commit this page was built from.

LEDBoard 4x4 16bit: common questions

How big is the LEDBoard 4x4 16bit PCB?

The LEDBoard 4x4 16bit measures 39.5 × 39.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LEDBoard 4x4 16bit?

33 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LEDBoard 4x4 16bit design files?

From the s-light/LEDBoard_4x4_16bit repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the LEDBoard 4x4 16bit design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which s-light chose for the repository.
