Kicad display 10dig
About the Kicad display 10dig PCB

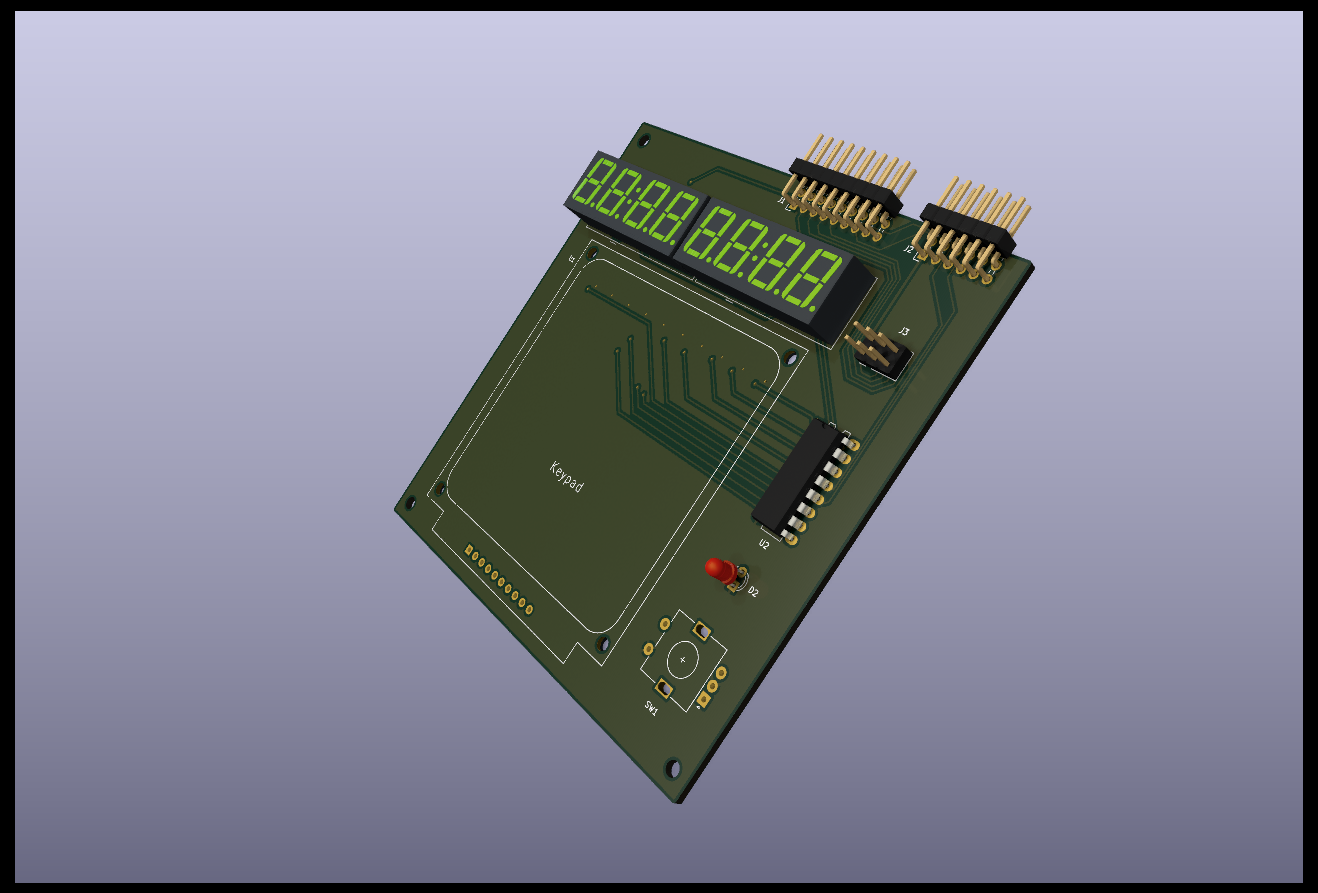

Kicad display 10dig is an open source PCB design by s59mz, published on GitHub. It is a 2-layer board measuring 99.1 × 99.1 mm, with 32 components from 13 distinct parts.
Other key parts include the keypad, 7442 and 3561AS1-1. By type, the board carries 12 resistors, 10 transistors, 4 ICs, 3 connectors, 1 switch and 1 diode.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project
A simple 10-digit 7-segment display with keyboard and PMOD interface
Main components on the Kicad display 10dig
Kicad display 10dig bill of materials (BOM)
32 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | keypad | keypad hex | U1 |
| 1 | 7442 | DIP-16_W7.62mm_LongPads | U2 |
| 2 | 3561AS1-1 | 3561AS1-1 | U3, U4 |
| 10 | MMBT3906 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +2 |
| 1 | 2X09 2x09 | PinHeader_2x09_P2.54mm_Horizontal | J1 |
| 1 | 2X06 2x06 | PinHeader_2x06_P2.54mm_Horizontal | J2 |
| 1 | 02X03 02x03 | PinHeader_2x03_P2.54mm_Vertical | J3 |
| 1 | RC | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW1 |
| 1 | LED | LED_D3.0mm | D2 |
| 1 | 100N 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 8 | 4K7 47R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3, R4, R5, R7, R8, R10 |
| 3 | 10K 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R6, R9, R11 |
| 1 | 4K7 470R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R12 |
Kicad display 10dig design files
The KiCad project lives in the s59mz/kicad-display_10dig repository on GitHub; these links point at the commit this page was built from.
- Layoutdisplay_10dig.kicad_pcb
- Schematicdisplay_10dig.kicad_sch
- BOMdisplay_10dig.csv
Kicad display 10dig: common questions
How big is the Kicad display 10dig PCB?
The Kicad display 10dig measures 99.1 × 99.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kicad display 10dig?
32 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Kicad display 10dig design files?
From the s59mz/kicad-display_10dig repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Kicad display 10dig design in my own project?
The repository has no license, so all rights stay with s59mz. Use it as a reference, and ask the author before reusing the design.
