About the Kicad pcm adc PCB

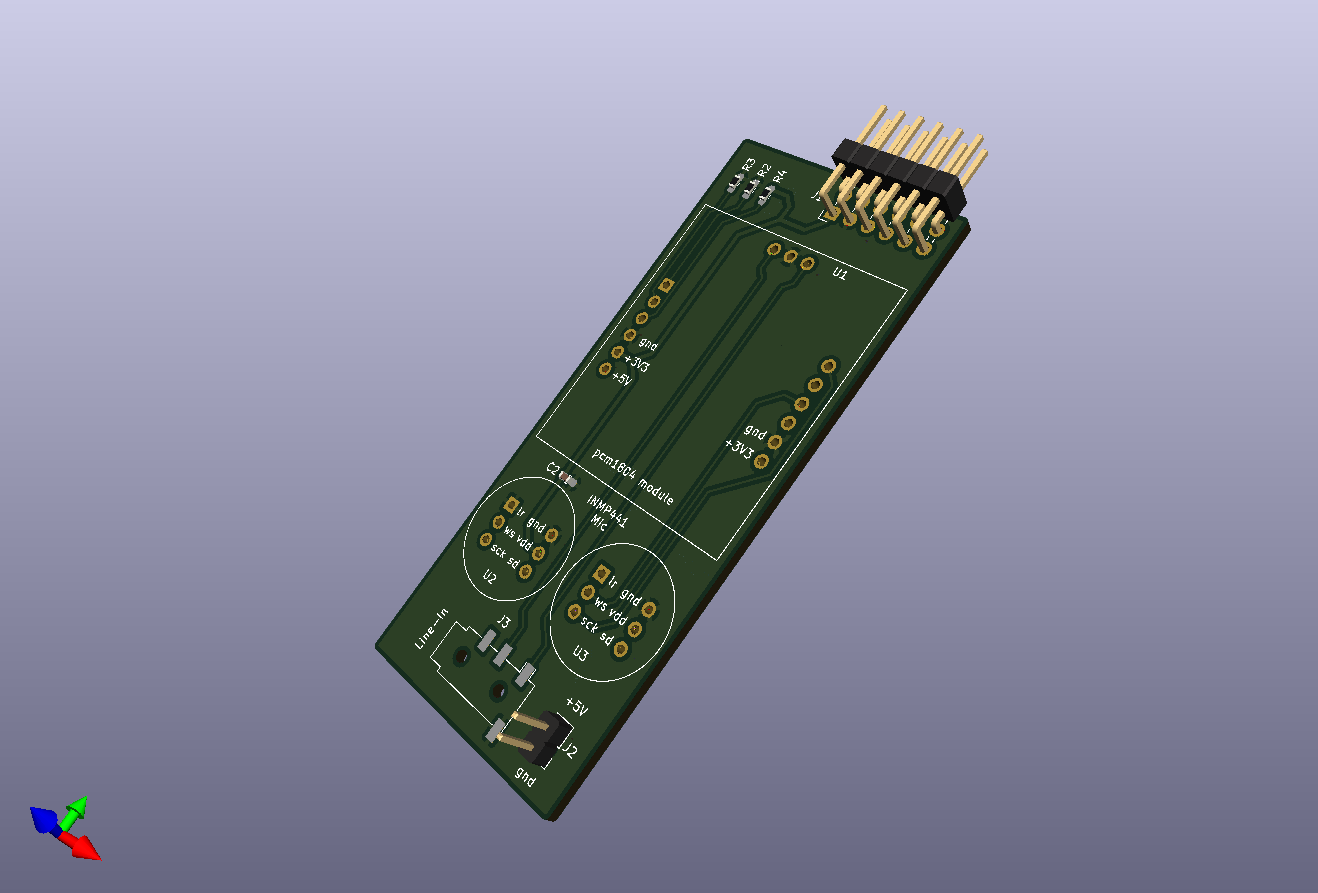

Kicad pcm adc is an open source PCB design by s59mz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 33 × 77.5 mm, with 12 components from 8 distinct parts.
Other key parts include the pcm_adc and inmp441. By type, the board carries 4 resistors, 3 ICs, 3 connectors and 2 capacitors.
From the project
PCM1808 ADC Testing module with PMOD interface
Main components on the Kicad pcm adc
Kicad pcm adc bill of materials (BOM)
12 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | pcm_adc | pcm_adc | U1 |
| 2 | inmp441 | inmp441-module | U2, U3 |
| 1 | pmod | PinHeader_2x06_P2.54mm_Horizontal | J1 |
| 1 | +5V | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | AudioJack4 | Jack_3.5mm_PJ320D_Horizontal | J3 |
| 2 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2 |
| 1 | 100k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 3 | 4k7 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3, R4 |
