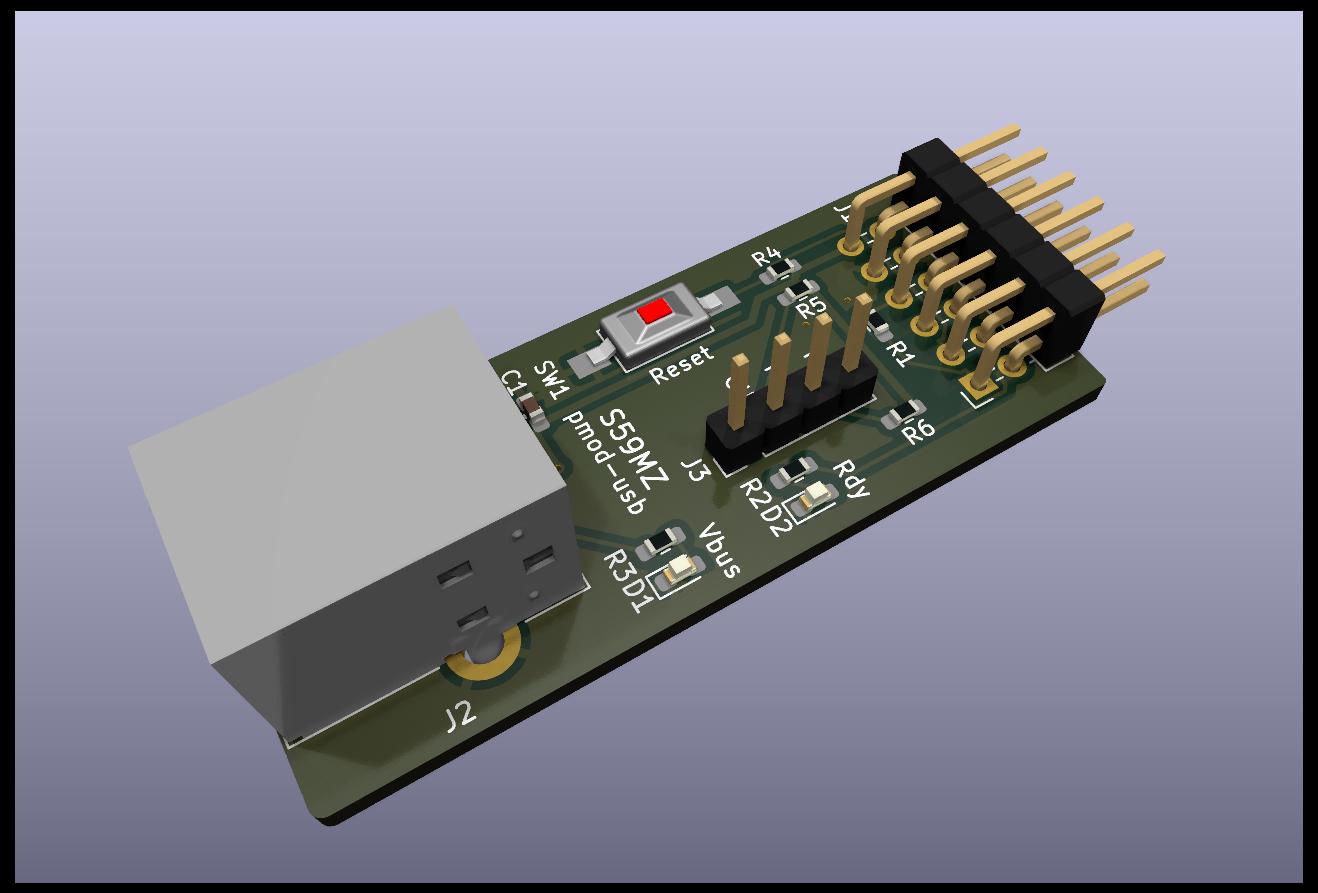

PMOD module for USB device implementation
An FPGA-based USB full-speed device core to implement USB-serial, USB-camera, USB-audio, USB-hid, etc.
It requires only 3 FPGA common IOs rather than additional chips.
RTL code available at: https://github.com/s59mz/FPGA-USB-Device
Main components on the Kicad pmod usb
Kicad pmod usb bill of materials (BOM)
14 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USBLC6-2SC6 | SOT-23-6 | U1 |
| 1 | pmod | PinHeader_2x06_P2.54mm_Horizontal | J1 |
| 1 | USB_B | USB_B_Lumberg_2411_02_Horizontal | J2 |
| 1 | Debug | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | Reset | SW_SPST_FSMSM | SW1 |
| 1 | Vbus | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | Rdy | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D2 |
| 1 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 1 | 1k5 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 1 | 68E | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
| 1 | 150E | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3 |
| 3 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4, R5, R6 |
Kicad pmod usb design files
The KiCad project lives in the s59mz/kicad-pmod_usb repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad-pmod_usb.kicad_pcb
- Schematickicad-pmod_usb.kicad_sch
Kicad pmod usb: common questions
How big is the Kicad pmod usb PCB?
The Kicad pmod usb measures 20.3 × 49.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kicad pmod usb?
14 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kicad pmod usb design files?
From the s59mz/kicad-pmod_usb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Kicad pmod usb design in my own project?
Yes, under the terms of its GPL-3.0 license, which s59mz chose for the repository.
