Arduino nano-2-parallel cnc tb6560-4axis

samowitsch·arduino-nano-2-parallel-cnc-tb6560-4axis·kicad-files/arduino-2-tb6560-4axis.kicad_pcb

Arduino nano-2-parallel cnc tb6560-4axis PCB layout, top view — open source AVR/Arduino board by samowitsch
Simulate this board

About the Arduino nano-2-parallel cnc tb6560-4axis PCB

Arduino nano-2-parallel cnc tb6560-4axis is an open source AVR/Arduino PCB design by samowitsch, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 55.9 × 63.5 mm, with 21 components from 8 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. By type, the board carries 9 connectors, 5 resistors, 3 diodes, 2 switches, 1 module and 1 transistor.

It belongs with the robotics & motion designs in this gallery.

From the project

My private small project for arduino nano to tb6560 cnc boards.

This is my little Arduino nano to parallel TB6560 cnc driver board project. Started some time ago using a red TB6560 4-axis board (before that i had an green 3-axis TB6560). At the moment the TB6560 alu case version is my preferred choice (but over time i can not remember why the red board was annoying me). The adapter should also work with 3-axis TB6560 boards if the Pinout is the same.

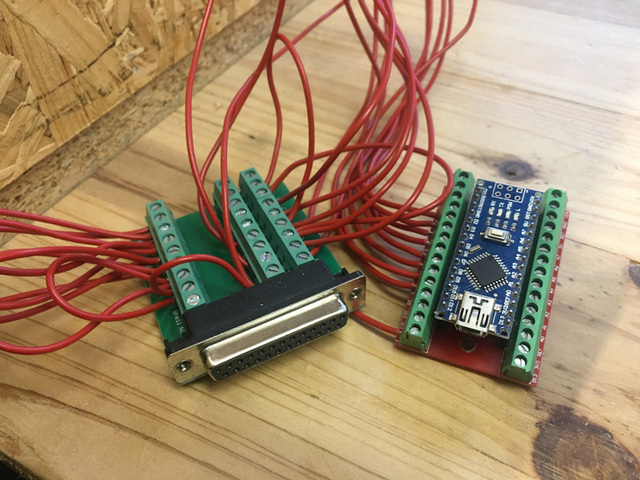

Arduino nano-2-parallel cnc tb6560-4axis, from the project README
From the project README

Main components on the Arduino nano-2-parallel cnc tb6560-4axis

Arduino_Nano_v3.x

Arduino nano-2-parallel cnc tb6560-4axis bill of materials (BOM)

21 components, 8 distinct parts.

QtyPartRefs
1
Arduino_Nano_v3.x
A1
1
2N3904
Q1
1
DB25_Female_MountingHoles
J1
3
Conn_01x03_Male
J2, J5, J7
5
Conn_01x02_Male
J3, J4, J6, J8, J9
2
SW_Push
SW1, SW2
3
LED
D1, D2, D3
5
1k Ohm
R1, R2, R3, R4, R5

Arduino nano-2-parallel cnc tb6560-4axis design files

The KiCad project lives in the samowitsch/arduino-nano-2-parallel-cnc-tb6560-4axis repository on GitHub; these links point at the commit this page was built from.

Arduino nano-2-parallel cnc tb6560-4axis: common questions

What microcontroller does the Arduino nano-2-parallel cnc tb6560-4axis use?

The Arduino nano-2-parallel cnc tb6560-4axis is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Arduino nano-2-parallel cnc tb6560-4axis PCB?

The Arduino nano-2-parallel cnc tb6560-4axis measures 55.9 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Arduino nano-2-parallel cnc tb6560-4axis?

21 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Arduino nano-2-parallel cnc tb6560-4axis design files?

From the samowitsch/arduino-nano-2-parallel-cnc-tb6560-4axis repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Arduino nano-2-parallel cnc tb6560-4axis design in my own project?

Yes, under the terms of its CC0-1.0 license, which samowitsch chose for the repository.

Can I test firmware for the Arduino nano-2-parallel cnc tb6560-4axis without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
