Namecard

saoto28·pineapple60·KiCad/namecard1.1/namecard.kicad_pcb

Namecard PCB layout, top view — open source AVR/Arduino board by saoto28

About the Namecard PCB

Namecard is an open source AVR/Arduino PCB design by saoto28, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 91 × 55 mm, with 6 components from 5 distinct parts.

Its main chip is the Arduino_UNO_R3_mod, from the AVR/Arduino family. By type, the board carries 5 connectors and 1 module.

It belongs with the keyboards designs in this gallery.

From the project

first ergonomic keyboard with Trackpoint

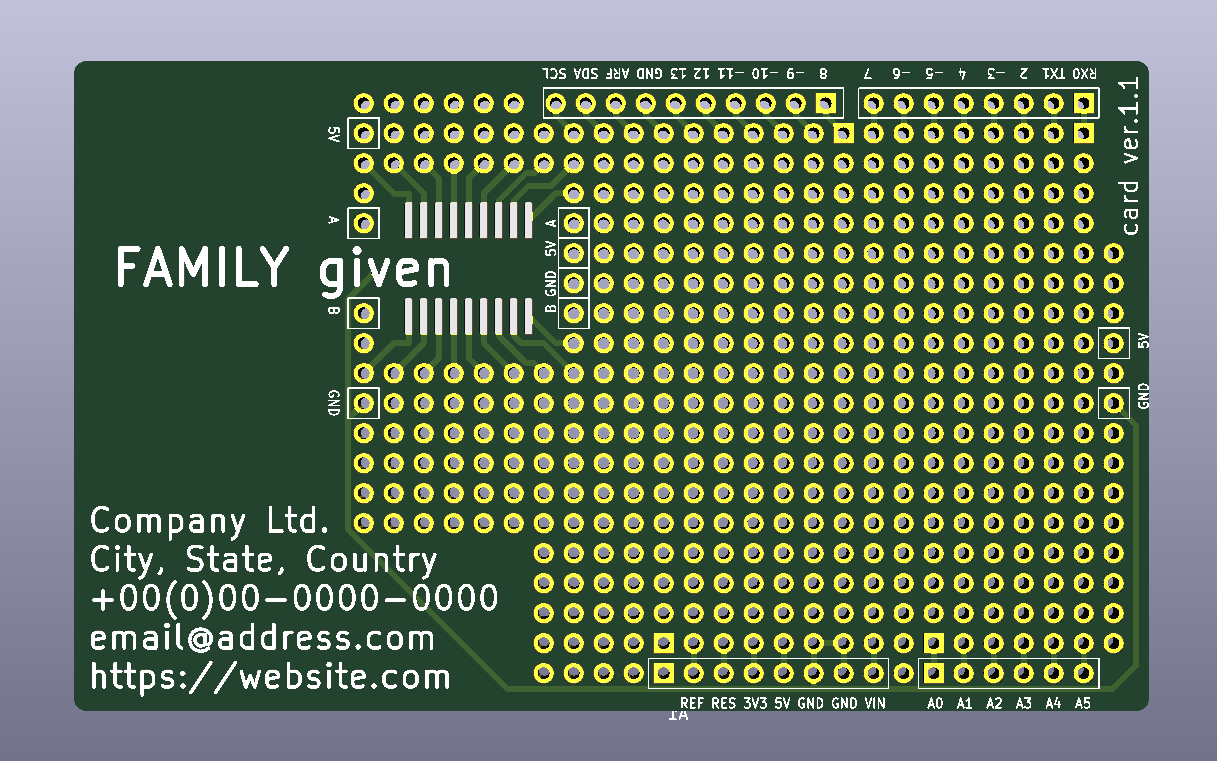

Namecard, from the project README
From the project README

Main components on the Namecard

Arduino_UNO_R3_mod

Namecard bill of materials (BOM)

6 components, 5 distinct parts.

QtyPartRefs
1
Arduino_UNO_R3_mod
A1
2
Conn_01x08
J1, J4
1
Conn_01x10
J2
1
Conn_01x06
J3
1
Conn_02x09_Counter_Clockwise
J20

Namecard design files

The KiCad project lives in the saoto28/pineapple60 repository on GitHub; these links point at the commit this page was built from.

Namecard: common questions

What microcontroller does the Namecard use?

The Namecard is built around the Arduino_UNO_R3_mod, from the AVR/Arduino family.

How big is the Namecard PCB?

The Namecard measures 91 × 55 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Namecard?

6 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Namecard design files?

From the saoto28/pineapple60 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Namecard design in my own project?

Yes, under the terms of its GPL-2.0 license, which saoto28 chose for the repository.

Can I test firmware for the Namecard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
