SBK NFET1
About the SBK NFET1 PCB
SBK NFET1 is an open source PCB design by sbarabe, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 10.7 × 9.9 mm, with 4 components from 4 distinct parts.
By type, the board carries 1 transistor, 1 connector, 1 diode and 1 resistor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Logic-level N-channel and P-channel MOSFET modules for education, breadboarding, and prototyping.

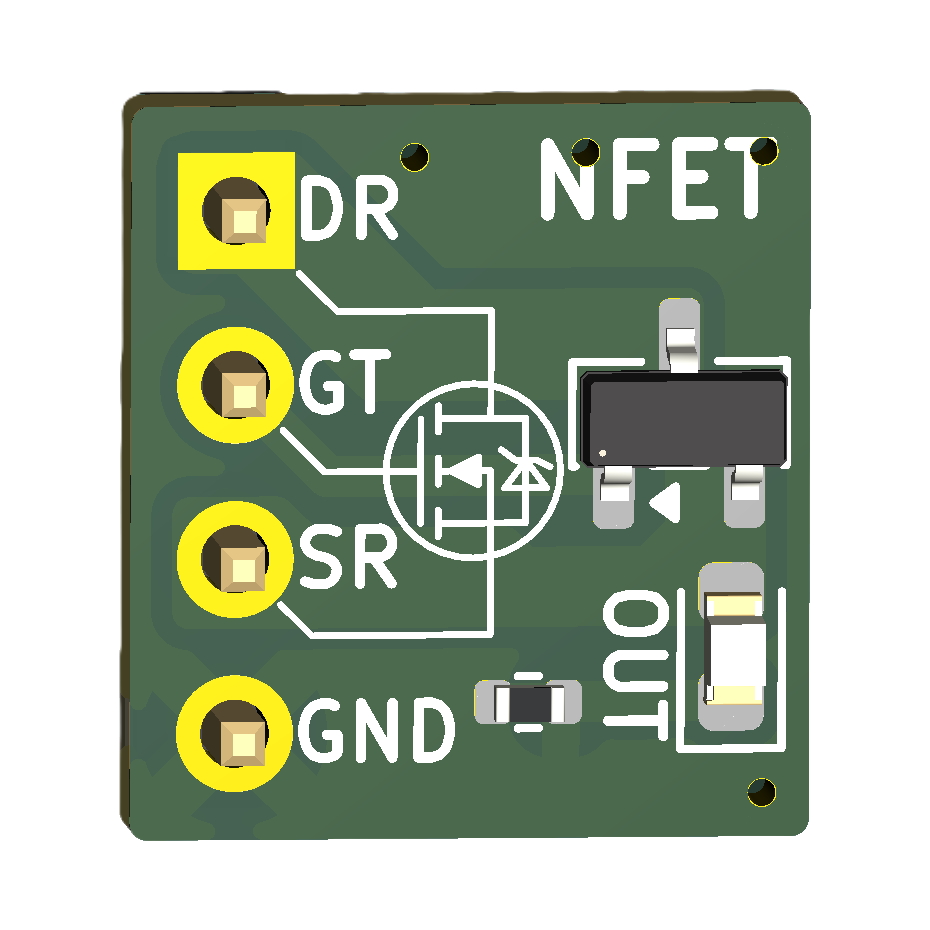

SBK_FET1 is a compact educational MOSFET module designed for breadboards, prototyping, and learning electronic switching circuits.
The module is available in both N-channel and P-channel versions and provides clearly labeled Drain, Gate, and Source connections. An optional output voltage indicator LED can be enabled by connecting the GND pin or disabled by leaving it unconnected.
SBK NFET1 bill of materials (BOM)
4 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AO3400A | SOT-23 | Q1 |
| 1 | 1 x 3 pin header | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | RED | LED_0603_1608Metric | D1 |
| 1 | 15 kΩ | R_0402_1005Metric | R2 |
SBK NFET1 design files
The KiCad project lives in the sbarabe/SBK_FET1 repository on GitHub; these links point at the commit this page was built from.
SBK NFET1: common questions
How big is the SBK NFET1 PCB?
The SBK NFET1 measures 10.7 × 9.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SBK NFET1?
4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SBK NFET1 design files?
From the sbarabe/SBK_FET1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SBK NFET1 design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which sbarabe chose for the repository.
