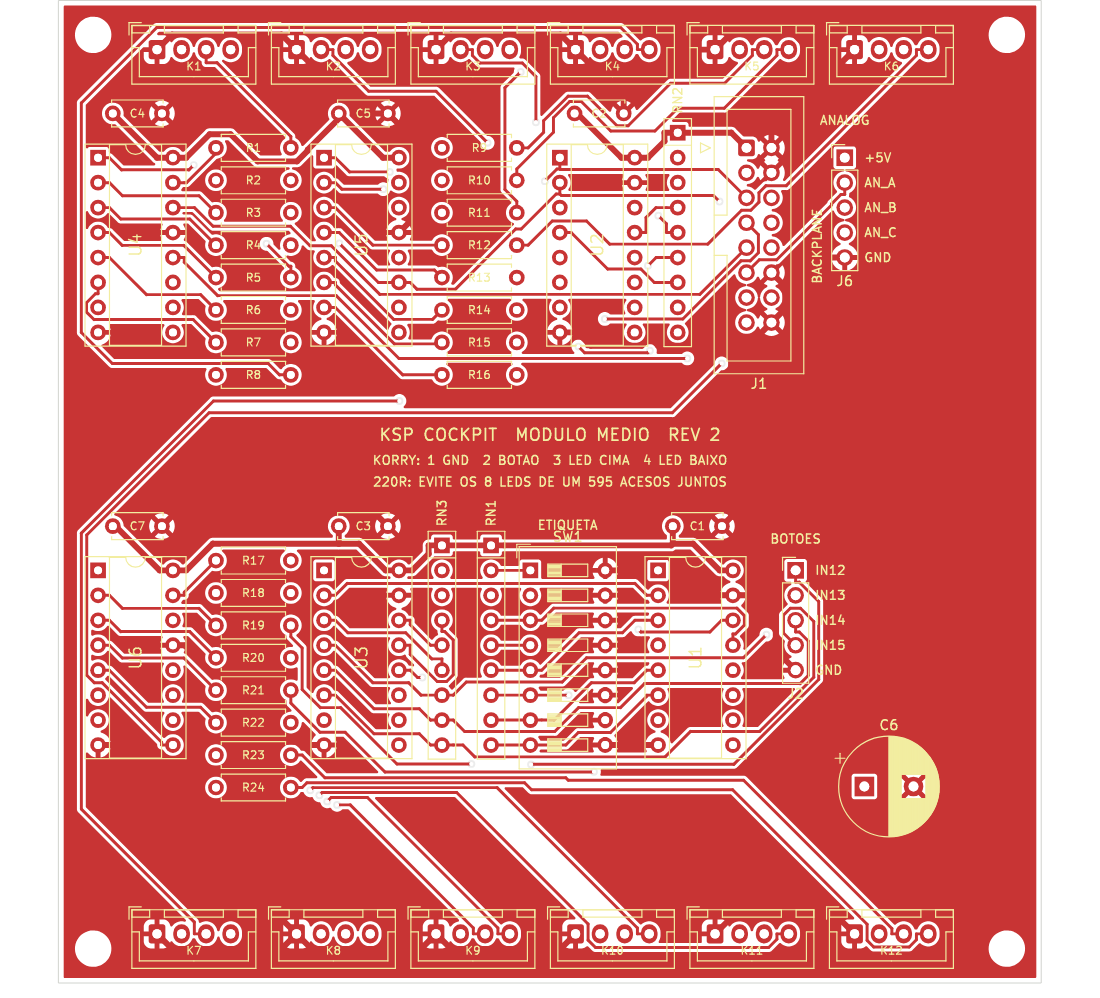

About the KSP PCB
KSP is an open source PCB design by Schackschuck, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 56 components from 22 distinct parts.
Other key parts include the 74HC165 and 74HC595. By type, the board carries 27 resistors, 12 relays, 7 capacitors, 6 ICs, 3 connectors and 1 switch.
From the project
Esquemáticos do painel, feitos no KiCad. Cada pasta tem também um PDF do esquema, que dá para ver sem instalar nada.
Esquemáticos do painel, feitos no KiCad. Cada pasta tem também um PDF do esquema, que dá para ver sem instalar nada.
A parte física (carcaça, aparência, os painéis da versão B e o sidestick) está em construcao.md. Peças feitas em casa e usadas em vários painéis têm pasta própria, com a ficha e os desenhos: korry/. A identidade visual diz como todo painel tem que parecer, e os desenhos dos painéis são gerados por código em desenho/.
Main components on the KSP
KSP bill of materials (BOM)
56 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 74HC165 | DIP-16_W7.62mm_Socket | U1, U2, U3 |
| 3 | 74HC595 | DIP-16_W7.62mm_Socket | U4, U5, U6 |
| 1 | Backplane (IDC 2x8) | IDC-Header_2x08_P2.54mm_Vertical | J1 |
| 1 | Entradas 12-15 | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | Analógico (joystick, acelerador) | PinHeader_1x05_P2.54mm_Vertical | J6 |
| 1 | Korry 1 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K1 |
| 1 | Korry 2 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K2 |
| 1 | Korry 3 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K3 |
| 1 | Korry 4 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K4 |
| 1 | Korry 5 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K5 |
| 1 | Korry 6 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K6 |
| 1 | Korry 7 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K7 |
| 1 | Korry 8 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K8 |
| 1 | Korry 9 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K9 |
| 1 | Korry 10 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K10 |
| 1 | Korry 11 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K11 |
| 1 | Korry 12 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | K12 |
| 1 | Etiqueta (DIP 8 vias) | SW_DIP_SPSTx08_Slide_9.78x22.5mm_W7.62mm_P2.54mm | SW1 |
| 6 | 100nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C1, C2, C3, C4, C5, C7 |
| 1 | 470uF | CP_Radial_D10.0mm_P5.00mm | C6 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 24 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 +16 |
| 3 | 10k | R_Array_SIP9 | RN1, RN2, RN3 |
KSP design files
The KiCad project lives in the Schackschuck/KSP repository on GitHub; these links point at the commit this page was built from.
KSP: common questions
How big is the KSP PCB?
The KSP measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KSP?
56 components, from 22 distinct parts. The full bill of materials is listed on this page.
Where can I download the KSP design files?
From the Schackschuck/KSP repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the KSP design in my own project?
The repository has no license, so all rights stay with Schackschuck. Use it as a reference, and ask the author before reusing the design.
