Yash redux
About the Yash redux PCB
Yash redux is an open source PCB design by scottericpetersen, published on GitHub under the GPL-3.0 license. It is a board, with 39 components from 22 distinct parts.
Other key parts include the LF398_DIP8, TL082 and 4093. By type, the board carries 18 resistors, 9 capacitors, 5 ICs, 4 transistors and 2 diodes.
From the project

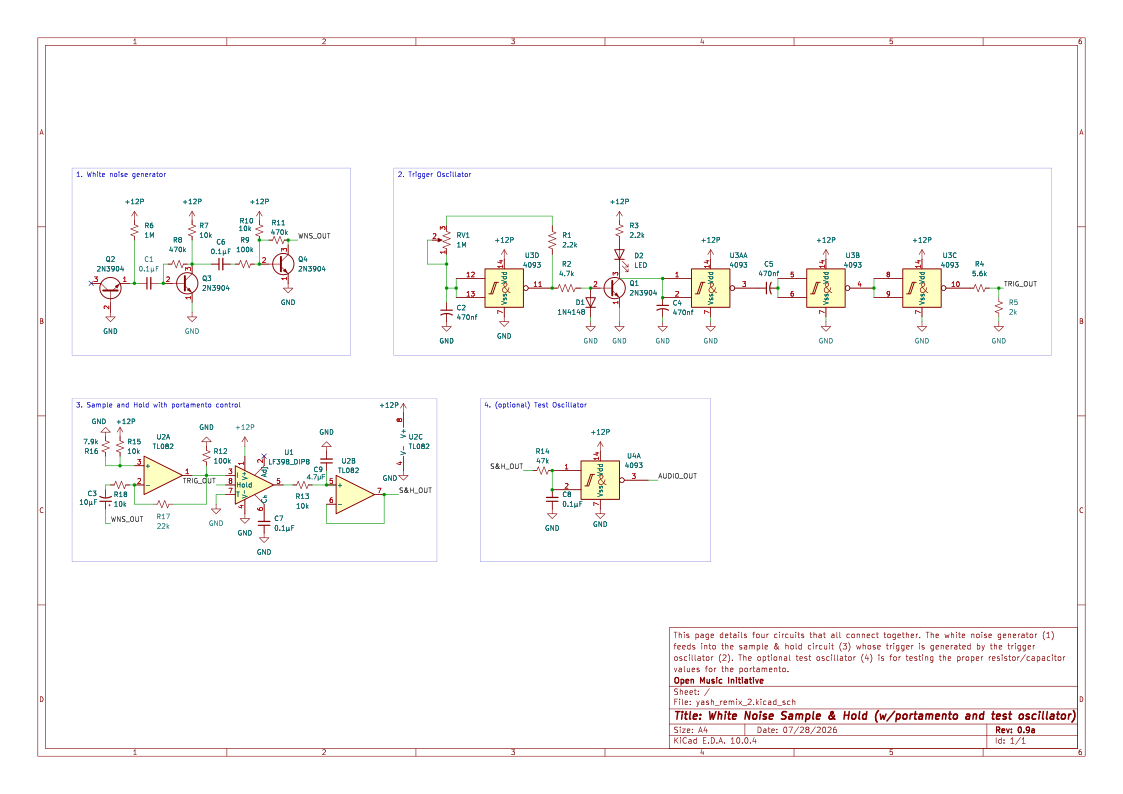

An extension of the classic YASH sample and hold circuit
This redux adds (1) a white noise circuit (by Ray Wilson), (2) scaling of the YASH output to work with CV in (for example, for the Koma Elektronik Field Kit), and (3) a test oscillator for testing/tuning the rest of the circuit.
Note: R16 in the schematic is drawn as 1 resistor (7.9k). This is actually two resistors: R16a 5.7k + R16b 2.2k = 7.9k combined.
Main components on the Yash redux
Yash redux bill of materials (BOM)
39 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LF398_DIP8 | DIP-8_W7.62mm | U1 |
| 1 | TL082 | U2 | |
| 3 | 4093 | U3, U3A, U4 | |
| 4 | 2N3904 | TO-92_Inline | Q1, Q2, Q3, Q4 |
| 1 | 1M | RV1 | |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1 |
| 1 | LED | D2 | |
| 4 | 0.1µF | C1, C6, C7, C8 | |
| 3 | 470nf | C2, C4, C5 | |
| 1 | 10µF | C3 | |
| 1 | 4.7µF | C9 | |
| 2 | 2.2k | R1, R3 | |
| 1 | 4.7k | R2 | |
| 1 | 5.6k | R4 | |
| 1 | 2k | R5 | |
| 1 | 1M | R6 | |
| 5 | 10k | R7, R10, R13, R15, R18 | |
| 2 | 470k | R8, R11 | |
| 2 | 100k | R9, R12 | |
| 1 | 47k | R14 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 7.9k | R16 | |
| 1 | 22k | R17 |
