Klaw PCB layout, top view — open source board by scrambletools

About the Klaw PCB

Klaw is an open source PCB design by scrambletools, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 128.6 × 98.5 mm, with 63 components from 14 distinct parts.

Other key parts include the -. By type, the board carries 18 jumpers, 18 switches, 18 diodes, 2 connectors, 2 battery holders and 1 IC.

It belongs with the keyboards, iot & wireless and displays & leds designs in this gallery.

From the project

34-key reversible split keyboard — one PCB for both halves; hotswap MX, per-key RGB, OLED, encoder, wired or wireless. KLOR-derived.

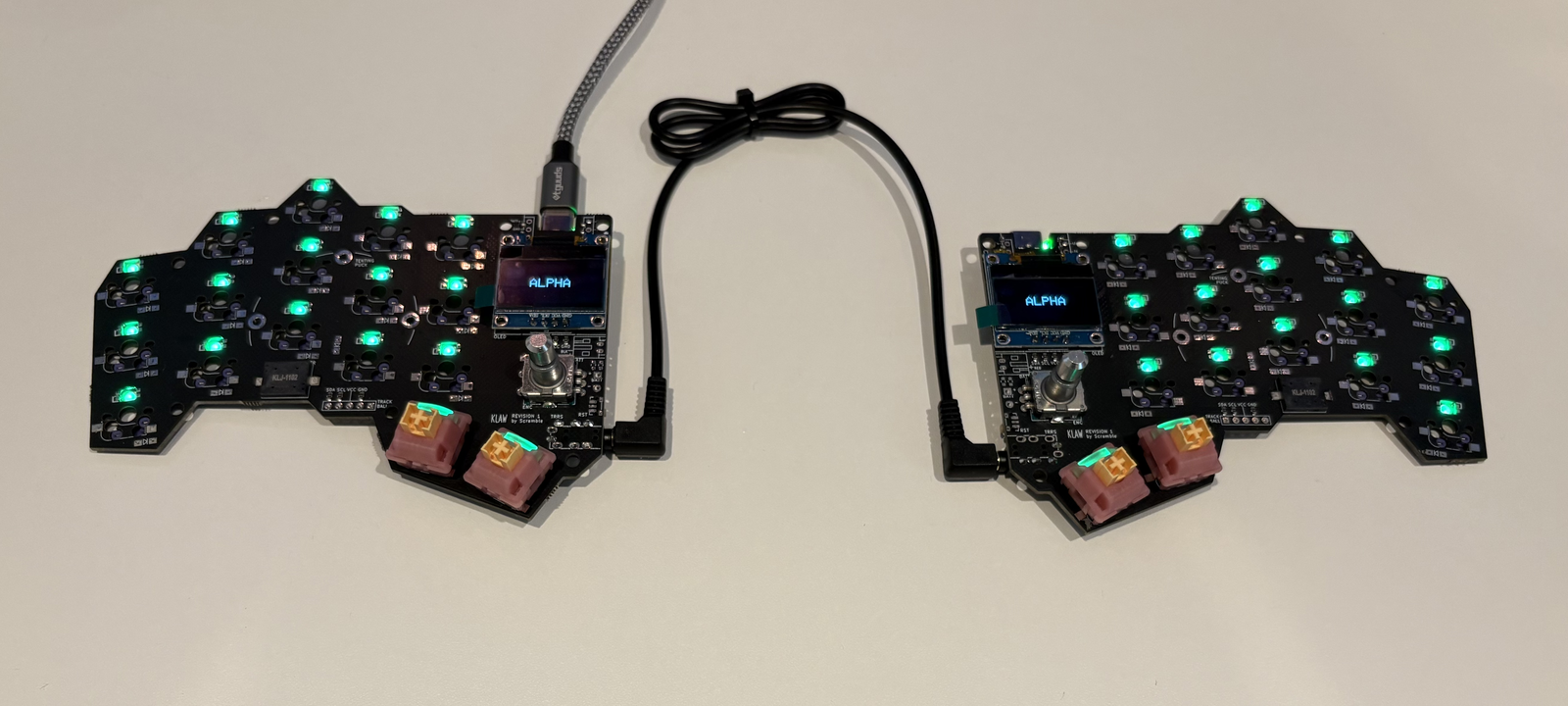

KLAW is a compact 34-key split keyboard with LEDs, OLED, buzzer and encoder. It is designed as one reversible PCB that serves both halves - components on the back face make the right half, components on the front face make the left half. One board design: the same gerber files can be used for both halves, with separate BOM and CPL files per half. Every component can be machine-assembled, but you may want to hand-assemble the MCU and OLED modules. The latest hardware revision is rev 2.

Klaw, from the project README
From the project README

Main components on the Klaw

-

Klaw bill of materials (BOM)

63 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
-
ProMicro
U1
1
PJ-320A-4P
J1
1
-
lv27
J3
1
C173752
JST Connector
BT1
1
Battery_Cell
BT2
1
C201047
Buzzer
BZ1
18
0603WAF0000T5E
0R
JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 +10
1
C431540
SW_DPDT_x2
PSW1
1
C110293
SW_Push
RSW1
17
SK6812MINI-EA
SW_PUSH-MX_W_LED
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +9
1
EC11N1525404
SW18
1
-
SSD1306
OLED1
15
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +7
3
C81598
1N4148W
D18, D20, D21

Klaw design files

The KiCad project lives in the scrambletools/klaw repository on GitHub; these links point at the commit this page was built from.

Klaw: common questions

How big is the Klaw PCB?

The Klaw measures 128.6 × 98.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Klaw?

63 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Klaw design files?

From the scrambletools/klaw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Klaw design in my own project?

Yes, under the terms of its GPL-3.0 license, which scrambletools chose for the repository.
