Smart Door Sensor

SeanP2001·Smart_Door_Sensor·PCB/Smart_Door_Sensor/Smart_Door_Sensor.kicad_pcb

Smart Door Sensor PCB layout, top view — open source board by SeanP2001

About the Smart Door Sensor PCB

Smart Door Sensor is an open source PCB design by SeanP2001, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 64.8 × 57.2 mm, with 11 components from 8 distinct parts.

Other key parts include the Wemos_Lolin32_Lite and Door_Sensor. By type, the board carries 5 resistors, 2 ICs, 2 switches, 1 buzzer and 1 diode.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

A sensor which sends an email notification whenever somebody opens a door.

This originally started as a university project, and I have continued to develop this idea in my spare time.

This project is a smart door alarm for security in university accommodation and hotel rooms. When somebody enters the room, the buzzer will sound, or the device will email the user. This standalone device does not require a smart hub to operate.

1. Plug the device into a phone charger and switch the charger on.

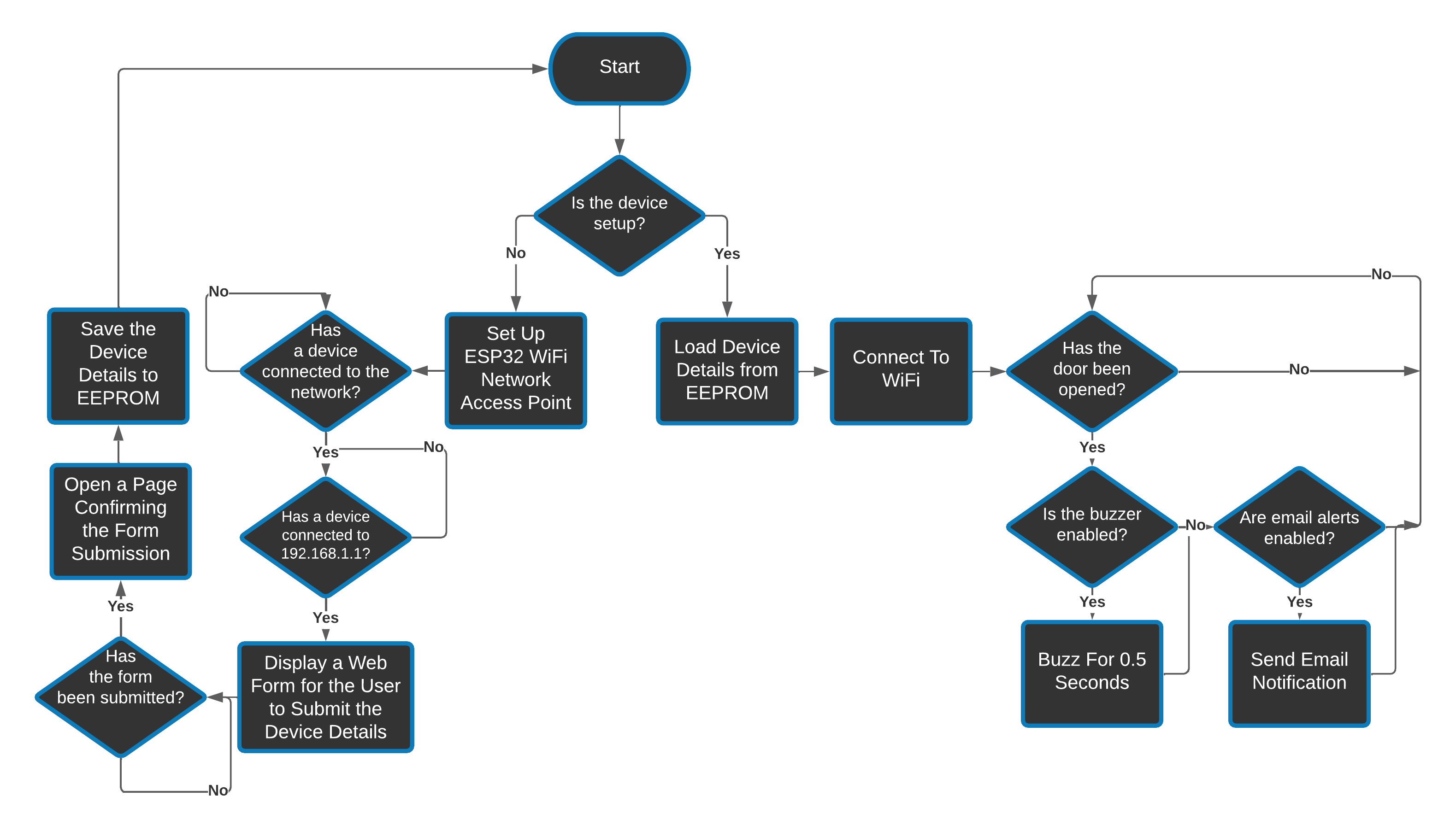

Smart Door Sensor, from the project README
From the project README

Main components on the Smart Door Sensor

Wemos_Lolin32_LiteDoor_Sensor

Smart Door Sensor bill of materials (BOM)

11 components, 8 distinct parts.

QtyPartRefs
1
Wemos_Lolin32_Lite
U1
1
Door_Sensor
U2
1
Buzzer
BZ1
2
SW_SPDT
SW1, SW2
1
LED_RKGB
D1
3
10k
R1, R2, R4
1
100R
R3
1
220R
R5

Smart Door Sensor design files

The KiCad project lives in the SeanP2001/Smart_Door_Sensor repository on GitHub; these links point at the commit this page was built from.

Smart Door Sensor: common questions

How big is the Smart Door Sensor PCB?

The Smart Door Sensor measures 64.8 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Smart Door Sensor?

11 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Smart Door Sensor design files?

From the SeanP2001/Smart_Door_Sensor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Smart Door Sensor design in my own project?

Yes, under the terms of its GPL-3.0 license, which SeanP2001 chose for the repository.
