Microphone
Mentra-Community·OpenSourceSmartGlasses·electronics_and_firmware/endpiece_mic_board_v0p2/microphone.kicad_pcb
About the Microphone PCB
Microphone is an open source PCB design by Mentra-Community, published on GitHub under the MIT license. It is a 2-layer board measuring 5.5 × 6.1 mm, with 6 components from 6 distinct parts.
Other key parts include the MCP1702. By type, the board carries 2 capacitors, 2 resistors, 1 IC and 1 connector.
It belongs with the wearables and sensors designs in this gallery.
From the project

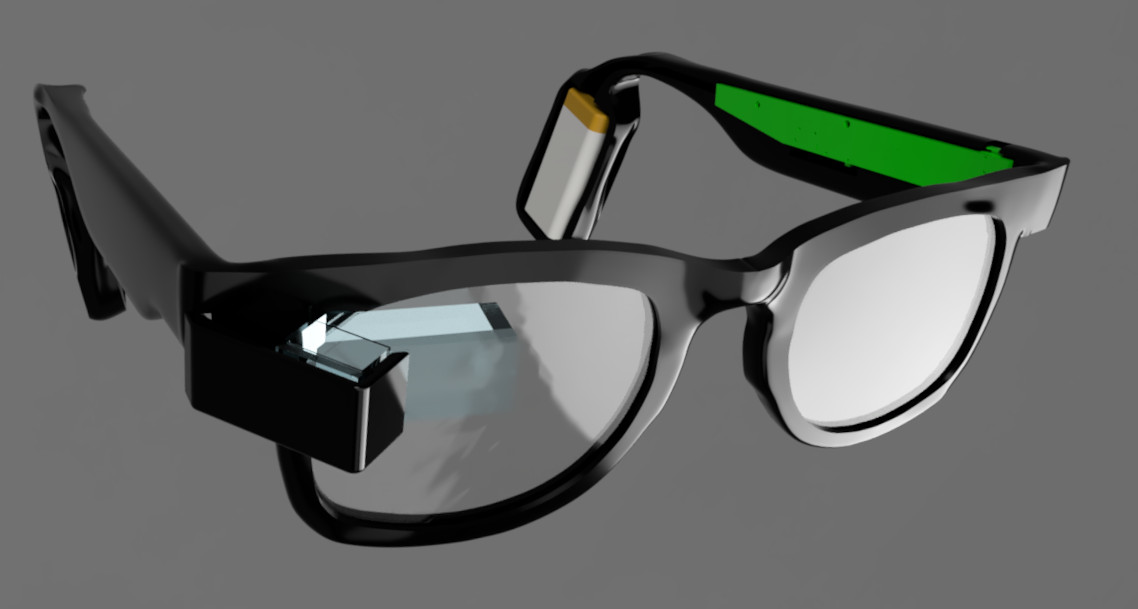

Open Source smart glasses designed to be 1. All day wearable 2. Immediately useful 3. Extendable for makers, startups, and everyone else.
Smart glasses with display, microphones, wireless phone connection, prescription lenses, hours of battery life, and LED indicator. These glasses connect directly to the Wearable Intelligence System, so they host a suite of apps like live language translation, contextual search engine, intelligent assistant, web search, and more.
We're building open source smart glasses designed to be: 1. All day wearable 2. Immediately useful 3. Extendable for makers, startups, and everyone else.

Main components on the Microphone
Microphone bill of materials (BOM)
6 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP1702 SPH0645LMH | MIC_SPH0645LM4H-B | U1 |
| 1 | I2S_MIC_EXT | Solder-5P-Connector | J1 |
| 1 | 10UF 100nF/C0G | C_0402_1005Metric | C1 |
| 1 | 0.1UF 1uF/C0G | C_0402_1005Metric | C2 |
| 1 | 10K 0R* | R_0402_1005Metric | R1 |
| 1 | 0R* | R_0402_1005Metric | R2 |
Microphone design files
The KiCad project lives in the Mentra-Community/OpenSourceSmartGlasses repository on GitHub; these links point at the commit this page was built from.
Microphone: common questions
How big is the Microphone PCB?
The Microphone measures 5.5 × 6.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Microphone?
6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Microphone design files?
From the Mentra-Community/OpenSourceSmartGlasses repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Microphone design in my own project?
Yes, under the terms of its MIT license, which Mentra-Community chose for the repository.
