Button

SeanP2001·Sunrise_Alarm_Clock_V3·PCBs/Button_PCB/Button_PCB.kicad_pcb

Button PCB layout, top view — open source board by SeanP2001

About the Button PCB

Button is an open source PCB design by SeanP2001, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 42.5 × 26.9 mm, with 4 components from 4 distinct parts.

It belongs with the displays & leds designs in this gallery.

From the project

- Introduction - Brief - Development Roadmap - Circuitry - Schematics - Main PCB - Button PCB - Light PCB - PCB Design - Main PCB - Button PCB - Light PCB - Soldering - Main PCB - Button PCB - Light PCB - Enclosure - CAD Enclosure - Assembled Enclosure - Code - Documentation - Ho

- Introduction - Brief - Development Roadmap - Circuitry - Schematics - Main PCB - Button PCB - Light PCB - PCB Design - Main PCB - Button PCB - Light PCB - Soldering - Main PCB - Button PCB - Light PCB - Enclosure - CAD Enclosure - Assembled Enclosure - Code - Documentation - How to Add a New App - Further Work

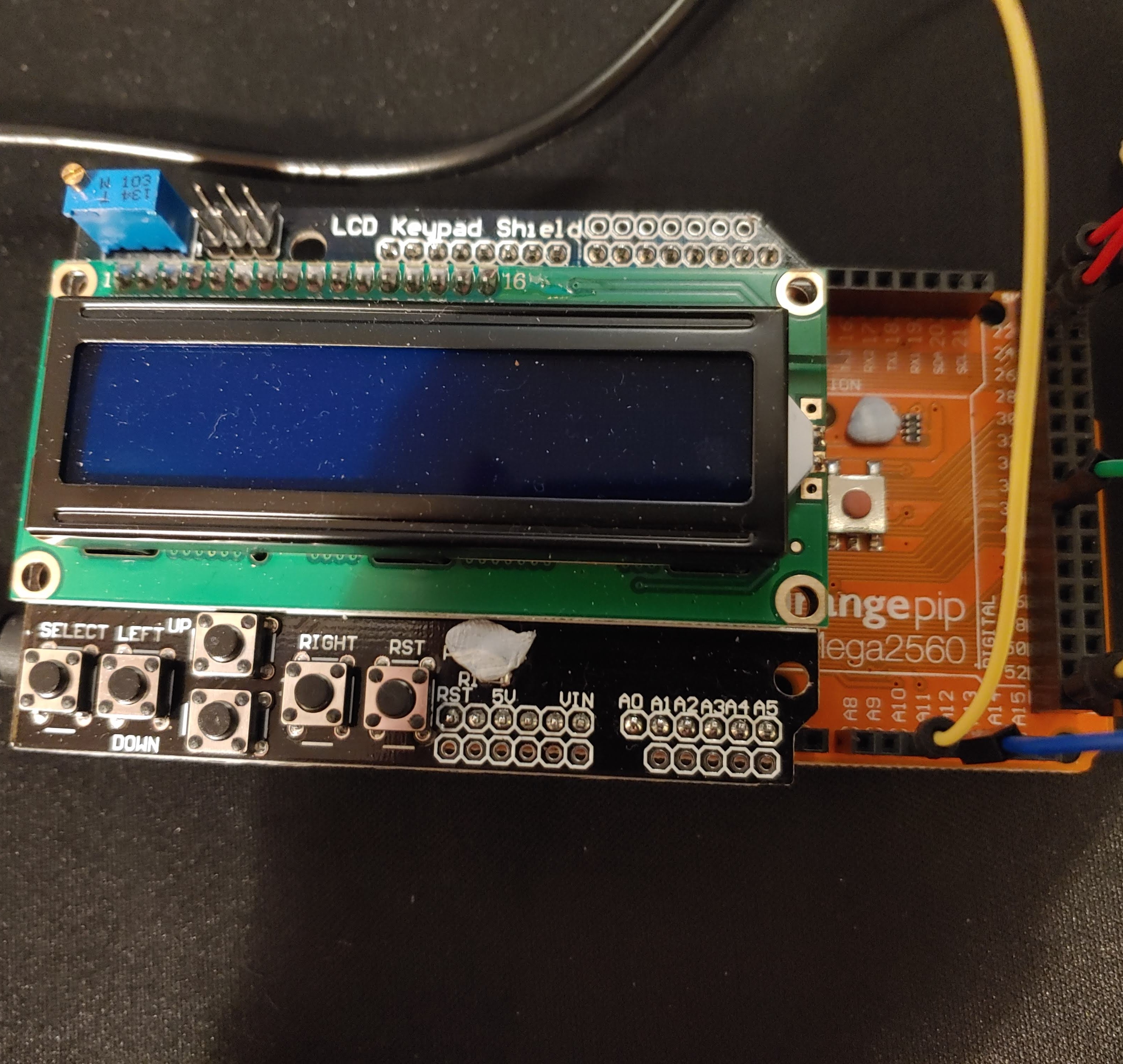

This is the third version of the "Sunrise Alarm Clock" project. The first version used an Arduino Mega and an LCD keypad shield. The second version used a Wemos D1 mini (ESP8266) and 0.96" OLED on a single custom PCB. This design was fully functional but it did not look like an alarm…

Button, from the project README
From the project README

Button bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
Conn_01x05_Male
J1
1
RIGHT_BUTTON
J2
1
MIDDLE_BUTTON
J3
1
LEFT_BUTTON
J4

Button design files

The KiCad project lives in the SeanP2001/Sunrise_Alarm_Clock_V3 repository on GitHub; these links point at the commit this page was built from.

Button: common questions

How big is the Button PCB?

The Button measures 42.5 × 26.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Button?

4 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Button design files?

From the SeanP2001/Sunrise_Alarm_Clock_V3 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Button design in my own project?

Yes, under the terms of its GPL-3.0 license, which SeanP2001 chose for the repository.
