PLA NCK PCB layout, top view — open source board by shanna

About the PLA NCK PCB

PLA NCK is an open source PCB design by shanna, published on GitHub. It is a 2-layer board measuring 118.7 × 103.8 mm, with 54 components from 7 distinct parts.

Other key parts include the nice!nano. By type, the board carries 24 switches, 24 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

A low profile split keyboard I built using Gateron KS-33 low profile switches.

A low profile split keyboard I built using Gateron KS-33 low profile switches.

I had assembled a Ferris Sweep previously but I hated the Kailh Low Profile Choc Switches but but wanted something low profile. Sincve I couldn't find anything at the time I decided to learn KiCad and Fusion360 to create my own design.

I've called it the PLA_NCK because my original intention was to create a split ZSA Planck EZ (discontinued) since it has probably been my favourite layout to date. I justed wanted a split, bluetooth and low profile version with Gateron KS-33 switches after using the NuPhy Air60…

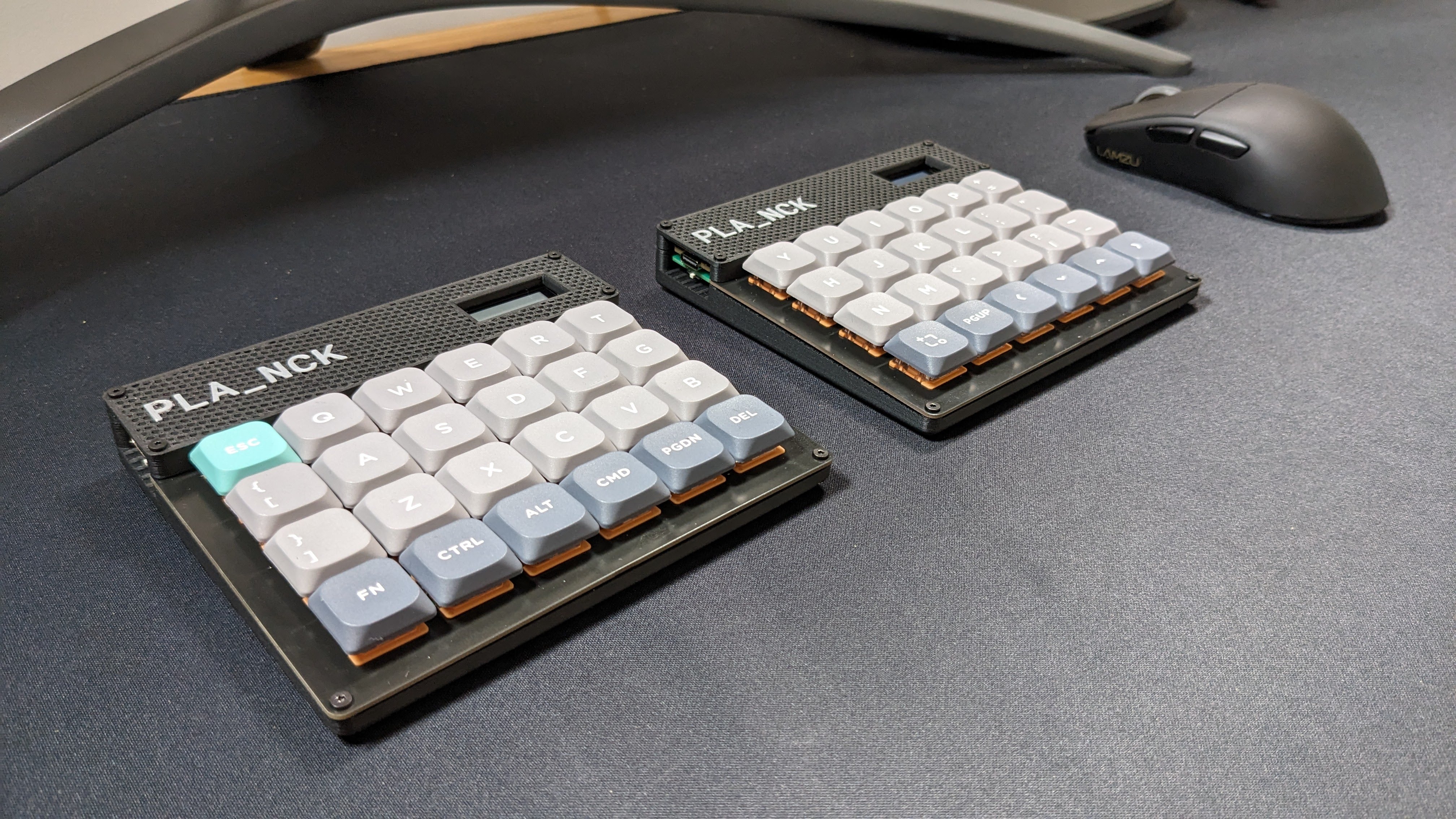

PLA NCK, from the project README
From the project README

Main components on the PLA NCK

nice!nano

PLA NCK bill of materials (BOM)

54 components, 7 distinct parts.

QtyPartRefs
1
nice!nano
U1
2
MountingHole_Pad
Bat+1, BatGND1
1
nice!view
Display1
1
RESET
RSW1
24
Gateron KS-27
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +16
1
SW_SPDT
SW_POWER1
24
diode
D1, D2, D3, D4, D5, D6, D7, D8 +16
