About the Dual-DC-Motor-Controller PCB

Dual-DC-Motor-Controller is an open source PCB design by SharanyaCS2004, published on GitHub. It is a 2-layer board measuring 140.5 × 99.8 mm, with 10 components from 6 distinct parts.

By type, the board carries 4 diodes, 3 connectors, 2 modules and 1 capacitor.

It belongs with the robotics & motion designs in this gallery.

From the project

This project is a simple and efficient dual DC motor driver module based on the L298N IC. It's designed to drive two DC motors with full H-bridge control and includes protection diodes and input/output connectors. Ideal for robotics kits, embedded systems, and motor control learn

This project is a simple and efficient dual DC motor driver module based on the L298N IC. It's designed to drive two DC motors with full H-bridge control and includes protection diodes and input/output connectors. Ideal for robotics kits, embedded systems, and motor control learners.

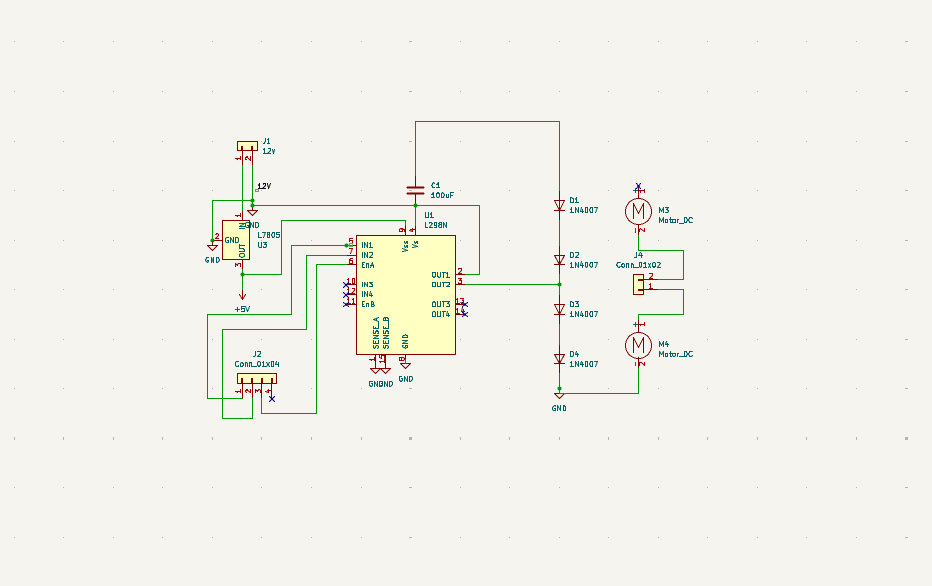

- ✅ Based on L298N dual H-bridge motor driver IC - ✅ Supports 2 DC motors with direction control - ✅ Optional PWM speed control via ENA/ENB - ✅ Flyback diodes (1N4007) for protection - ✅ Terminal blocks for motors and power - ✅ Logic level input via header pins - ✅ 2-layer compact PCB layout

Dual-DC-Motor-Controller, from the project README
From the project README

Dual-DC-Motor-Controller bill of materials (BOM)

10 components, 6 distinct parts.

QtyPartRefs
2
Motor_DC
M3, M4
1
12v
J1
1
Conn_01x04
J2
1
Conn_01x02
J4
4
1N4007
D1, D2, D3, D4
1
100uF
C1

Dual-DC-Motor-Controller design files

The KiCad project lives in the SharanyaCS2004/Dual-DC-Motor-Controller repository on GitHub; these links point at the commit this page was built from.

Dual-DC-Motor-Controller: common questions

How big is the Dual-DC-Motor-Controller PCB?

The Dual-DC-Motor-Controller measures 140.5 × 99.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Dual-DC-Motor-Controller?

10 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dual-DC-Motor-Controller design files?

From the SharanyaCS2004/Dual-DC-Motor-Controller repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Dual-DC-Motor-Controller design in my own project?

The repository has no license, so all rights stay with SharanyaCS2004. Use it as a reference, and ask the author before reusing the design.
