Stack chan
About the Stack chan PCB

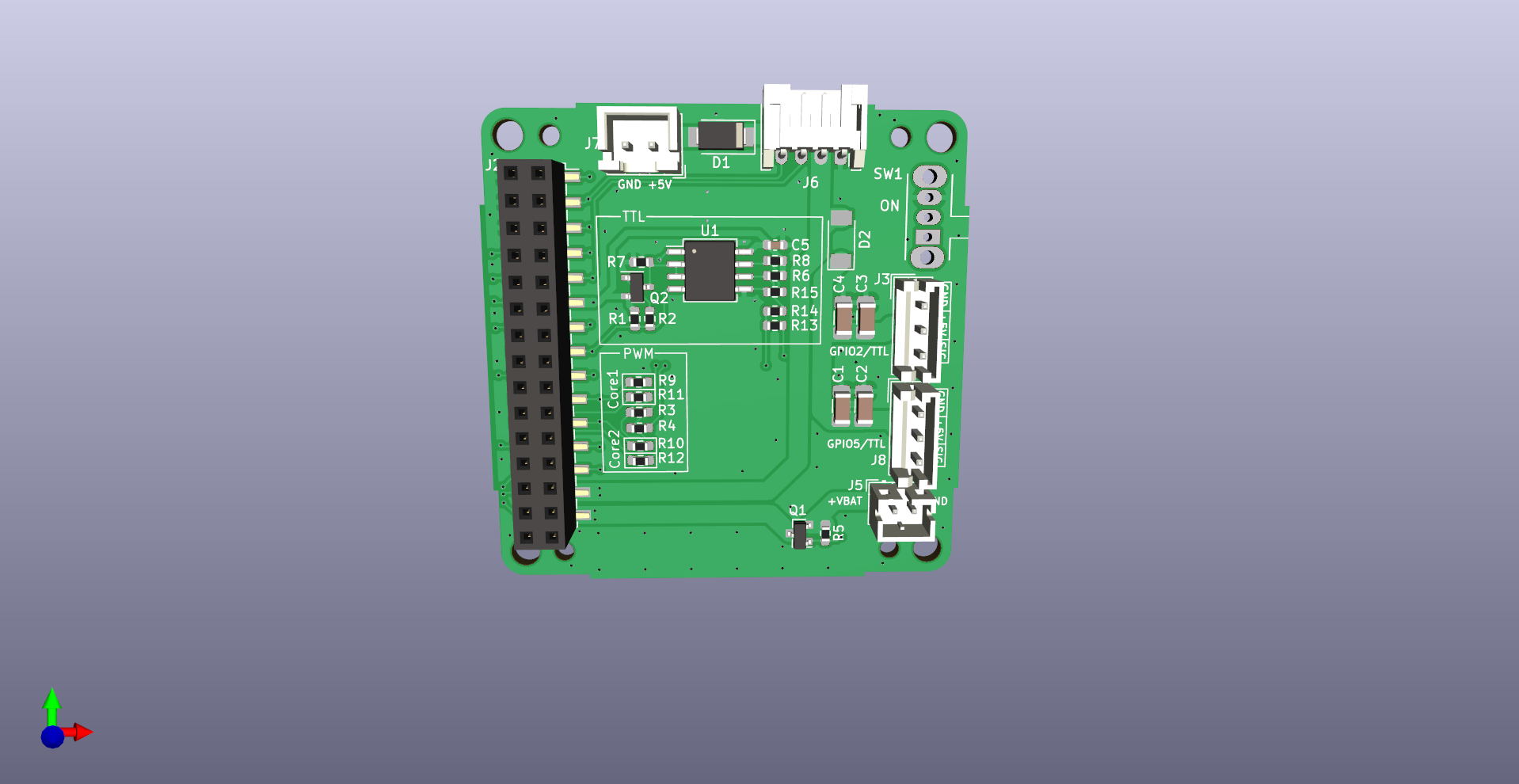

Stack chan is an open source PCB design by stack-chan, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 50 × 50 mm, with 33 components from 23 distinct parts.
Other key parts include the MAX3485. By type, the board carries 15 resistors, 7 connectors, 5 capacitors, 2 transistors, 2 diodes and 1 IC.
It belongs with the robotics & motion and power & battery designs in this gallery.
From the project
A JavaScript-driven M5Stack-embedded super-kawaii robot.
Drive two servos PWM 2ch or Serial 2ch M5Unit PortB External 5V Power Supply Battery, which can be charged through M5Stack. * (Optional) Power switch
See the parts list on our GitHub Pages (under construction)
Pros: Low cost Very low cost (~500yen), easy to find. PortC (serial communication) is available for users.
Cons: Difficult to control and having a (small) safety risk. Difficult to change its angle smoothly. Inrush current is high and may cause the M5Stack to power down in rare cases. SG90 possibly get very hot and may emit smoke when overloaded, such as when the angle exceeds the…
Main components on the Stack chan
Stack chan bill of materials (BOM)
33 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX3485 | SO-8_5.3x6.2mm_P1.27mm | U1 |
| 1 | IRLML6402 | SOT-23 | Q1 |
| 1 | BC857 | SOT-23 | Q2 |
| 1 | Conn_02x15_Odd_Even | PinHeader_2x15_P2.54mm_Vertical_SMD | J1 |
| 1 | Conn_02x15_Odd_Even | PinSocket_2x15_P2.54mm_Vertical_SMD | J2 |
| 2 | Conn_01x03 | JST_EH_B3B-EH-A_1x03_P2.50mm_Vertical | J3, J8 |
| 1 | BAT | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | J5 |
| 1 | Conn_01x04 | JST_PH_S4B-PH-K_1x04_P2.00mm_Horizontal | J6 |
| 1 | 5V_POWER | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J7 |
| 1 | SW_SPDT | SW_CuK_OS102011MA1QN1_SPDT_Angled | SW1 |
| 1 | SS54 | D_SMA | D1 |
| 1 | PMEG3030EP | D_SOD-128 | D2 |
| 4 | 100u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2, C3, C4 |
| 1 | 0.1u | C_0603_1608Metric | C5 |
| 1 | 10k | R_0603_1608Metric | R1 |
| 1 | 5.1k | R_0603_1608Metric | R2 |
| 2 | 1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R4 |
| 1 | 47k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5 |
| 1 | 2k | R_0603_1608Metric | R6 |
| 1 | 20k | R_0603_1608Metric | R7 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 2.2k | R_0603_1608Metric | R8, R15 |
| 4 | 0 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R9, R10, R11, R12 |
| 2 | 0 | R_0603_1608Metric | R13, R14 |
Stack chan design files
The KiCad project lives in the stack-chan/stack-chan repository on GitHub; these links point at the commit this page was built from.
Stack chan: common questions
How big is the Stack chan PCB?
The Stack chan measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Stack chan?
33 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the Stack chan design files?
From the stack-chan/stack-chan repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Stack chan design in my own project?
Yes, under the terms of its Apache-2.0 license, which stack-chan chose for the repository.
