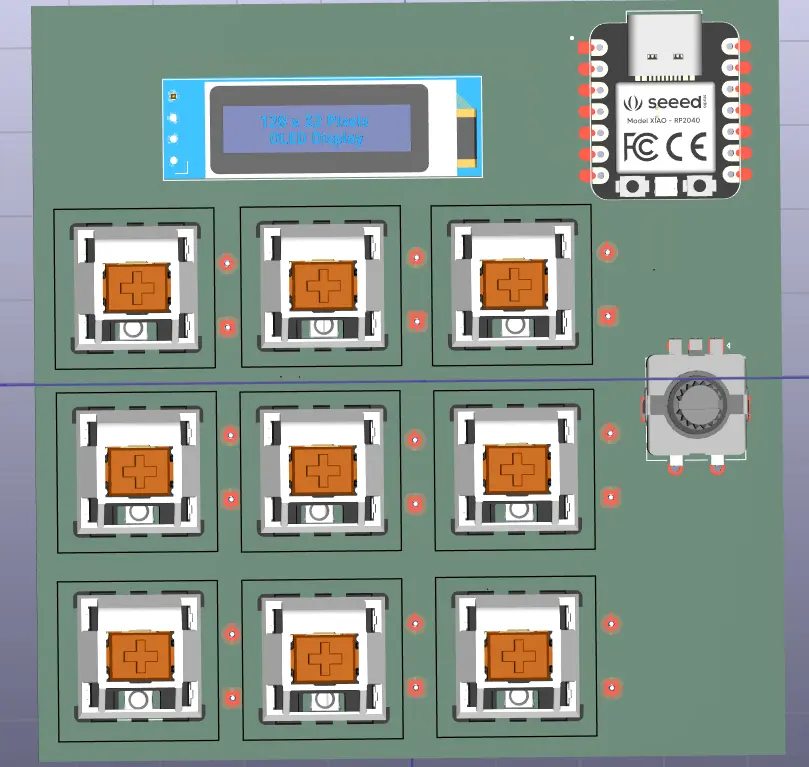

Side kick
About the Side kick PCB
Side kick is an open source PCB design by shivamsinghydv, published on GitHub. It is a 2-layer board measuring 89 × 90 mm, with 31 components from 7 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO and ER_OLEDM0.91_1x-I2C. By type, the board carries 18 diodes, 10 switches, 2 ICs and 1 connector.
From the project
This repository contains design files of HackPad.
Main components on the Side kick
Side kick bill of materials (BOM)
31 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 1 | ER_OLEDM0.91_1x-I2C | ER_OLEDM0.91_1x-I2C | U2 |
| 1 | Conn_01x02_Pin | PinHeader_1x02_P1.00mm_Vertical | J1 |
| 9 | ~ | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW18 |
| 9 | ~ | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +1 |
| 9 | SK6812MINI-E | LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount | D19, D23, D24, D25, D26, D27, D28, D29 +1 |
Side kick design files
The KiCad project lives in the shivamsinghydv/side-kick repository on GitHub; these links point at the commit this page was built from.
- LayoutHackPad.kicad_pcb
- SchematicHackPad.kicad_sch
Side kick: common questions
How big is the Side kick PCB?
The Side kick measures 89 × 90 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Side kick?
31 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Side kick design files?
From the shivamsinghydv/side-kick repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Side kick design in my own project?
The repository has no license, so all rights stay with shivamsinghydv. Use it as a reference, and ask the author before reusing the design.
