shreeyuvan2020·Onekey·onekey/PCB/onekey.kicad_pcb

Onekey PCB layout, top view — open source board by shreeyuvan2020

About the Onekey PCB

Onekey is an open source PCB design by shreeyuvan2020, published on GitHub. It is a 2-layer board measuring 28.5 × 22.6 mm, with 6 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 1 IC, 1 connector, 1 switch, 1 LED, 1 capacitor and 1 resistor.

It belongs with the keyboards designs in this gallery.

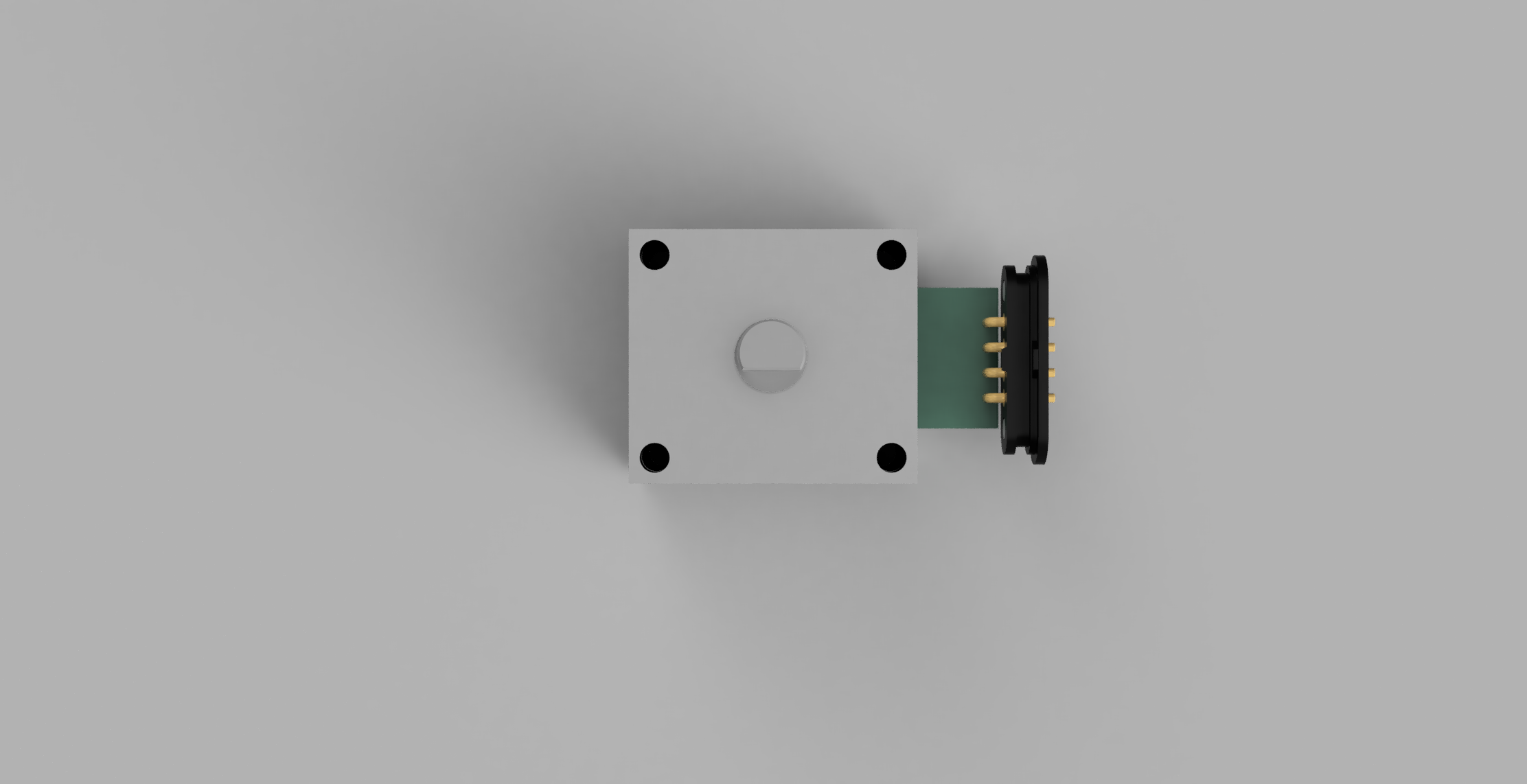

Onekey, from the project README
From the project README

Main components on the Onekey

MOUDLE-SEEEDUINO-XIAO

Onekey bill of materials (BOM)

6 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
Conn_01x04_Socket
J1
1
SW_Push
SW1
1
SK6812MINI-E
LED1
1
0.1 uF
C1
1
330 ohms
R1

Onekey design files

The KiCad project lives in the shreeyuvan2020/Onekey repository on GitHub; these links point at the commit this page was built from.

Onekey: common questions

How big is the Onekey PCB?

The Onekey measures 28.5 × 22.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Onekey?

6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Onekey design files?

From the shreeyuvan2020/Onekey repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Onekey design in my own project?

The repository has no license, so all rights stay with shreeyuvan2020. Use it as a reference, and ask the author before reusing the design.
