PierogiNixie-PSU

SonOfCheevap·PierogiNixie-PSU·V1.2/PierogiNixiePSU.kicad_pcb

PierogiNixie-PSU PCB layout, top view — open source board by SonOfCheevap

Simulate this board

About the PierogiNixie-PSU PCB

PierogiNixie-PSU is an open source PCB design by SonOfCheevap, published on GitHub under the MIT license. It is a 4-layer board measuring 49.7 × 36.6 mm, with 21 components from 15 distinct parts.

Other key parts include the MAX1771xSA. By type, the board carries 9 capacitors, 4 resistors, 3 connectors, 1 IC, 1 transistor and 1 diode.

It belongs with the power & battery and displays & leds designs in this gallery.

From the project

A simple 12v to 150v-250v DC-DC Power supply for use with nixie tubes.

This is a modified version of an already existing PSU. Link to the original: https://www.electronics-lab.com/project/hv-nixie-dc-dc-switching-power-supply/

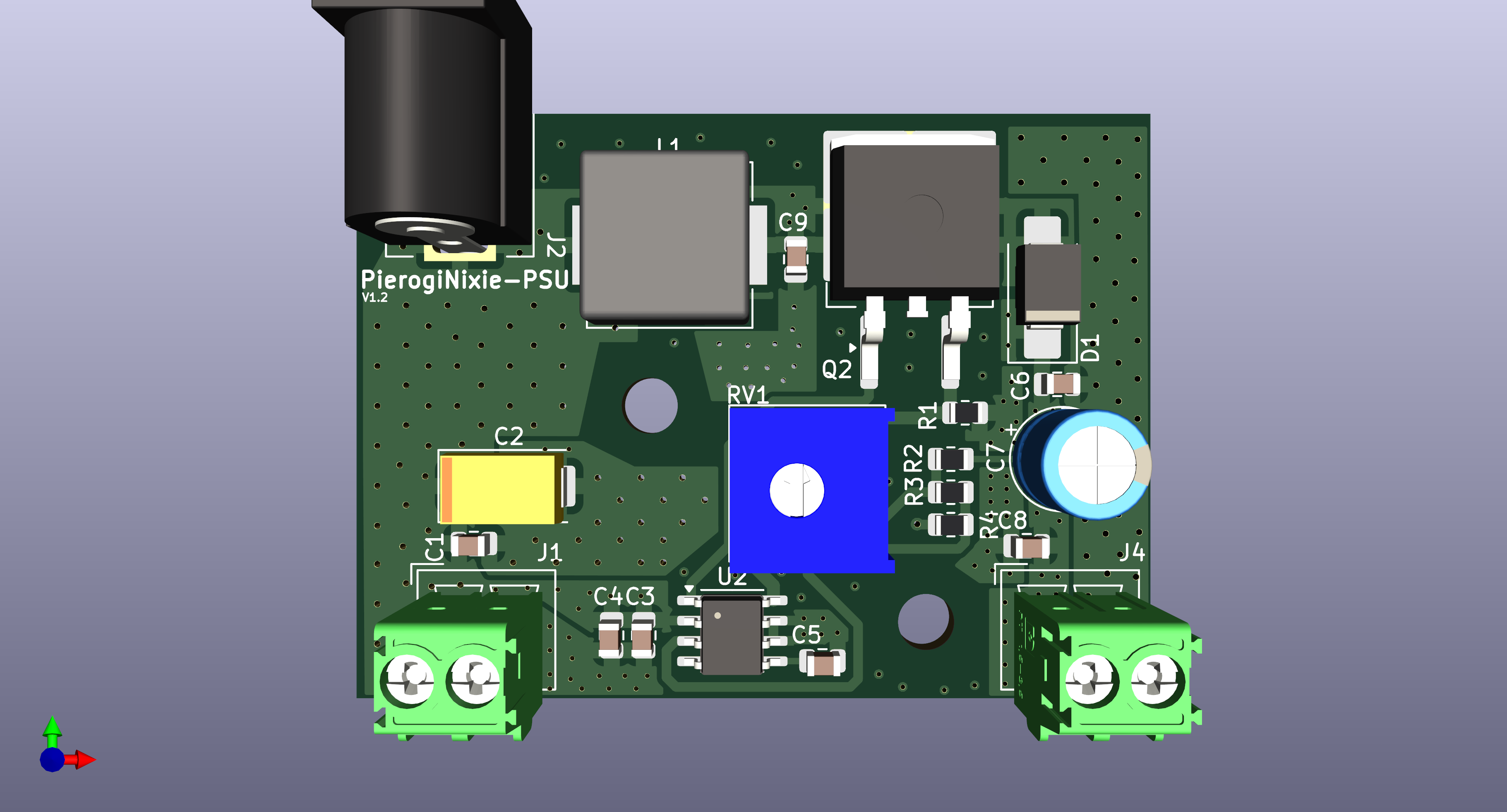

PierogiNixie-PSU, from the project README — From the project README

Main components on the PierogiNixie-PSU

PierogiNixie-PSU bill of materials (BOM)

21 components, 15 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	MAX1771xSA	SO-8_3.9x4.9mm_P1.27mm	U2
1	IRF740	TO-263-2	Q2
2	1984617	PhoenixContact_MCV_1,5_2-G-3.5_1x02_P3.50mm_Vertical	J1, J4
1	Barrel Jack	BarrelJack_Kycon_KLDX-0202-xC_Horizontal	J2
1	5K	Potentiometer_Bourns_3386P_Vertical	RV1
1	ES2F-E3	D_SMB_Handsoldering	D1
1	100uH	L_Vishay_IHLP-4040	L1
6	0.1uF	C_0805_2012Metric	C1, C3, C5, C6, C8, C9
1	TAJD107K020RNJ 100uF	CP_EIA-7343-30_AVX-N	C2
1	10uF	C_0805_2012Metric	C4
1	4.7uF	CP_Radial_D6.3mm_P2.50mm	C7
1	50m	R_0805_2012Metric	R1
1	1.5M	R_0805_2012Metric	R2
1	3.4K	R_0805_2012Metric	R3
1	10K	R_0805_2012Metric	R4

PierogiNixie-PSU design files

The KiCad project lives in the SonOfCheevap/PierogiNixie-PSU repository on GitHub; these links point at the commit this page was built from.

PierogiNixie-PSU: common questions

How big is the PierogiNixie-PSU PCB?

The PierogiNixie-PSU measures 49.7 × 36.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the PierogiNixie-PSU?

21 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PierogiNixie-PSU design files?

From the SonOfCheevap/PierogiNixie-PSU repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PierogiNixie-PSU design in my own project?

Yes, under the terms of its MIT license, which SonOfCheevap chose for the repository.
