Akimbo

Spaceboards·SpaceboardsHardware·Keyboards/Akimbo/choc/kicad/Akimbo.kicad_pcb

Akimbo PCB layout, top view — open source board by Spaceboards
Simulate this board

About the Akimbo PCB

Akimbo is an open source PCB design by Spaceboards, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 95.4 × 64.8 mm, with 7 components from 3 distinct parts.

Other key parts include the ProMicro. By type, the board carries 5 switches, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

A collection of open source hardware that has been designed by Spaceboards

You only have 10 fingers why would you need more than 10 keys

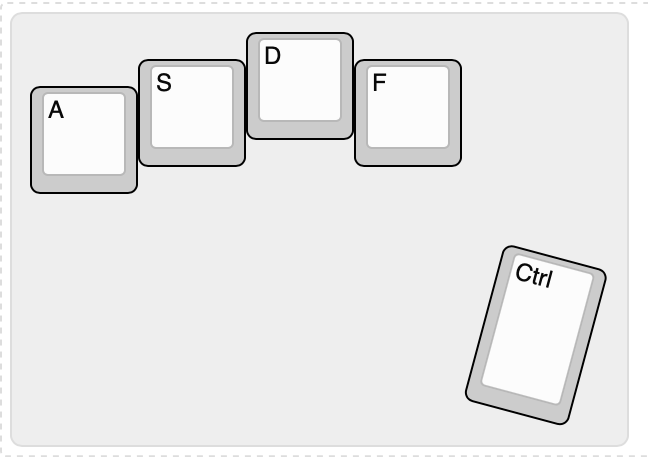

Akimbo, from the project README
From the project README

Main components on the Akimbo

ProMicro

Akimbo bill of materials (BOM)

7 components, 3 distinct parts.

QtyPartRefs
1
ProMicro
U1
1
Conn_01x06_Male
J1
5
SW_Push
SW1, SW2, SW3, SW4, SW5

Akimbo design files

The KiCad project lives in the Spaceboards/SpaceboardsHardware repository on GitHub; these links point at the commit this page was built from.

Akimbo: common questions

How big is the Akimbo PCB?

The Akimbo measures 95.4 × 64.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Akimbo?

7 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Akimbo design files?

From the Spaceboards/SpaceboardsHardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Akimbo design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which Spaceboards chose for the repository.
