Esp32-retro gaming console kicad
About the Esp32-retro gaming console kicad PCB
Esp32-retro gaming console kicad is an open source PCB design by SpeedUp-Tech, published on GitHub. It is a board, with 29 components from 18 distinct parts.
It belongs with the audio, displays & leds and power & battery designs in this gallery.
From the project
Editable hierarchical KiCad schematic for an ESP32 handheld retro gaming console with controls, MicroSD storage, display, USB-C power, and I2S audio, generated with SpeedUp for engineering review.

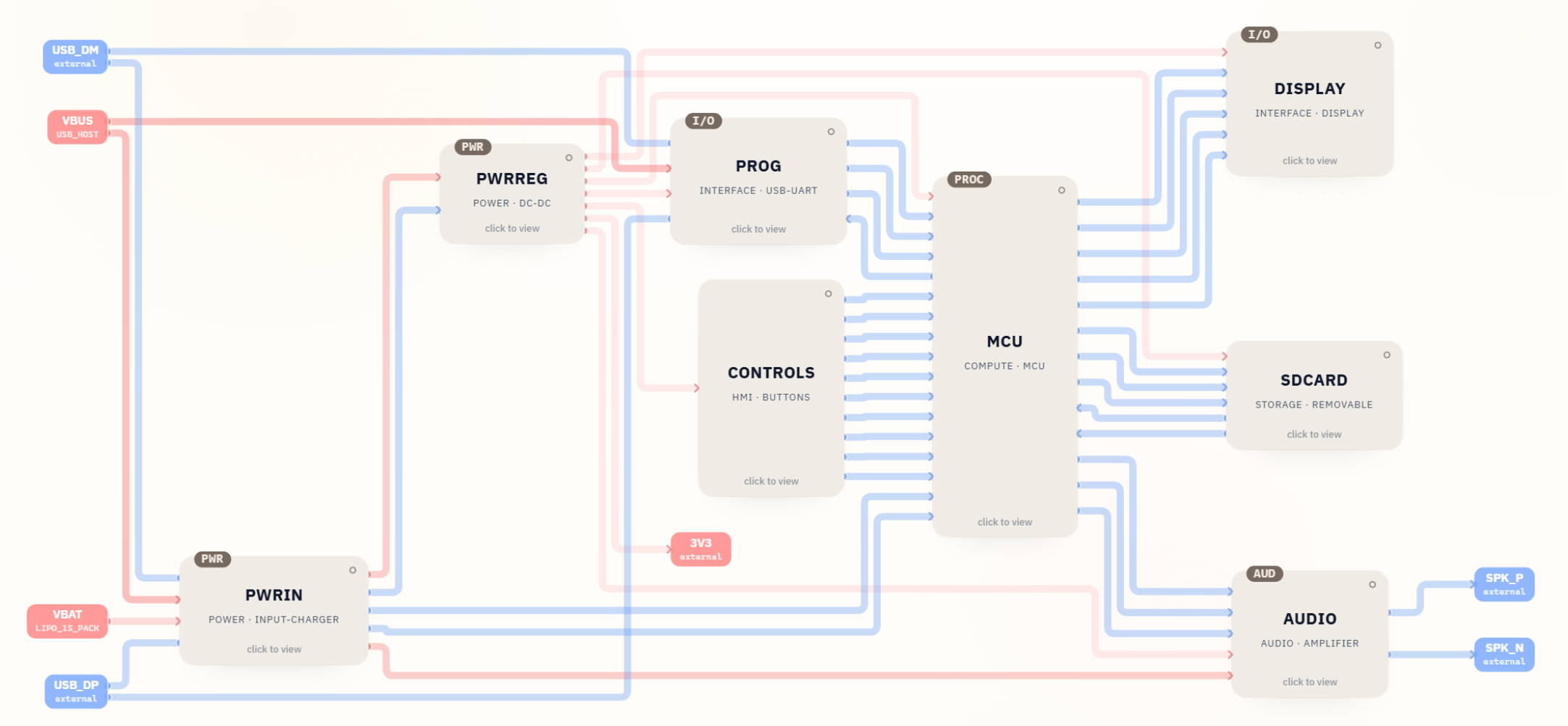

Generated with SpeedUp from a product requirement, this repository contains an editable hierarchical KiCad schematic for a handheld ESP32 retro gaming console prepared for engineering review. It brings the controls, display, microSD storage, USB-C and LiPo power, programming interface, and I2S audio path together in one reviewable project.
Download v0.1.2 · Open the live demo · Read the project case study
Esp32-retro gaming console kicad bill of materials (BOM)
29 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 10u/16V X5R | C_0805_2012Metric | PWI_C1, PWI_C3, PWI_C7 |
| 6 | 100n/16V X7R | C_0402_1005Metric | PWI_C2, PWI_C4, PWI_C6, PWI_C8, PWI_C9, PWI_C10 |
| 1 | 22u/16V X5R | C_0805_2012Metric | PWI_C5 |
| 1 | USBLC6-2SC6 | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BL | PWI_D1 |
| 1 | SEN0511D3 | SOD-323_L1.7-W1.3-LS2.5-RD | PWI_D2 |
| 1 | TYPE-C 16PIN 2MD(073) | USB-C-SMD_TYPE-C-16PIN-2MD-073 | PWI_J1 |
| 1 | PH-2ALT | CONN-SMD_2P-P2.00-V-PH-2ALT | PWI_J2 |
| 2 | 5.1k | R_0402_1005Metric | PWI_R1, PWI_R2 |
| 1 | 10k | R_0402_1005Metric | PWI_R3 |
| 1 | 1.8k | R_0402_1005Metric | PWI_R4 |
| 2 | 1.5k | R_0402_1005Metric | PWI_R5, PWI_R8 |
| 1 | 56.2k | R_0402_1005Metric | PWI_R6 |
| 1 | 3.09k | R_0402_1005Metric | PWI_R7 |
| 3 | 100k | R_0402_1005Metric | PWI_R9, PWI_R10, PWI_R11 |
| 1 | 0R | R_0805_2012Metric | PWI_R12 |
| 1 | K3-1290S-E1 | SW-SMD_K3-1290S-E1 | PWI_SW1 |
| 1 | BQ24232RGTR | VQFN-16_L3.0-W3.0-P0.50-TL-EP | PWI_U1 |
| 1 | XL-J1608SURC-06 | LED-SMD_L1.6-W0.8-RD-RED | PWI_D3 |
Esp32-retro gaming console kicad design files
The KiCad project lives in the SpeedUp-Tech/esp32-retro-gaming-console-kicad-schematic repository on GitHub; these links point at the commit this page was built from.
Esp32-retro gaming console kicad: common questions
How many components are on the Esp32-retro gaming console kicad?
29 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Esp32-retro gaming console kicad design files?
From the SpeedUp-Tech/esp32-retro-gaming-console-kicad-schematic repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.
Can I use the Esp32-retro gaming console kicad design in my own project?
The repository has no license, so all rights stay with SpeedUp-Tech. Use it as a reference, and ask the author before reusing the design.
