Hexy
About the Hexy PCB
Hexy is an open source PCB design by sqfmi, published on GitHub under the MIT license. It is a 2-layer board measuring 69.3 × 80 mm, with 96 components from 1 distinct parts.
It belongs with the displays & leds and iot & wireless designs in this gallery.
From the project
Hexy by SQFMI

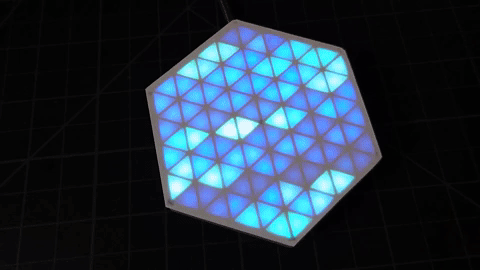

Inspired by Mukesh Sankhla's HexMatrix project, this is a smaller version using 96 3.5x3.5MM RGB LEDs (WS2812B-MINI)
Hexy bill of materials (BOM)
96 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 96 | WS2812B | WS2812B-MINI | D1, D2, D3, D4, D5, D6, D7, D8 +88 |
Hexy design files
The KiCad project lives in the sqfmi/hexy repository on GitHub; these links point at the commit this page was built from.
- Layouthexy.kicad_pcb
Hexy: common questions
How big is the Hexy PCB?
The Hexy measures 69.3 × 80 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hexy?
96 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the Hexy design files?
From the sqfmi/hexy repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Hexy design in my own project?
Yes, under the terms of its MIT license, which sqfmi chose for the repository.
