A500hddled PCB layout, top view — open source board by stas2k

About the A500hddled PCB

A500hddled is an open source PCB design by stas2k, published on GitHub. It is a 2-layer board measuring 13.5 × 22.3 mm, with 6 components from 6 distinct parts.

By type, the board carries 3 connectors, 2 resistors and 1 transistor.

It belongs with the retro computing and keyboards designs in this gallery.

From the project

Amiga A500 keyboard HDD LED mod

This repo contains Kicad sources for a board to light up the Disk LED on keyboard on HDD activity.

It is useful to users having an internal HDD controller.

The circuit implements the same schematic as the original A500 FDD LED circuit.

I use JLCPCB with the following options: * PCB Thickness: 1.2

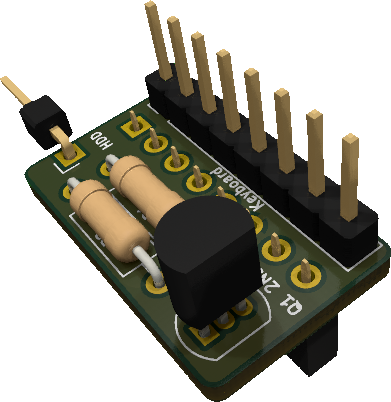

A500hddled, from the project README
From the project README

A500hddled bill of materials (BOM)

6 components, 6 distinct parts.

QtyPartRefs
1
2N3906
Q1
1
Male
J1
1
Female
J2
1
HDD
J3
1
4.7k
R1
1
10k
R2

A500hddled design files

The KiCad project lives in the stas2k/a500hddled repository on GitHub; these links point at the commit this page was built from.

A500hddled: common questions

How big is the A500hddled PCB?

The A500hddled measures 13.5 × 22.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the A500hddled?

6 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the A500hddled design files?

From the stas2k/a500hddled repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the A500hddled design in my own project?

The repository has no license, so all rights stay with stas2k. Use it as a reference, and ask the author before reusing the design.
