C128-mech keyboard adapter

steveed·c128-mech-keyboard-adapter

C128-mech keyboard adapter PCB layout, top view — open source board by steveed

About the C128-mech keyboard adapter PCB

C128-mech keyboard adapter is an open source PCB design by steveed, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 53.7 × 31.4 mm, with 1 components from 1 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

Keyboard adapter for the neo128 project to use with a standard c128.

A tiny crossover PCB that lets the [c128-keyboard / the-c128-keyboard-project] mechanical keyboard plug into an Open128 motherboard (or a stock Commodore 128), whose keyboard connector uses the original C128 keyboard pinout.

The mechanical keyboard board terminates in a 26-pin FFC (CN2, Molex 200528-0260, 1.0 mm) whose pin order is not the original C128 order. Open128's keyboard connector (CN5) is a DSUB-25 footprint carrying the original/stock C128 keyboard pinout. This adapter remaps one to the other on copper.

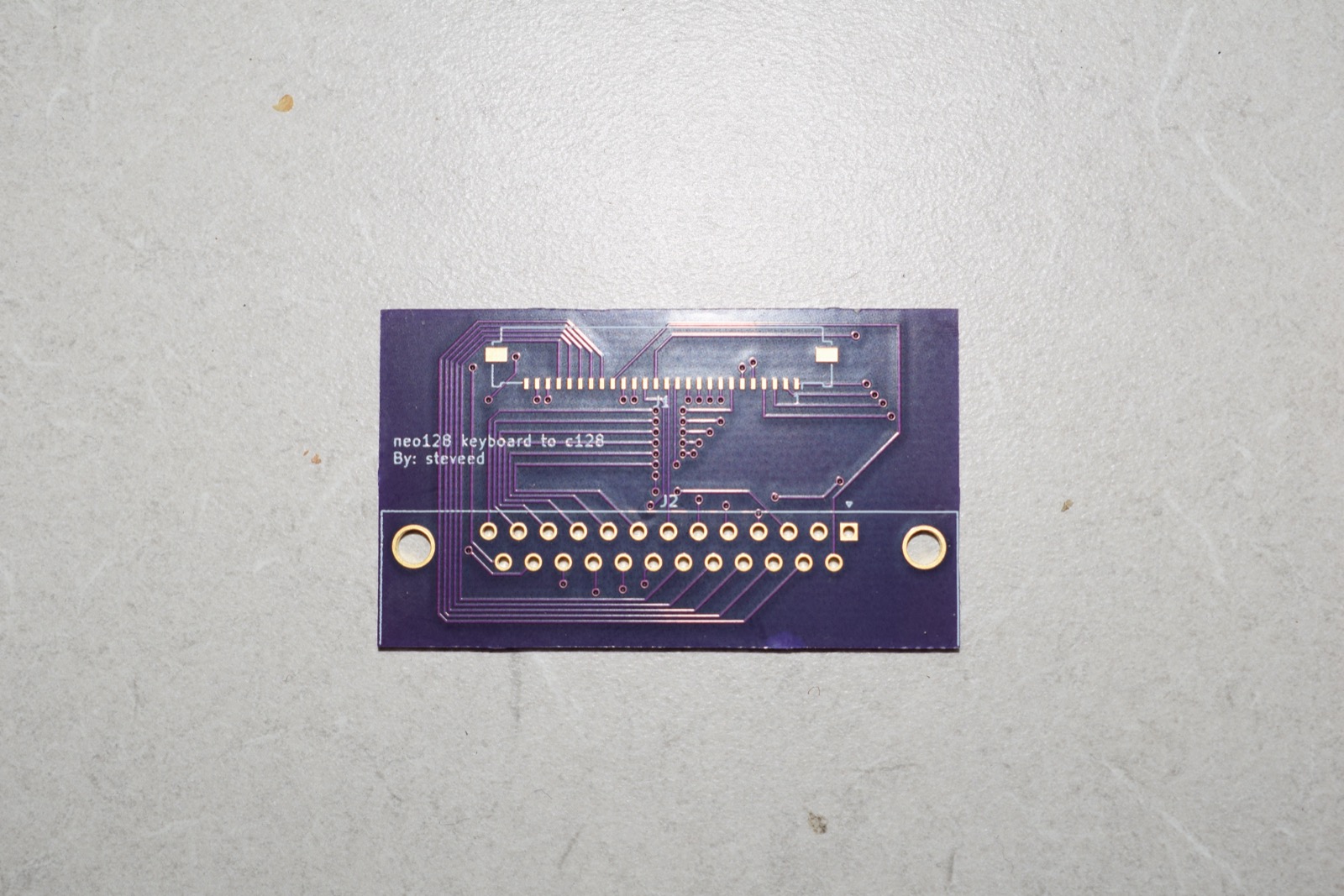

C128-mech keyboard adapter, from the project README
From the project README

C128-mech keyboard adapter bill of materials (BOM)

1 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
FFC26
J1

C128-mech keyboard adapter design files

The KiCad project lives in the steveed/c128-mech-keyboard-adapter repository on GitHub; these links point at the commit this page was built from.

C128-mech keyboard adapter: common questions

How big is the C128-mech keyboard adapter PCB?

The C128-mech keyboard adapter measures 53.7 × 31.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the C128-mech keyboard adapter?

1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the C128-mech keyboard adapter design files?

From the steveed/c128-mech-keyboard-adapter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the C128-mech keyboard adapter design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which steveed chose for the repository.
