About the BME688-ML-V1 PCB

BME688-ML-V1 is an open source STM32 PCB design by Strooom, published on GitHub. It is a 2-layer board measuring 25.4 × 25.4 mm, with 25 components from 9 distinct parts.

Its main chip is the STM32L431KBU6TR, from the STM32 family. Other key parts include the BME688. By type, the board carries 9 resistors, 8 capacitors, 3 ICs, 1 connector and 1 switch.

From the project

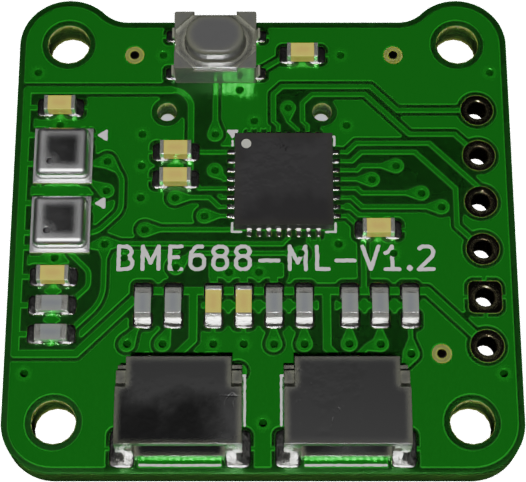

PCB For MachineLearning on the BME688

KiCAD design files for the BME688 Machine Learning PCB.

BME688-ML-V1, from the project README
From the project README

Main components on the BME688-ML-V1

STM32L431KBU6TRBME688

BME688-ML-V1 bill of materials (BOM)

25 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32L431KBU6TR
U1
2
BME688
Bosch Sensortec
U2, U3
1
notApplicable
CONN5
2
SM04B-SRSS-TB(LF)(DN)(P)
SM04B-SRSS-TB
CONN1, CONN2
1
MSD-1-A
CONN3
1
434133025816
SW1
6
KGM15AR71C104KT
C1, C2, C3, C6, C7, C8
2
C0603C475K8PAC7411
C4, C5
9
CR0603-FX-4701ELF
R1, R2, R3, R4, R5, R6, R7, R8 +1

BME688-ML-V1 design files

The KiCad project lives in the Strooom/BME688-ML-V1-PCB repository on GitHub; these links point at the commit this page was built from.

BME688-ML-V1: common questions

What microcontroller does the BME688-ML-V1 use?

The BME688-ML-V1 is built around the STM32L431KBU6TR, from the STM32 family.

How big is the BME688-ML-V1 PCB?

The BME688-ML-V1 measures 25.4 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BME688-ML-V1?

25 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BME688-ML-V1 design files?

From the Strooom/BME688-ML-V1-PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BME688-ML-V1 design in my own project?

The repository has no license, so all rights stay with Strooom. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the BME688-ML-V1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
