Anesidora

Styann·Anesidora·pcb/Anesidora/Anesidora.kicad_pcb

Anesidora PCB layout, top view — open source board by Styann

About the Anesidora PCB

Anesidora is an open source PCB design by Styann, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 305 × 123.5 mm, with 182 components from 17 distinct parts.

By type, the board carries 87 diodes, 69 switches, 18 capacitors, 6 resistors and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

A keyboard PCB for the Raspberry pi pico and a custom firmware.

A 65% keyboard PCB for the Raspberry pi pico made with KiCad 8, and a custom firmware.

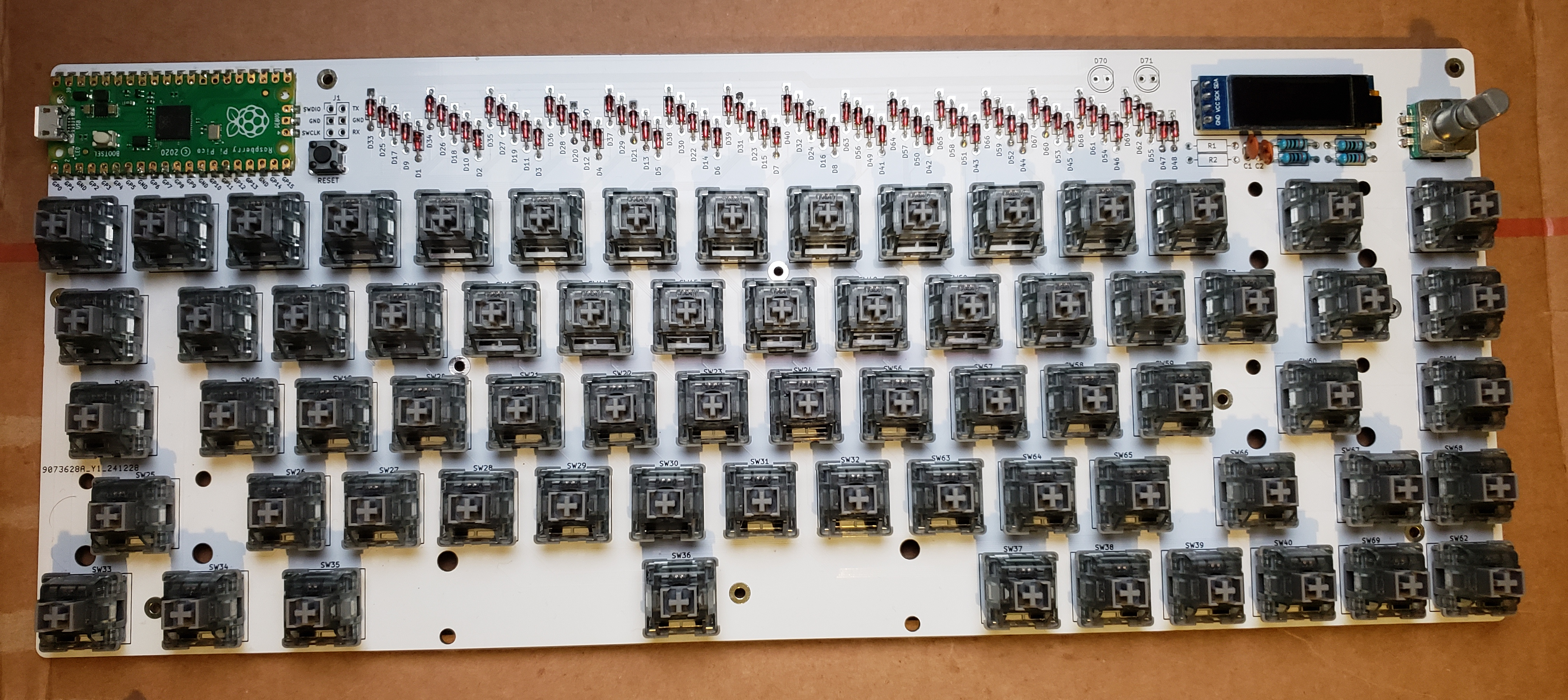

Anesidora, from the project README
From the project README

Anesidora bill of materials (BOM)

182 components, 17 distinct parts.

QtyPartRefs
1
Conn_01x06_Socket
J1
1
~
SSD1306_128x32_i2c1
57
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +49
2
SW_Push_45deg
SW9, SW54
2
SW_Push_45deg
SW17, SW66
2
SW_Push_45deg
SW25, SW60
3
SW_Push_45deg
SW33, SW34, SW35
1
SW_Push_45deg
SW36
1
SW_Push_45deg
SW46
1
RotaryEncoder_Switch
SW48
69
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +61
2
LED
D70, D71
16
WS2812B
D72, D73, D74, D75, D76, D77, D78, D79 +8
2
0.01 µf
C1, C2
16
100nF
C3, C4, C5, C6, C7, C8, C9, C10 +8
2
390
R1, R2
4
10k
R3, R4, R5, R6

Anesidora design files

The KiCad project lives in the Styann/Anesidora repository on GitHub; these links point at the commit this page was built from.

Anesidora: common questions

How big is the Anesidora PCB?

The Anesidora measures 305 × 123.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Anesidora?

182 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Anesidora design files?

From the Styann/Anesidora repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Anesidora design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
