HotBox PCB layout, top view — open source AVR/Arduino board by sundr007

About the HotBox PCB

HotBox is an open source AVR/Arduino PCB design by sundr007, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 100 × 100 mm, with 29 components from 19 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the UA78M33CDCYR and DA04-11CGKWA. By type, the board carries 6 resistors, 5 capacitors, 3 modules, 3 transistors, 3 connectors and 2 ICs.

It belongs with the sensors designs in this gallery.

From the project

A benchtop thermal Chamber used to test electronics at elevated ambient temperature. Kicad PCB, STM32 firmware, OpenScad Mechanical

I use this when I'm testing electronics on my benchtop. I put this box on top of what I'm testing to raise the ambient temperature. This is convenient because I can leave my probes and other wires hooked up as is. This box can raise the ambient temperature up to 55C.

The design consists of a finger edge laser cut acrylic box that has a circuit board assembly mount in the top center of it. I put foam on the bottom edge of the box so it can nicely sit on top of wires and cables without air gaps.

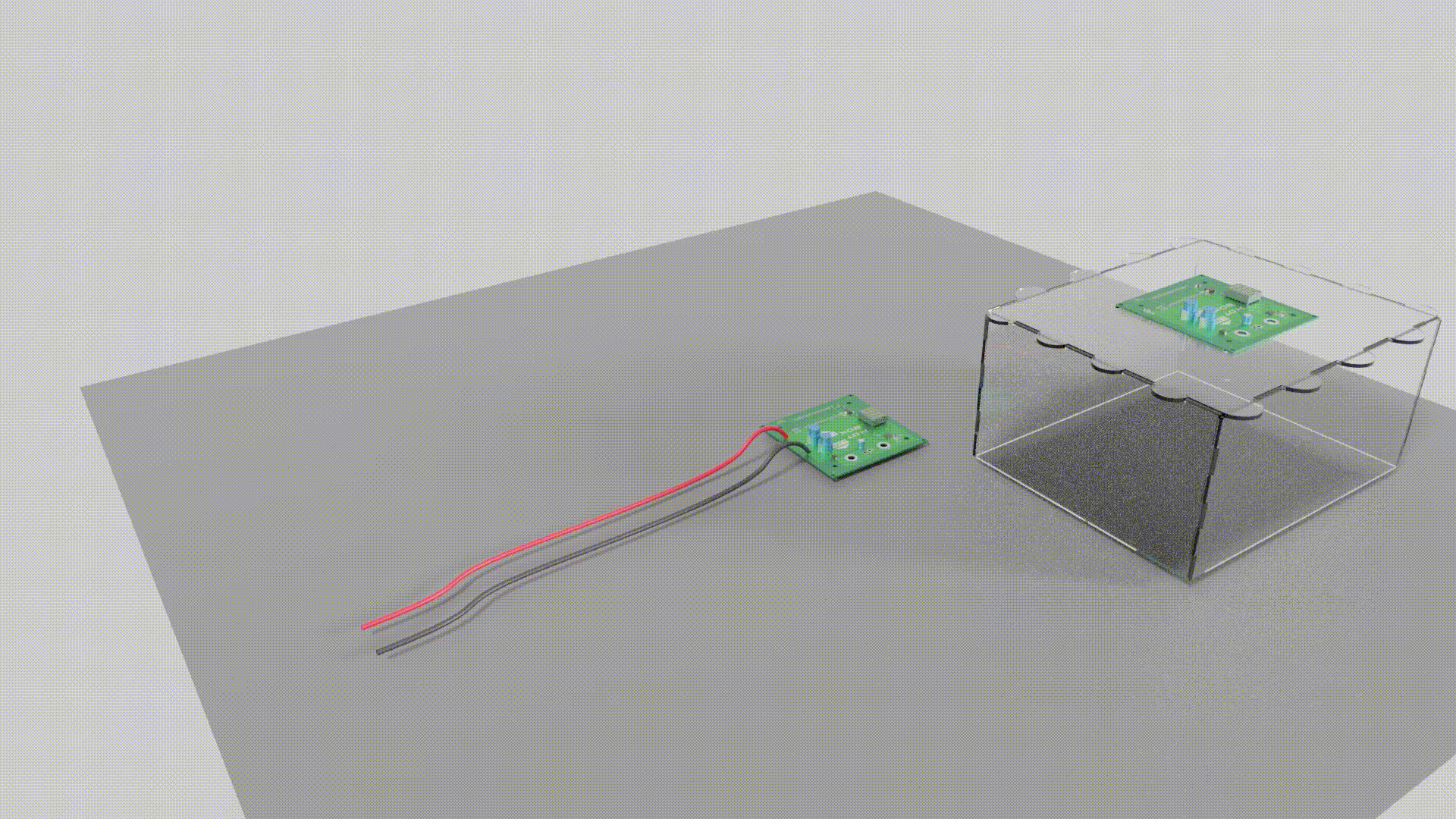

HotBox, from the project README
From the project README

Main components on the HotBox

UA78M33CDCYRDA04-11CGKWAArduino_Nano_v3.x

HotBox bill of materials (BOM)

29 components, 19 distinct parts.

QtyPartRefs
1
UA78M33CDCYR
U1
1
DA04-11CGKWA
U2
1
Arduino_Nano_v3.x
A1
1
Fan_4pin
M1
1
Fan
M2
1
BSC028N06LS3
Q1
1
PUMB11,115
Q2
1
PUMD3,115
Q4
1
Conn_01x02
J1
2
Conn_01x01
J2, J3
1
Peltier_Element
PE1
2
SW_Push_4PIN
SW1, SW2
2
Thermistor_NTC
TH1, TH2
1
LED
D1
1
D
D2
4
0.1uF
C1, C2, C3, C5
1
10uF
C4
4
10K
R2, R4, R14, R15
2
510
RN1, RN2

HotBox design files

The KiCad project lives in the sundr007/HotBox repository on GitHub; these links point at the commit this page was built from.

HotBox: common questions

What microcontroller does the HotBox use?

The HotBox is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the HotBox PCB?

The HotBox measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HotBox?

29 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the HotBox design files?

From the sundr007/HotBox repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the HotBox design in my own project?

Yes, under the terms of its GPL-2.0 license, which sundr007 chose for the repository.

Can I test firmware for the HotBox without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
