Svts hackpad
About the Svts hackpad PCB
Svts hackpad is an open source PCB design by svt-demon, published on GitHub. It is a 2-layer board measuring 95 × 48 mm, with 6 components from 3 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 5 switches and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project
A four-key macropad with a rotary encoder, custom PCB, case, and KMK firmware.
A custom four-key macropad with a rotary encoder, powered by a Seeed Studio XIAO RP2040. It uses KMK firmware and connects to a computer through USB-C.

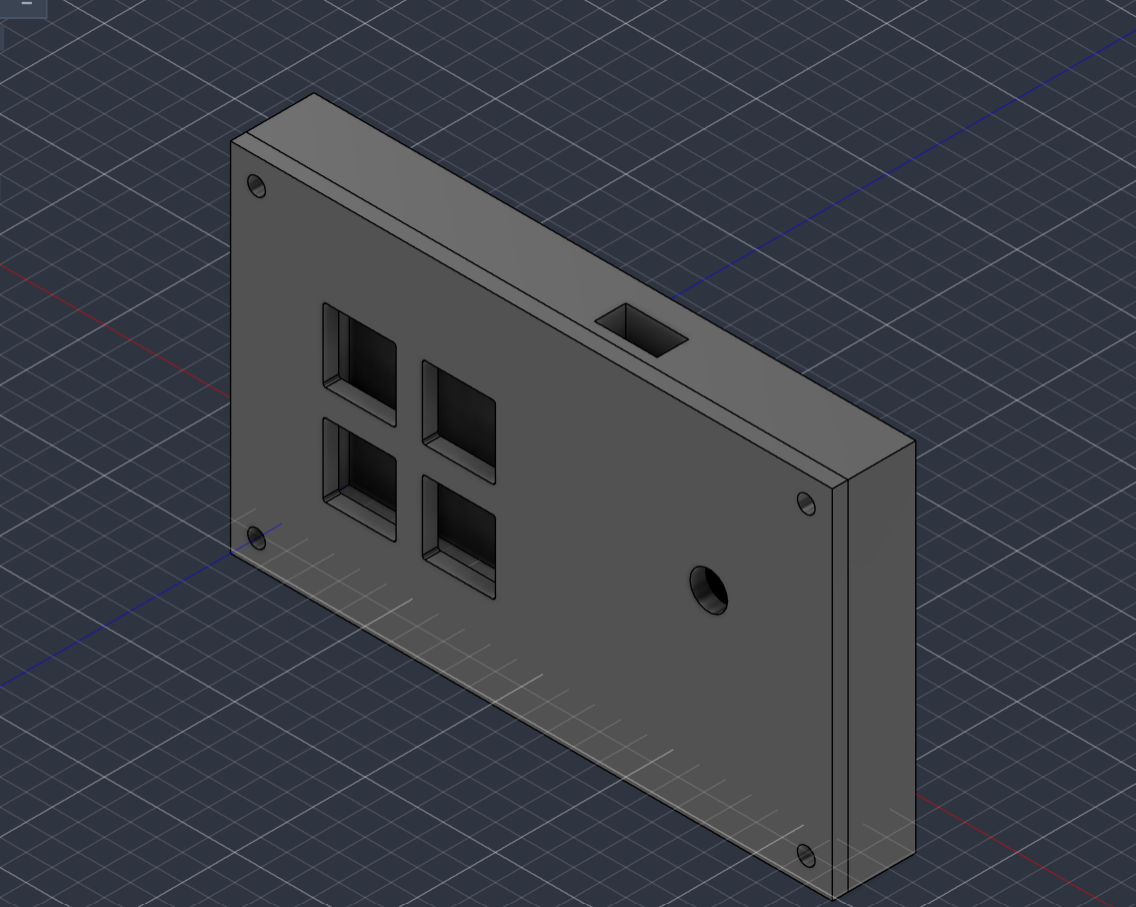

- Four programmable mechanical keys - Rotary encoder for volume control - Pressable encoder for muting audio - Custom two-layer PCB - Custom 3D-printed case and top plate - USB-C connection - KMK firmware written in Python
Main components on the Svts hackpad
Svts hackpad bill of materials (BOM)
6 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 4 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW5 |
Svts hackpad design files
The KiCad project lives in the svt-demon/svts-hackpad repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/MyHackpad.kicad_pcb
- SchematicPCB/MyHackpad.kicad_sch
- BOMBOM.csv
Svts hackpad: common questions
How big is the Svts hackpad PCB?
The Svts hackpad measures 95 × 48 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Svts hackpad?
6 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Svts hackpad design files?
From the svt-demon/svts-hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Svts hackpad design in my own project?
The repository has no license, so all rights stay with svt-demon. Use it as a reference, and ask the author before reusing the design.
