Pinky4 PCB layout, top view — open source board by tamanishi
Simulate this board

About the Pinky4 PCB

Pinky4 is an open source PCB design by tamanishi, published on GitHub under the MIT license. It is a 2-layer board measuring 139 × 120 mm, with 73 components from 10 distinct parts.

Other key parts include the ProMicro. By type, the board carries 33 switches, 32 diodes, 3 connectors, 2 resistors, 1 IC and 1 jumper.

It belongs with the keyboards designs in this gallery.

From the project

A split 4 x 7 vertically staggered keys and 4 thumb keys keyboard.

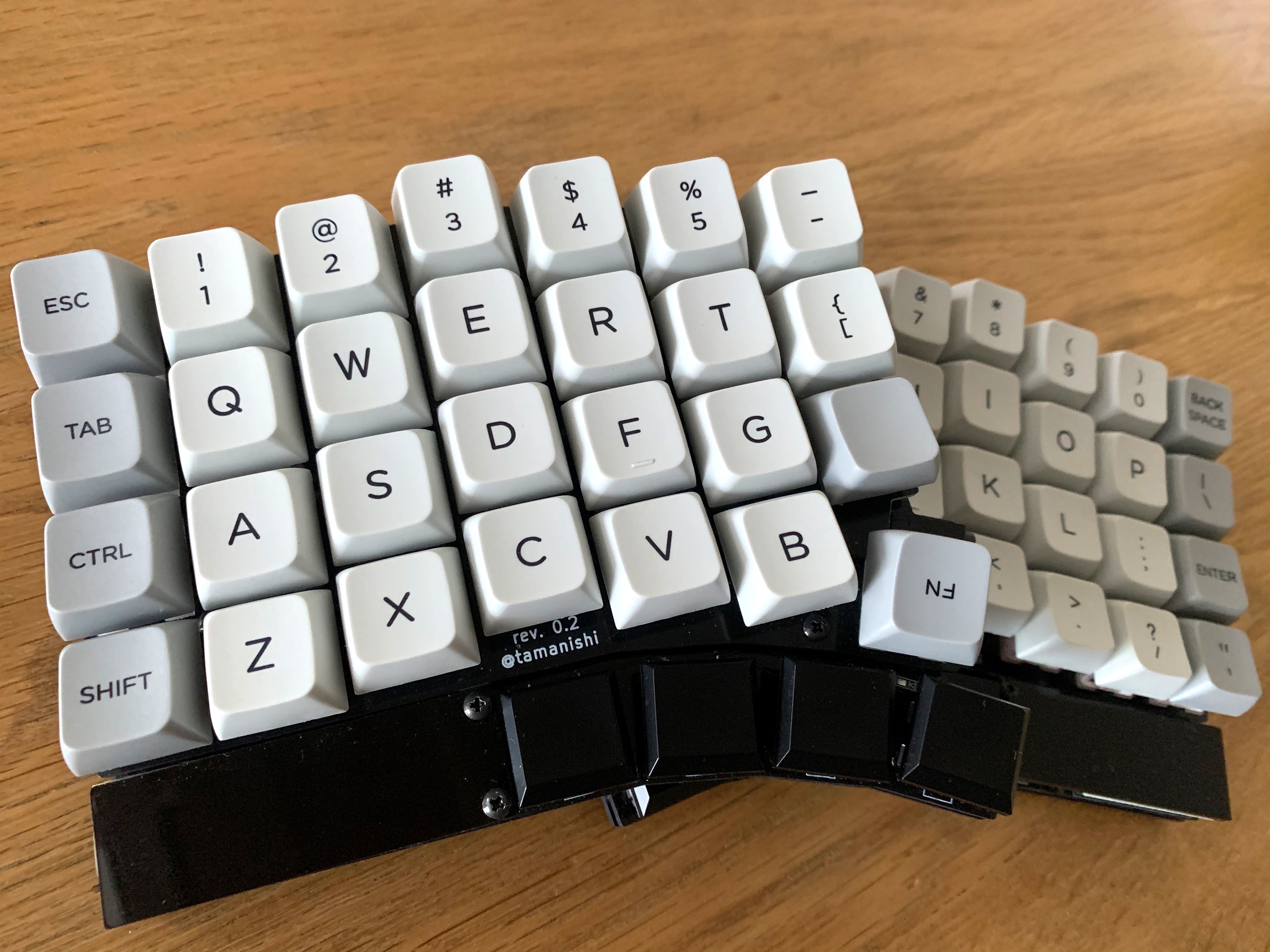

A split 4 x 7 vertically staggered keys and 4 thumb keys keyboard. An idea is inspired from crkbd, Lily58, Ergo42 and Helix. Pinky4 is designed for PoC.

Pinky4, from the project README
From the project README

Main components on the Pinky4

ProMicro

Pinky4 bill of materials (BOM)

73 components, 10 distinct parts.

QtyPartRefs
1
ProMicro
U1
1
MJ-4PP-9
J1
2
i2c-pin
P1, P2
1
VAL**
HOLE_M2
1
—
JP1
1
RESET_SW
SW1
28
SW_PUSH
SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 +20
4
SW_PUSH
SW18, SW23, SW28, SW33
32
D
D1, D2, D3, D4, D5, D6, D7, D8 +24
2
R
R1, R2
