Toolhead
About the Toolhead PCB
Toolhead is an open source PCB design by tanaes, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 17.5 × 17 mm, with 6 components from 6 distinct parts.
By type, the board carries 2 jumpers, 2 resistors, 1 connector and 1 diode.
From the project

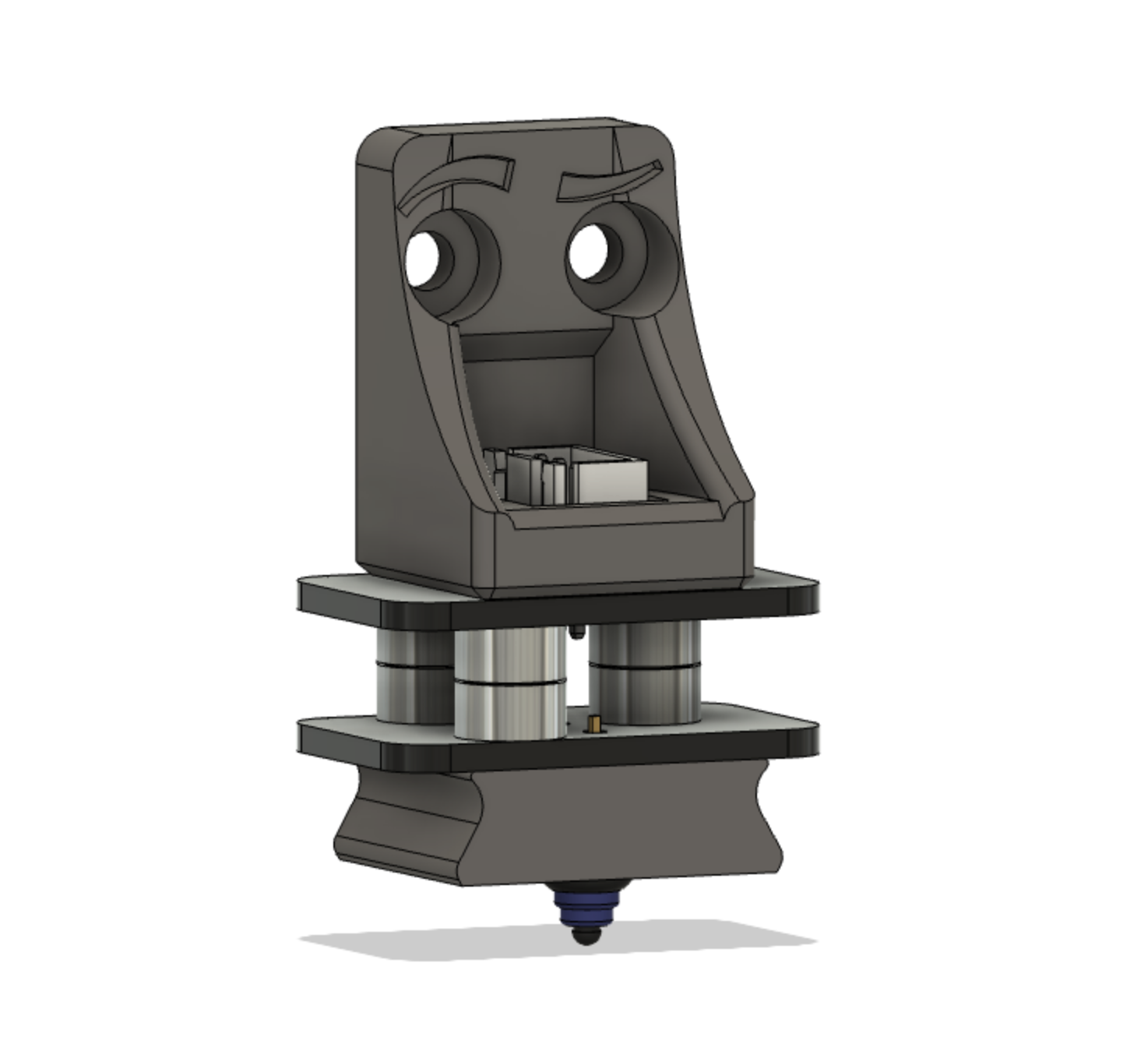

Based on two legends: the Klicky Probe by JosAr and the Euclid Probe
Based on two legends: the Klicky Probe by JosAr and the Euclid Probe
This design attempts to replicate Klicky as closely as possible using a PCB-based design, to try and achieve the following aims:
1. Reduce the problem of magnets working lose or seating poorly in printed parts 2. Increase the current being switched, which might possibly result in a longer switch lifetime. 3. Add LEDs.
Toolhead bill of materials (BOM)
6 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | B3B-XH-A(LF)(SN) B3B-XH-A_LF__SN_ JST Sales America Inc. | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J1 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP1 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP2 |
| 1 | LTST-C191TBKT Lite-On Inc. | D_0603_1608Metric | D1 |
| 1 | C4190 2K1 | R_0603_1608Metric | R1 |
| 1 | C23179 200 | R_0603_1608Metric | R2 |
Toolhead design files
The KiCad project lives in the tanaes/whopping_Voron_mods repository on GitHub; these links point at the commit this page was built from.
Toolhead: common questions
How big is the Toolhead PCB?
The Toolhead measures 17.5 × 17 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Toolhead?
6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Toolhead design files?
From the tanaes/whopping_Voron_mods repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Toolhead design in my own project?
Yes, under the terms of its GPL-3.0 license, which tanaes chose for the repository.
